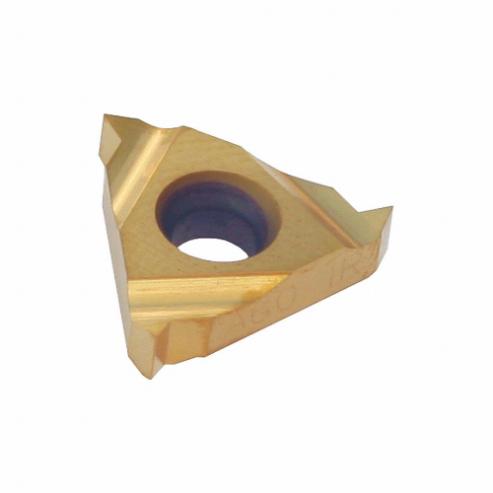

DORIAN 11IR-A60-DVP656 Indexable Thread Turning Insert, Right Hand, 0.2500 Inch Inscribed Circle
Item: CJ2PNEModel: 11IR-A60-DVP656Cross Ref: 56MA29
7 In Stock
Ships within 2 days via
10.00% off
€35.31 /unit
This product can only be shipped in multiples of 5Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | C5-C6 |
| Clearance Angle | 60° |
| Coating Process | PVD |
| Coolant Fed | Coolant Through |
| Cutting Application | Threading |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 1/4" |
| Cutting Height | 11 mm |
| Features | Resistance To Thermal And Mechanical Shock Pvd Tin Coating |
| Feed Type | 70 mm To 180 mm Sfm |
| Finish - Machining | Tin |
| Included Angle | 60° |
| Inscribed Circle | 1/4" |
| Insert Length | 11 mm |
| Iso Number | P15-P35 |
| Manufacturer Grade | Grade DVP656 |
| Material Grade - Machining | Grade DVP656 |
| Max. Thread Pitch | 1.5 |
| Max. Threads Per Inch | 48 |
| Measurement System | Fractional Inch |
| Min. Thread Pitch | 0.5 mm |
| No. Of Cutting Edges | 3 |
| Number Of Coolant Holes | 2 |
| Primary Material Application | Alloy Steel, Carbon Steel, Stainless Steel |
| Primary Material Application Iso Code | P |
| Rake | Positive |
| Side-to-cutting Tip | 0.9 mm |
| Thread Direction | Right Hand |
| Thread Height Difference | 0.9 mm |
| Thread Pitch | 0.5 |
| Thread Profile Type | Partial Profile |
| Threading Location | Internal Threading |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 4.06 |
| Ship width (cm) | 3.05 |
| HS code | 7318190000 |
| Country of Origin | US |
Product Variants
| Product | Model | Cutting Direction | Inscribed Circle | Clearance Angle | Number Of Cutting Edges | Insert Code | Insert Style | Thickness | Corner Radius | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TNMG-321-UGN-DUC25UT | Neutral | 3/8" | 0° | 3 | TNMG321 | TNMG | 1/8" | 0.0156" | €15.61 | |
 |
TPGH-21.51-UEN-DPP30GT | Neutral | 1/4" | 11° | 3 | TPGH21.51 | TPGH | 0.093" | 0.0156" | €18.80 | |
 |
CCMT-32.52-PEM-DPC15HT | Neutral | 3/8" | 7° | 1 | CCMT332 | CCMT | 3/16" | 1/32" | €14.13 | |
 |
CCMT-32.51-PEF-DPC25UT | Neutral | 3/8" | 7° | 1 | CCMT331 | CCMT | 3/16" | 1/64" | €13.45 | |
 |
CCGT-21.51-UEU-DUP15VT | Neutral | 1/4" | 7° | 1 | CCGT21.51 | CCGT | 3/32" | 1/64" | €19.80 | |
 |
CCGT-32.51-UEXR-DPC35RT | Right Hand | 3/8" | 7° | 1 | CCGT331 | CCGT | 3/16" | 1/64" | €35.27 | |
|
CCGT-32.52-UEXR-DPC25UT | Right Hand | 3/8" | 7° | 1 | CCGT332 | CCGT | 3/16" | 1/32" | €35.27 |
