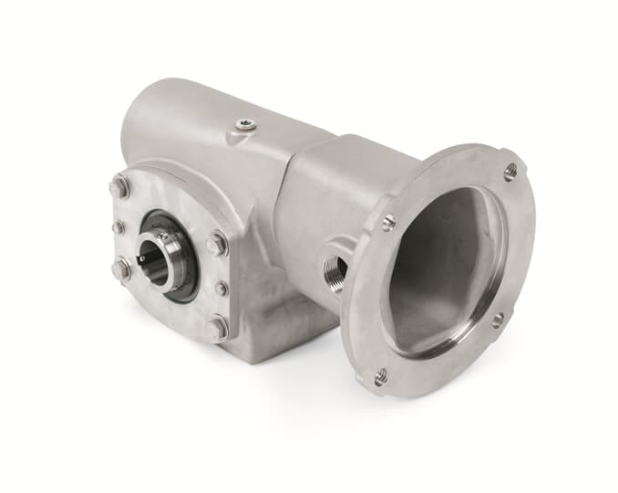

BALDOR / DODGE SS26A10LR18 Stainless Steel TIGEAR-2 Reducer
Get it by Tuesday, Aug 25
€4,525.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base To Output Center Height | 2.87" |
| Case Size | 26 |
| Center Distance | 2.63" |
| Center To End Of Shaft Distance | 5.63" |
| Gearbox Component Type | Gearbox |
| Housing Material | Stainless Steel |
| Input Flange | 180TC |
| Input Hp | 4 83/100 hp |
| Input Style | 3 Piece Coupled |
| Lubrication Type | PAG, Standard Temperature |
| Motor Compatibility | NEMA Motor, 180TC Frame |
| Mounting Bolt Pattern Length | 6.38" |
| Mounting Bolt Pattern Width | 3.38" |
| Nominal Ratio | 10 |
| Output Hp | 4.37 hp |
| Output Shaft Center To Input Motor Mounting Face Distance | 9 9/25" |
| Output Style | Left, Right |
| Overhung Load | 1610 lbf. |
| Paint/coating | No |
| Rated Torque Output | 1576 lbs.-in. |
| Ratio | 10:1 |
| Seal Type | Two Piece Harsh Duty |
| Shaft Dia. | 1 1/4" |
| Shaft Dia. Output | 1 1/8" |
| Shaft Length Output | 2.67" |
| Shaft Output Type | Double Solid |
| Suitable For Washdown | Yes |
| Thermal Hp | 5.61 hp |
Shipping Info:
| Ship weight (kg) | 31.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Output Hp | Nominal Ratio | Shaft Dia. | Mounting Bolt Pattern Width | Thermal Hp | Rated Torque Output | Mounting Bolt Pattern Length | Output Shaft Center To Input Motor Mounting Face Distance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

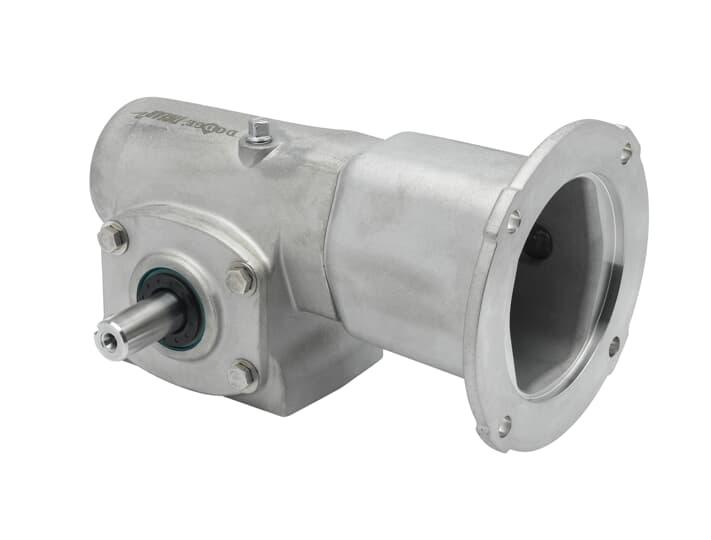

| SS26A60L56 | 18/25 hp | 60 | 1 1/4" | 6.38" | 1.57 hp | 1547 lbs.-in. | 0.38" | 8.63" | €4,005.50 | |
| SS26A05HA18 | 6.93 hp | 5 | 1.688" | 6.38" | 8.79 hp | 1247 lbs.-in. | 0.38" | 9 9/25" | €5,429.42 | |
| SS26A07H18 | 5.47 hp | 7 | 1.438" | 6.38" | 6.89 hp | 1458 lbs.-in. | 0.38" | 9 9/25" | €5,429.42 | |
| SS26A18HA18 | 2.63 hp | 18 | 1.688" | 6.38" | 3.73 hp | 1708 lbs.-in. | 0.38" | 9 9/25" | €7,404.61 | |
| SS26A05H18 | 6.93 hp | 5 | 1.438" | 6.38" | 8.79 hp | 1247 lbs.-in. | 0.38" | 9 9/25" | €5,429.42 | |
| SS26A12H18 | 3.63 hp | 12 | 1.438" | 6.38" | 4 18/25 hp | 1654 lbs.-in. | 0.38" | 9 9/25" | €5,429.42 | |
| SS26A15H18 | 3 4/25 hp | 15 | 1.438" | 6.38" | 4 3/20 hp | 1708 lbs.-in. | 0.38" | 9 9/25" | €5,429.42 |
