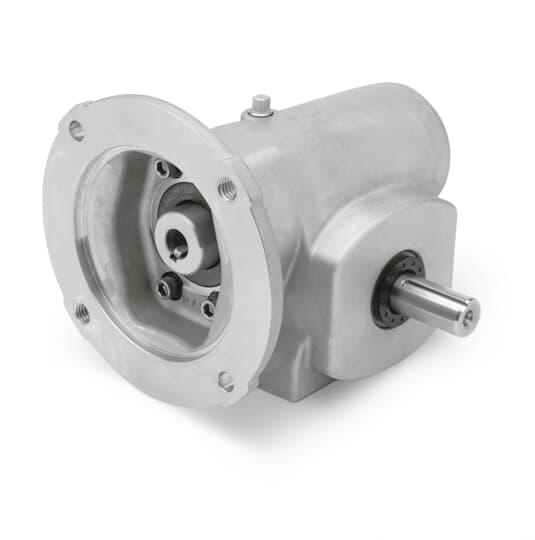

BALDOR / DODGE SS23Q20L14 Stainless Steel TIGEAR-2 Worm Gear Speed Reducer
Get it by Tuesday, Dec 23
€3,012.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base To Output Center Height | 2 1/2" |
| Case Size | 23 |
| Center Distance | 2.31" |
| Center To End Of Shaft Distance | 5.14" |
| Gearbox Component Type | Gearbox |
| Housing Material | Stainless Steel |
| Hp Rating Input | 2 hp |
| Hp Rating Output | 1 16/25 hp |
| Input Flange | 140TC |
| Input Style | Quill |
| Lubrication Type | PAG, Standard Temperature |
| Motor Compatibility | NEMA Motor, 140TC Frame |
| Mounting Bolt Pattern Length | 5" |
| Mounting Bolt Pattern Width | 2 22/25" |
| Nominal Ratio | 20 |
| Output Shaft Center To Input Motor Mounting Face Distance | 5.47" |
| Output Style | Left |
| Overhung Load | 1610 lbf. |
| Paint/coating | No |
| Rated Torque Output | 1178 lbs.-in. |
| Ratio | 20:1 |
| Seal Type | Two Piece Harsh Duty |
| Shaft Dia. | 1 1/4" |
| Shaft Dia. Output | 1 1/8" |
| Shaft Length Output | 2.18" |
| Shaft Output Type | Left Side Solid |
| Suitable For Washdown | Yes |
| Thermal Hp Rating | 2 31/50 hp |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Shaft Dia. | Overhung Load | Gear Ratio | Housing Material | Seal Type | Gear Box | Output Type | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SS23Q12H56 | 1.438" | 1610 lbf. | 12 | Stainless Steel | Two Piece Harsh Duty | 23 | Hollow | No | €4,093.46 | |
| SS23Q40HA56 | 1 1/2" | 1610 lbf. | - | Stainless Steel | Two Piece Harsh Duty | - | - | - | €4,093.46 | |
| SS23Q20H56 | 1.438" | 1610 lbf. | - | Stainless Steel | Two Piece Harsh Duty | - | - | - | €4,093.46 | |
| SS23Q15HA56 | 1 1/2" | 1610 lbf. | - | Stainless Steel | Two Piece Harsh Duty | - | - | - | €4,093.46 | |
| SS23Q30HA56 | 1 1/2" | 1610 lbf. | - | Stainless Steel | Two Piece Harsh Duty | - | - | - | €4,093.46 | |
| SS23Q60H56 | 1.438" | 1610 lbf. | - | Stainless Steel | Two Piece Harsh Duty | - | - | - | €4,093.46 | |
| SS23Q20R14 | 1 1/4" | 1610 lbf. | - | Stainless Steel | Two Piece Harsh Duty | - | - | - | €3,012.05 |
