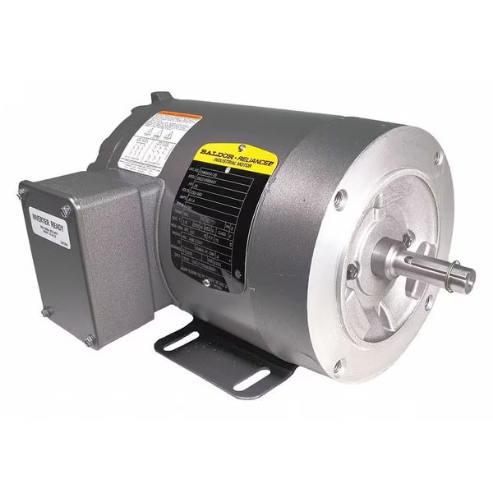

BALDOR / DODGE CNM3454/35 Three Phase Enclosed Motor, 230/460V, 1800 RPM, 60 Hz, 0.25 hp, TENV, 56C Frame
Get it by Thursday, Dec 25
10.00% off
€987.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Indicator | Rigid |
| Bearing Drive End | 6205 |
| Bearing Opp. Drive End | 6203 |
| Conduit Box Material | Steel |
| Design | B |
| Duty Cycle | Continuous |
| Efficiency | 80% |
| Enclosure Type | Tenv |
| Flange Efficiency | 80% |
| Frame Group | 56C |
| Frame Material | Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 0.8/0.4A |
| Hp Rating Output | 1/4 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Code | Inverter Duty |
| Kva Code | M |
| Manufacturers Warranty Length | 3 yrs. |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Weight | 31 |
| Mounting Position | F1 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Output Hp | .25 |
| Overall Length | 11.06" |
| Phase | 3 Phase |
| Power Factor | 42 |
| Product Datasheet | baldor-motor-cnm3454-35.pdf |
| Pulley Face Code | C Face |
| Rating | 40C Amb-Cont |
| Rpm | 1750 RPM |
| Rpm Range | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed Code | Single Speed |
| Synchronous Speed | 1800 RPM |
| Voltage | 230/460V |
| Weight | 30 lbs. |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 11.24 |
| Ship length (cm) | 28.09 |
| Ship width (cm) | 11.24 |
| Country of Origin | US |
Product Details:
- KVA-Code: M
