BALDOR / DODGE 40S20LWP TIGEAR-2 Reducer With White Paint
Get it by Tuesday, Dec 23
€5,222.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base To Output Center Height | 4 11/25" |
| Case Size | 40 |
| Center Distance | 4" |
| Center To End Of Shaft Distance | 8 3/25" |
| Color | White |
| Finish | White Epoxy |
| Gearbox Component Type | Gearbox |
| Housing Material | Cast Iron |
| Hp Rating Input | 7 3/4 hp |
| Hp Rating Output | 6.69 hp |
| Input Style | Separate, Solid Input Shaft |
| Lubrication Type | PAG, Standard Temperature |
| Mounting Bolt Pattern Length | 8 1/2" |
| Mounting Bolt Pattern Width | 5" |
| Nominal Ratio | 20 |
| Output Style | Left |
| Overhung Load | 4300 lbf. |
| Rated Torque Output | 4822 lbs.-in. |
| Ratio | 20:1 |
| Seal Type | Single Lip Contact |
| Shaft Dia. | 1 7/8" |
| Shaft Dia. Input | 1 1/8" |
| Shaft Length Input | 1.81" |
| Shaft Length Output | 3 19/25" |
| Shaft Output Type | Left Side Solid |
| Suitable For Washdown | No |
| Thermal Hp Rating | 8 7/50 hp |
Shipping Info:
| Ship weight (kg) | 60.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overhung Load | Gear Ratio | Finish | Output Type | Shaft Dia. | Housing Material | Seal Type | Gear Box | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

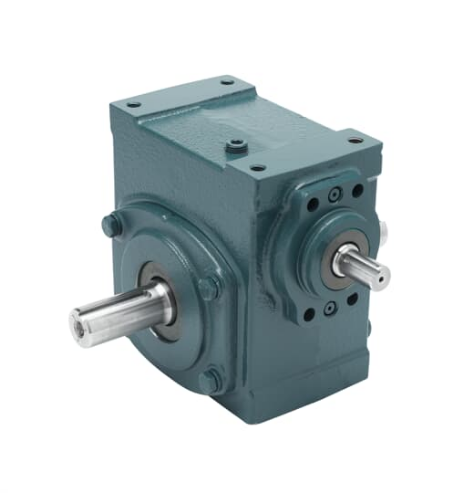

40S05LR | 2860 lbf. | 5 | - | Double Solid | 1 7/8" | Cast Iron | Single Lip Contact | 40 | €5,722.54 | |
 |
40S07R | 3280 lbf. | 7 | - | Right Solid B | 1 7/8" | Cast Iron | Single Lip Contact | 40 | €5,060.88 | |
|
40S10R | 3640 lbf. | 10 | - | Right Solid B | 1 7/8" | Cast Iron | Single Lip Contact | 40 | €5,060.88 | |
 |
40S15L | 4190 lbf. | 15 | - | Left Solid A | 1 7/8" | Cast Iron | Single Lip Contact | 40 | €5,060.88 | |
|
40S15R | 4190 lbf. | 15 | - | Right Solid B | 1 7/8" | Cast Iron | Single Lip Contact | 40 | €5,060.88 | |
|
40S25L | 4300 lbf. | 25 | - | Left Solid A | 1 7/8" | Cast Iron | Single Lip Contact | 40 | €5,060.88 | |
|
40S25R | 4300 lbf. | 25 | - | Right Solid B | 1 7/8" | Cast Iron | Single Lip Contact | 40 | €5,060.88 |
