BALDOR / DODGE 35QZ20L18WP TIGEAR-2 E-Z KLEEN White Worm Gear Speed Reducer
Get it by Monday, Aug 24
€5,144.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base To Output Center Height | 3.99" |
| Case Size | 35 |
| Center Distance | 3 1/2" |
| Center To End Of Shaft Distance | 7.06" |
| Color | White |
| Finish | White Epoxy |
| Gearbox Component Type | Gearbox |
| Housing Material | Cast Iron |
| Input Flange | 180TC |
| Input Hp | 5 79/100 hp |
| Input Style | Quill |
| Lubrication Type | PAG, Standard Temperature |
| Motor Compatibility | NEMA Motor, 180TC Frame |
| Mounting Bolt Pattern Length | 7 1/2" |
| Mounting Bolt Pattern Width | 4" |
| Nominal Ratio | 20 |
| Output Hp | 5.03 hp |
| Output Shaft Center To Input Motor Mounting Face Distance | 7.55" |
| Output Style | Left |
| Overhung Load | 2760 lbf. |
| Rated Torque Output | 3620 lbs.-in. |
| Ratio | 20:1 |
| Seal Type | Two Piece Harsh Duty |
| Shaft Dia. | 1 1/2" |
| Shaft Length Output | 3.51" |
| Shaft Output Type | Left Side Solid |
| Suitable For Washdown | Yes |
| Thermal Hp | 5.97 hp |
Shipping Info:
| Ship weight (kg) | 49.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Output Hp | Color | Nominal Ratio | Shaft Dia. | Thermal Hp | Rated Torque Output | Output Shaft Center To Input Motor Mounting Face Distance | Output Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

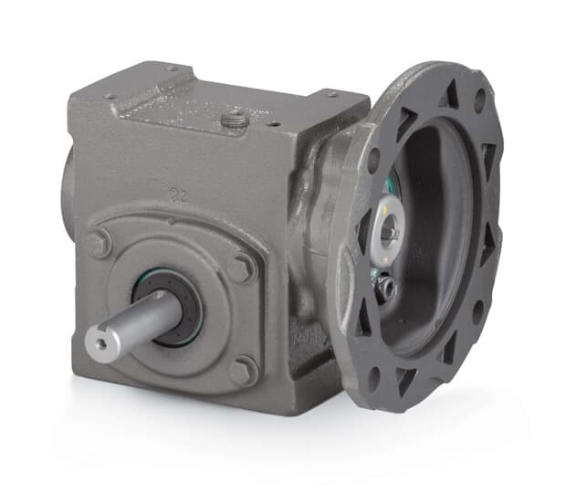

35QZ15L14 | 6 33/50 hp | Green | 15 | 1 1/2" | 7 14/25 hp | 3599 lbs.-in. | 7.09" | Left | €4,540.73 | |
 |
35QZ20H14 | 5.03 hp | Green | 20 | 1.938" | 5.97 hp | 3620 lbs.-in. | 7.09" | Hollow Bore | €5,577.27 | |
|
35QZ20L18 | 5.03 hp | Green | 20 | 1 1/2" | 5.97 hp | 3620 lbs.-in. | 7.55" | Left | €5,144.30 | |
 |
35QZ20LR14 | 5.03 hp | Green | 20 | 1 1/2" | 5.97 hp | 3620 lbs.-in. | 7.09" | Left, Right | €5,129.29 | |
 |

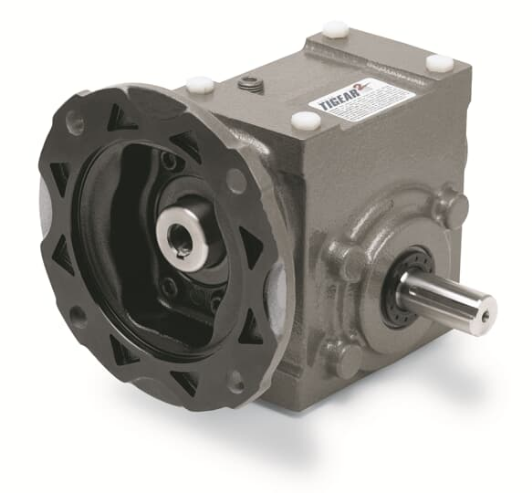

35QZ20R18 | 5.03 hp | Green | 20 | 1 1/2" | 5.97 hp | 3620 lbs.-in. | 7.55" | Right | €5,144.30 | |
|
35QZ25H18 | 3 49/50 hp | Green | 25 | 1.938" | 5 1/10 hp | 3586 lbs.-in. | 7.55" | Hollow Bore | €6,352.34 | |
 |
35QZ25LR14 | 3 49/50 hp | Green | 25 | 1 1/2" | 5 1/10 hp | 3586 lbs.-in. | 7.09" | Left, Right | €5,129.29 |
