BALDOR / DODGE 30AZ20L56WP TIGEAR-2 E-Z KLEEN Reducer-White
Get it by Tuesday, Dec 23
€3,779.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base To Output Center Height | 3 1/4" |
| Case Size | 30 |
| Center Distance | 3" |
| Center To End Of Shaft Distance | 6 3/4" |
| Class | Class 30 |
| Color | Grey |
| Finish | White Epoxy |
| Gearbox Component Type | Gearbox |
| Housing Material | Cast Iron |
| Hp Rating Input | 3 81/100 hp |
| Hp Rating Output | 3 13/50 hp |
| Input Flange | 56C |
| Input Style | 3 Piece Coupled |
| Lubrication Type | PAG, Standard Temperature |
| Material | Iron |
| Max. Rpm | 88 RPM |
| Motor Compatibility | NEMA Motor, 56C Frame |
| Mounting Bolt Pattern Length | 7" |
| Mounting Bolt Pattern Width | 4" |
| Nominal Ratio | 20 |
| Output Shaft Center To Input Motor Mounting Face Distance | 9.23" |
| Output Style | Left |
| Overhung Load | 2300 lbf. |
| Paint/coating | White |
| Rated Torque Output | 2345 lbs.-in. |
| Ratio | 20:1 |
| Seal Type | Two Piece Harsh Duty |
| Shaft Dia. | 1 3/8" |
| Shaft Length Output | 3 1/5" |
| Shaft Output Type | Left Side Solid |
| Suitable For Washdown | Yes |
| Thermal Hp Rating | 4 13/25 hp |
Shipping Info:
| Ship weight (kg) | 42.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overhung Load | Gear Ratio | Shaft Dia. | Finish | Output Type | Frame Size | Housing Material | Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

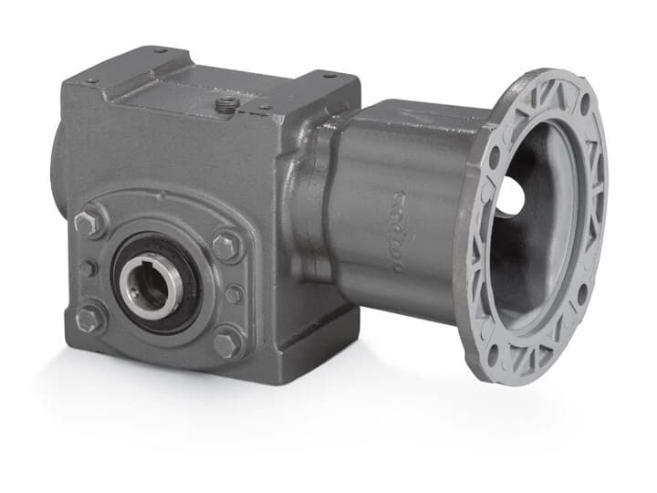

30AZ15H14 | 2300 lbf. | 15 | 1.938" | Silver Gray Epoxy | Hollow | 140 | Cast Iron | Two Piece Harsh Duty | €4,709.43 | |
|
30AZ40LR14 | 2300 lbf. | 40 | 1 3/8" | Silver Gray Epoxy | Double Solid | 140 | Cast Iron | Two Piece Harsh Duty | €4,214.59 | |
|
30AZ25L56WP | 2300 lbf. | - | 1 3/8" | White Epoxy | - | - | Cast Iron | Two Piece Harsh Duty | €3,779.72 | |
|
30AZ50LR14WP | 2300 lbf. | - | 1 3/8" | White Epoxy | - | - | Cast Iron | Two Piece Harsh Duty | €4,214.59 | |
|
30AZ07H14 | 1540 lbf. | 7 | 1.938" | Silver Gray Epoxy | Hollow | 140 | Cast Iron | Two Piece Harsh Duty | €4,709.43 | |
 |

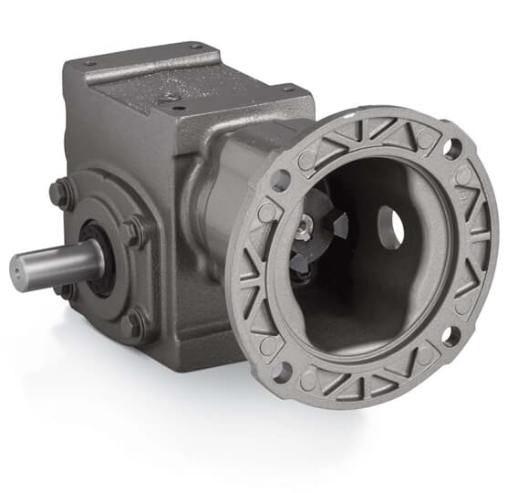

30AZ60L14 | 2300 lbf. | 60 | 1 3/8" | Silver Gray Epoxy | Left Solid A | 140 | Cast Iron | Two Piece Harsh Duty | €3,779.72 | |
|
30AZ50LR14 | 2300 lbf. | 50 | 1 3/8" | Silver Gray Epoxy | Double Solid | 140 | Cast Iron | Two Piece Harsh Duty | €4,214.59 |
