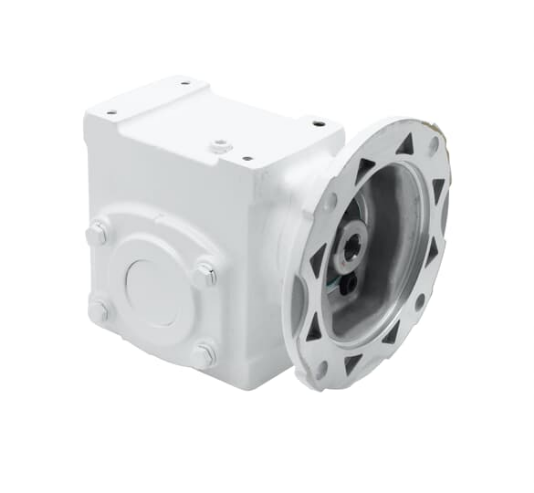

BALDOR / DODGE 17Q20R56WP TIGEAR-2 Reducer With White Paint
Get it by Tuesday, Dec 23
€1,194.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base To Output Center Height | 1.99" |
| Case Size | 17 |
| Center Distance | 1 3/4" |
| Center To End Of Shaft Distance | 4.31" |
| Color | White |
| Finish | White Epoxy |
| Frame Size | 56 |
| Gear Box | TIG17 |
| Gear Ratio | 20 |
| Housing Material | Cast Iron |
| Hp Rating Input | 1.03 hp |
| Hp Rating Output | 21/25 hp |
| Input Flange | 56C |
| Input Style | Quill |
| Lubrication Type | PAG, Standard Temperature |
| Mfr. Series | Tigear II Series |
| Motor Compatibility | NEMA Motor, 56C Frame |
| Mounting Bolt Pattern Length | 4.19" |
| Mounting Bolt Pattern Width | 2 3/4" |
| Nominal Ratio | 20 |
| Output Shaft Center To Input Motor Mounting Face Distance | 4.9" |
| Output Style | Right |
| Output Type | Right Solid B |
| Overhung Load | 1190 lbf. |
| Rated Torque Output | 602 lbs.-in. |
| Ratio | 20:1 |
| Seal Type | Single Lip Contact |
| Shaft Dia. | 7/8" |
| Shaft Key (in.) | No |
| Shaft Length | No |
| Shaft Length Output | 1.74" |
| Shaft Output Type | Right Solid B |
| Suitable For Washdown | No |
| Thermal Hp Rating | 1 29/50 hp |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 23.88 |
| Ship length (cm) | 28.45 |
| Ship width (cm) | 27.94 |
| Country of Origin | US |
Product Variants
| Product | Model | Overhung Load | Gear Ratio | Shaft Dia. | Seal Type | Finish | Output Type | Frame Size | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
17Q05H14 | 1050 lbf. | 5 | 1" | Single Lip Contact | Green Finish | Hollow | 140 | Cast Iron | €1,384.25 | |
|
17Q05H56 | 1050 lbf. | 5 | 1" | Single Lip Contact | Green Finish | Hollow | 56 | Cast Iron | €1,384.25 | |
 |
17Q05L14 | 1050 lbf. | 5 | 7/8" | Single Lip Contact | Green Finish | Left Solid A | 140 | Cast Iron | €1,032.80 | |
|
17Q05L56 | 1050 lbf. | 5 | 7/8" | Single Lip Contact | Green Finish | Left Solid A | 56 | Cast Iron | €1,032.80 | |
 |
17Q05LR14 | 1050 lbf. | 5 | 7/8" | Single Lip Contact | Green Finish | Double Solid | 140 | Cast Iron | €1,178.06 | |
|
17Q05LR56 | 1050 lbf. | 5 | 7/8" | Single Lip Contact | - | Double Solid | 56 | Cast Iron | €1,178.06 | |
 |
17Q05R14 | 1050 lbf. | 5 | 7/8" | Single Lip Contact | Green Finish | Right Solid B | 140 | Cast Iron | €1,032.80 |
