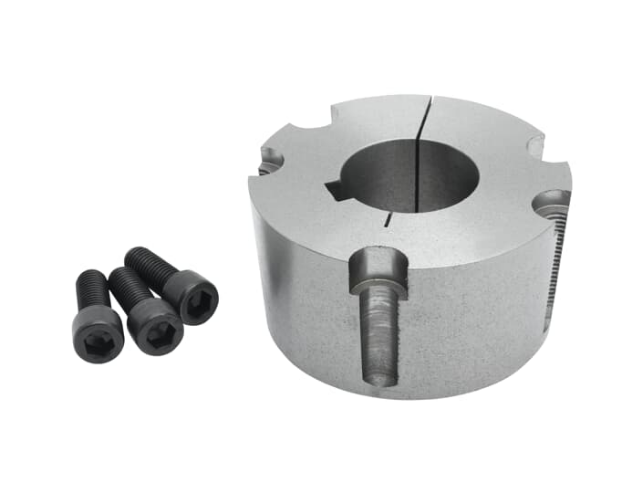

BALDOR / DODGE 117325 4040 X 2-11/16 KW 4040 X 2-11/16 Keyway Taper Locking Bushing
Get it by Tuesday, Dec 23
€262.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Taper-Lock Bushing |
| Bore Dia. | 2 11/16" |
| Bore Length | 4" |
| Bushing Size | 4040 |
| Class | Class 30 |
| Convenience | No More Fumbling With A Separate Key and Setscrew Over The Key, Integral Key Cannot Work Loose Or Fall Out |
| Cost Reduction | Eliminates Labor Cost Associated With Installing Key And Separate Key, And Associated Inventory Expense |
| Engineered And Tested Design | Integral Key Concept Thoroughly Analyzed, Including Computerized Finite Element Analysis (FEA), For Stress Evaluation, Extensive Laboratory Testing Included Static And Dynamic Loading On Customized Machinery, Results Demonstrated In Successful Field Applications |
| Inside Dia. | 2 11/16" |
| Installation Torque | 1700 lbs.-in. |
| Integral Key | No |
| Key Type | Standard |
| Keyway Size | 5/8" x 5/16" |
| Material | Cast Iron, Iron |
| No. Of Bolts | 3 |
| Outside Dia. | 5 3/4" |
| Rated Torque | 77300 lbf. |
| Shaft Attachment | Finished Bore |
| Total System Concept | Bushings, Hubs, Adapters, Products |
| Type | Taper Lock |
Shipping Info:
| Ship weight (kg) | 8.25 |
| Ship height (cm) | 14.73 |
| Ship length (cm) | 15.49 |
| Ship width (cm) | 13.21 |
| Country of Origin | US |
Product Variants
| Model | Bore Dia. | Bushing Size | Installation Torque | Rated Torque | Keyway Size | Inside Dia. | Outside Dia. | Key Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 117237 | 2 5/16" | 3535 | 1000 lbs.-in. | 44800 lbf. | 3/4" x 3/8" | 2 5/16" | 5" | - | €163.38 | |
| 117718 | 4 3/4" | 4545 | 2450 lbs.-in. | 110000 lbf. | 1.25 x 0.875 | 4 3/4" | 6.38" | - | €776.76 | |
| 119176 | 1/2" | 1008 | 55 lbs.-in. | 1200 lbf. | 1/8" x 1/16" | 1/2" | 1.39" | Standard | €28.84 | |
| 119177 | 9/16" | 1008 | 55 lbs.-in. | 1200 lbf. | 1/8" x 1/16" | - | - | - | €28.84 | |
| 117073 | 5/8" | 1008 | 55 lbs.-in. | 1200 lbf. | 3/16" x 3/32" | 5/8" | 1.39" | Standard | €28.84 | |
| 119179 | 11/16" | 1008 | 55 lbs.-in. | 1200 lbf. | 3/16" x 3/32" | - | - | - | €28.84 | |
| 117150 | 3/4" | 1008 | 55 lbs.-in. | 1200 lbf. | 3/16" x 3/32" | 3/4" | 1.39" | Standard | €28.84 |
