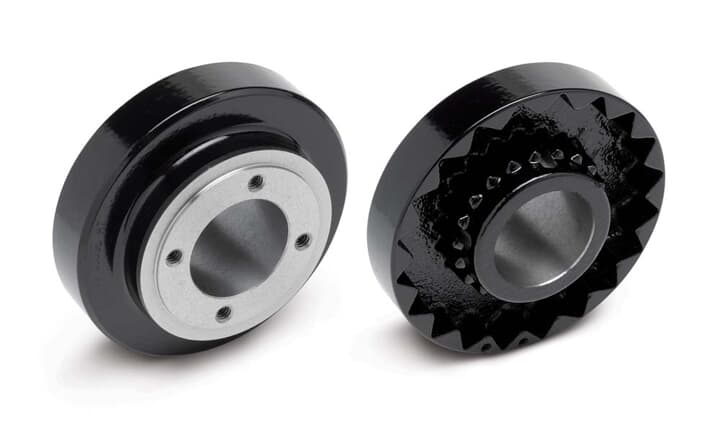

BALDOR / DODGE 022011 9SC44 Elastomeric Coupling D-Flex, Size 9, Rating 3750 Rpm
Item: BA9LBCModel: 022011Cross Ref: 9SC44
7 In Stock
Ships within 2 days via
€208.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Coupling |
| Angular Misalignment | 1 |
| Axial Misalignment | 0.192" |
| Coupling Component | Spacer Flange |
| Coupling Style | Sleeve |
| Coupling Type | Elastomeric |
| Flange Material | Cast Iron |
| Hp Per 100 Rat | 11.4 hp |
| Inside Dia. | 2 1/8" |
| Material | Cast Iron |
| Max. Distance Between Shaft Ends | 4.38" |
| Max. Speed | 3750 RPM |
| No. Of Bolts | 4 |
| Parallel Misalignment | 0.025" |
| Rated Torque | 7200 lbf. |
| Shaft Spacing | Spacer |
| Size | 9 |
| Speed | 3750 RPM |
| Tightening Torque | 720 lbs.-in. |
| Type | Sleeve |
Shipping Info:
| Ship weight (kg) | 2.47 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 14.22 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Variants
| Model | Speed | Size | Torque | Hp Per 100 Rat | Tightening Torque | Parallel Misalignment | Axial Misalignment | Max. Distance Between Shaft Ends | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 022007 | 4500 RPM | 8 | 4530 lbf. | 7.2 hp | 372 lbs.-in. | 0.02" | 0.192" | 3 1/2" | €128.82 | |
| 022009 | 4500 RPM | 8 | 4530 lbf. | 7.2 hp | 372 lbs.-in. | 0.02" | 0.192" | 5" | €188.28 | |
| 022000 | 7600 RPM | 5" | 2400 lbf. | 0.38 hp | 48 lbs.-in. | 0.015" | 0.092" | 3 1/2" | €64.42 | |
| 022015 | 3600 RPM | 11 | 18000 lbf. | 28.6 hp | 1800 lbs.-in. | 0.032" | 1/4" | 4 3/4" | €365.21 | |
| 022001 | 6000 RPM | 6 | 1800 lbf. | 2.9 hp | 108 lbs.-in. | 0.015" | 0.12" | 3 1/2" | €79.27 | |
| 022002 | 6000 RPM | 6 | 1800 lbf. | 2.9 hp | 108 lbs.-in. | 0.015" | 0.12" | 4 3/8" | €99.08 | |
| 022004 | 5250 RPM | 7 | 2835 lbf. | 4.6 hp | 216 lbs.-in. | 0.02" | 0.12" | 3 1/2" | €99.08 |
