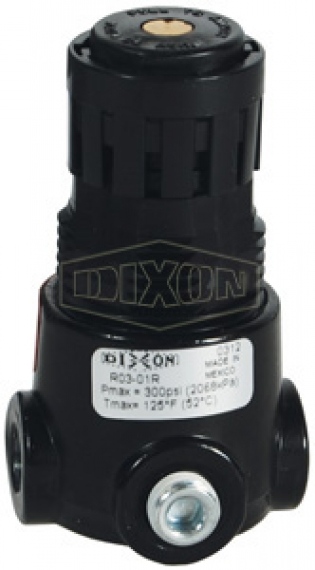

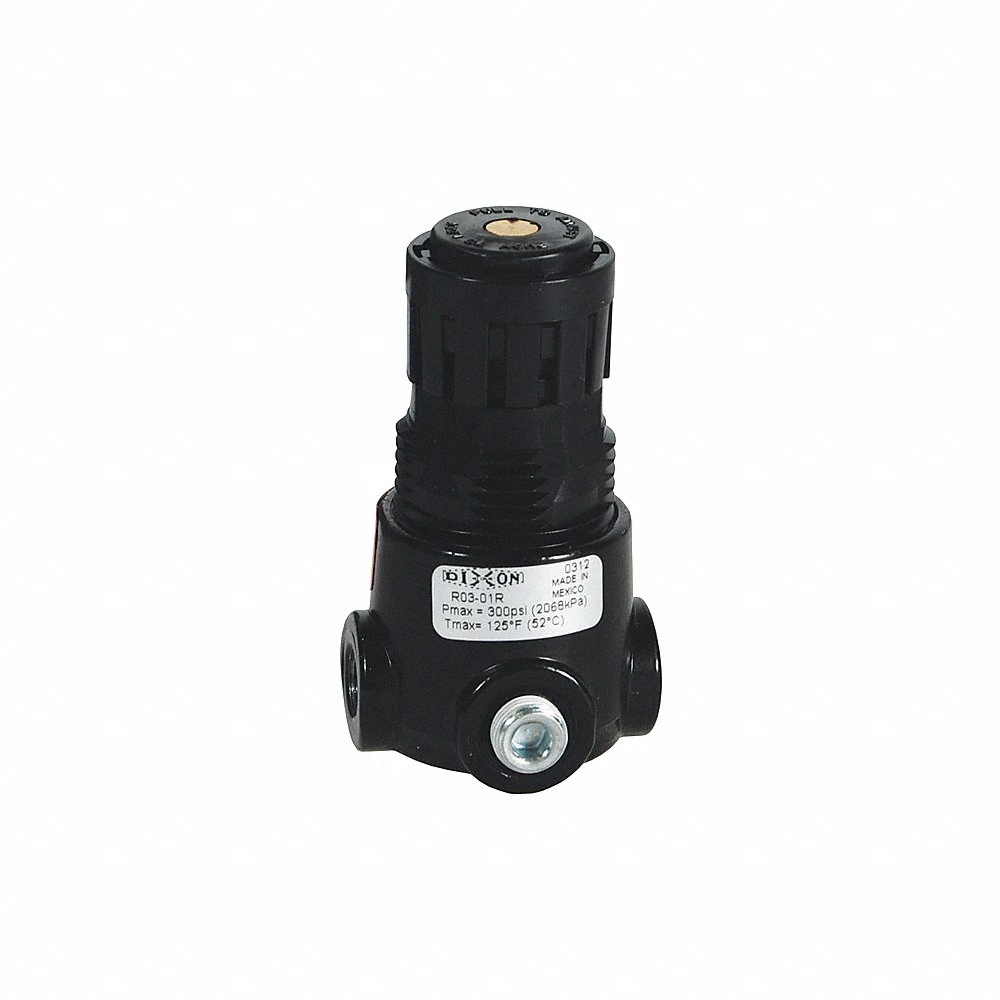

DIXON R03-02R Miniature Regulator, R03, 1/4 Inch , Zinc
Item: AM2TBVModel: R03-02RCross Ref: 58DA98
7 In Stock
Ships within 2 days via
5.00% off
€64.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Regulator |
| Body Material | Aluminum, Zinc , Zinc |
| Feature | 2-125 Psi Adjusting Range, Balanced Valve Design, Self-Relieving Standard, Non-Rising Push/Pull Locking Adjustment Knob, Two 1/8" NPT Gauge Ports Standard, Can Be Used For Additional Outlet |
| Flow Rate | 15 SCFM |
| Frl Size | Miniature |
| Max. Operating Pressure | 300 psig |
| Max. Operating Pressure Metric | 20.7 Bar |
| Max. Temp. | 125°F |
| Min. Temp. | 32°F |
| Min/max Temp. | 32°F, 125°F, N, T, T, T |
| Overall Height | 3 1/8" |
| Port Size | 1/4" |
| Pressure | 300 psi |
| Product Datasheet | wilkerson-r03-01r.pdf |
| Series | Wilkerson Series |
| Temp. | 32°F to 125°F |
Shipping Info:
| Ship weight (kg) | 4.6 |
| Ship height (cm) | 7.95 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Documentation:
