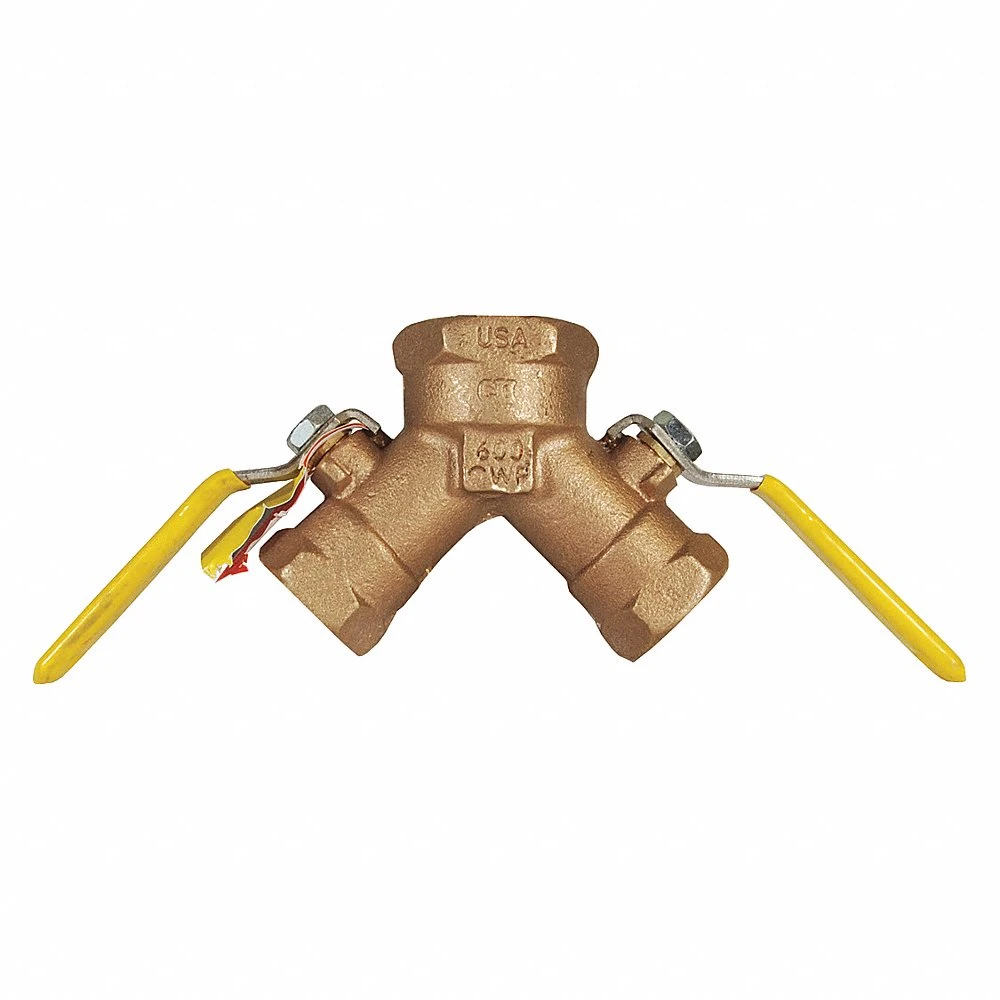

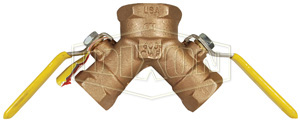

DIXON BBV100DW Dual Y Valve, Non-Vented, 1 FNPT Inlet, Bronze, 3/4 FNPT Outlet
Item: AY9WVGModel: BBV100DWCross Ref: 58DJ24
7 In Stock
Ships within 2 days via
10.00% off
€287.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Bronze |
| Ball Material Finish | Chrome Plated |
| Ball Port Style | Full Port |
| Ball Valve Basic Body Material | Bronze |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| End Configuration Size | 1" x 3/4" x 3/4" |
| End Configuration Type | FNPT x FNPT x FNPT |
| Flow Pattern | Cross Flow |
| For Media | Gas, Oil, Water |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Material | Grade 304 Stainless Steel |
| Included Mounting | Not Applicable |
| Inlet | 1" FNPT |
| Inlet Connection Entry | Side |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 1" |
| Material | Brass |
| Max. Pressure (combustible Gas) | 600 psi |
| Max. Pressure (cwp) | 700 psi |
| Maximum Pressure - Steam | Not Rated |
| Media Temperature Range | -20°F to +400°F |
| Nominal Valve Size | 1 1/4" |
| Outlet 1 | 3/4" FNPT |
| Outlet 2 Size | 3/4" |
| Outlet 2 Type | FNPT |
| Outlet Connection Gender - Side 1 | Female |
| Outlet Connection Gender - Side 2 | Female |
| Outlet Connection Size - Side 1 | 3/4" |
| Outlet Connection Size - Side 2 | 3/4" |
| Pipe Schedule Compatibility | Not Applicable |
| Pressure Range | 600 psi |
| Seal Material | RPTFE |
| Seat Material | RPTFE |
| Shape | Y |
| Special Features | Drain Port |
| Stem Material | Bronze |
| Vacuum Service Rating | Not Applicable |
| Valve Construction | Two-Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
