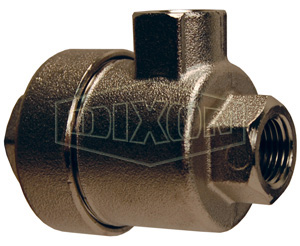

DIXON 79821111 Quick Exhaust Valve, 1/8 Inch NPT
Item: BX7YACModel: 79821111
7 In Stock
Ships within 2 days via
€36.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Exhaust Valve |
| Application | The Quick Exhaust Valve Can Be Used In All Pneumatic Equipment. It Dramatically Increases System Efficiency And Speed Of A Cylinder By Purging Cylinder Air At The Cylinder Port Rather Than The Control Valve. |
| Construction | Nickel-Plated Brass Body With Polyurethane Piston And Nylon Seals |
| Female Npt Size | 1/8" |
| Female Thread Size | 1/8" |
| Female Thread Type | NPT |
| Material | Nickel Plated Brass , Nylon, Brass |
| Max. Pressure | 150 psi |
| Max. Temp. | 160°F |
| Min. Temp. | 0°F |
| Min/max Temp. | 0°F, 160°F, N, T, T, T |
| Pressure | 10 psi to 150 psi |
| Product Datasheet | dixon-79106000.pdf |
| Series | Legris Series |
| Shape Orientation | Straight |
| Temp. | 0°F to 160°F |
| Thread Size | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | IT |
Documentation:
Product Variants
| Model | Material | Female Thread Size | Temp. | Max. Pressure | Pressure | Female Thread Type | Shape Orientation | Min. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 79821414 | Nylon, Brass | 1/4" | 0°F to 160°F | 150 psi | 10 psi to 150 psi | NPT | Straight | 0°F | €38.21 | |
| 79822222 | Nylon, Brass | 1/2" | 0°F to 160°F | 150 psi | 10 psi to 150 psi | NPT | Straight | 0°F | €72.30 | |
| 79821818 | Nylon, Brass | 3/8" | 0°F to 160°F | 150 psi | 10 psi to 150 psi | NPT | Straight | 0°F | €53.43 |
