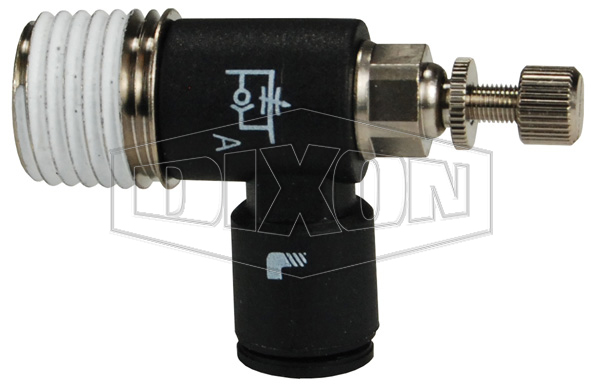

DIXON 76605620 Flow Control Valve, Mini Exhaust with Gasket
Item: BX7ZNCModel: 76605620
7 In Stock
Ships within 2 days via
€59.82 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flow Control Valve |
| Angle | 90° |
| Application | Controls The Speed Of A Cylinder By Regulating Air Exhaust. Intake Air Flows Freely Through The Flow Control And Exhaust Air Is Metered Out Through A Specially Designed Fine Adjustment Screw. |
| Construction | Body: Nylon |
| Feature | Push-To-Connect, Meter Out Flow Control, One-Piece Design, Supplied With Gasket |
| Material | Nylon |
| Max. Temp. | 158°F |
| Min. Temp. | 30°F |
| Pressure | 15 psi to 145 psi |
| Product Datasheet | dixon-76655611.pdf |
| Series | Legris Series |
| Temp. | 30°F to 158°F |
| Thread Size | 10"-32 |
| Thread Type | Fine |
| Tube Outside Dia. | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Tube Outside Dia. | Material | Temp. | Pressure | Angle | Min. Temp. | Max. Temp. | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 76655611 | 1/4" | Nylon | 30°F to 158°F | 15 psi to 145 psi | 90° | 30°F | 158°F | Controls The Speed Of A Cylinder By Regulating Air Exhaust. Intake Air Flows Freely Through The Flow Control And Exhaust Air Is Metered Out Through A Specially Designed Fine Adjustment Screw. | €57.35 | |
| 76600420 | 5/32" | Nylon | 30°F to 158°F | 15 psi to 145 psi | 90° | 30°F | 158°F | Controls The Speed Of A Cylinder By Regulating Air Exhaust. Intake Air Flows Freely Through The Flow Control And Exhaust Air Is Metered Out Through A Specially Designed Fine Adjustment Screw. | €49.05 | |
| 76655614 | 1/4" | Nylon | 30°F to 158°F | 15 psi to 145 psi | 90° | 30°F | 158°F | Controls The Speed Of A Cylinder By Regulating Air Exhaust. Intake Air Flows Freely Through The Flow Control And Exhaust Air Is Metered Out Through A Specially Designed Fine Adjustment Screw. | €52.34 | |
| 76650411 | 5/32" | Nylon | 30°F to 158°F | 15 psi to 145 psi | 90° | 30°F | 158°F | Controls The Speed Of A Cylinder By Regulating Air Exhaust. Intake Air Flows Freely Through The Flow Control And Exhaust Air Is Metered Out Through A Specially Designed Fine Adjustment Screw. | €51.45 |
