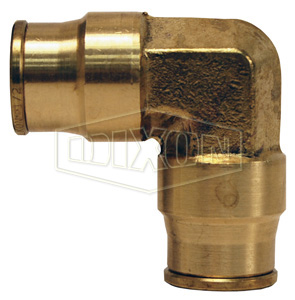

DIXON 654 Push-In Union Elbow, Forged Brass, 1/8 Inch Tube O.D.
Item: AN7NLYModel: 654
7 In Stock
Ships within 2 days via
€11.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Union Elbow |
| Application | Suitable For Vacuum Service, Working Pressure: Suitable For Use Up To The Maximum Working Pressure Of The Plastic Tubing Used. |
| Break Quantity | 1 |
| Feature | Positive Seal: No Leaks, After Tubing Is Inserted, Seal Is Made, Secure Tube Retention: Pulling On Tubing Only Serves To Tighten The Connectono, Full Flow Design Provides Up To 60% More Flow Than Conventional Fittings With Internal Tube Supports. |
| Installation | Saves Up To 75% Of Assembly Time Versus The Standard Compression Fittings. Quick Connect: Simply Push Tubing In, No Tools Required. Quick Disconnect: Hold Two Fingers On Insert And Pull Tubing Out, No Tools Required. Reusable: Connect And Disconnect Numerous Times |
| Material | Brass , Forged Brass |
| Max. Temp. | 200°F |
| Min. Temp. | -10°F |
| Min/max Temp. | -10°F, 200°F, N, T, T, T(-23.33°C, 93.33°C)} |
| Product Datasheet | dixon-6512.pdf |
| Shape Orientation | 90° |
| Temp. | -10°F to +200°F |
| Tube Outside Dia. | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Material | Tube Outside Dia. | Temp. | Shape Orientation | Max. Temp. | Break Quantity | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 6516 | Brass | 1/2" | -10°F to +200°F | 90° | 200°F | 1 | Suitable For Vacuum Service, Working Pressure: Suitable For Use Up To The Maximum Working Pressure Of The Plastic Tubing Used. | €24.90 | |
| 655 | Brass | 5/32" | -10°F to +200°F | 90° | 200°F | 1 | Suitable For Vacuum Service, Working Pressure: Suitable For Use Up To The Maximum Working Pressure Of The Plastic Tubing Used. | €11.95 | |
| 658 | Brass | 1/4" | -10°F to +200°F | 90° | 200°F | 1 | Suitable For Vacuum Service, Working Pressure: Suitable For Use Up To The Maximum Working Pressure Of The Plastic Tubing Used. | €13.05 |
