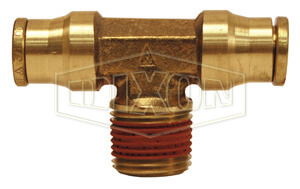

DIXON 648 Union Tee, Push-In, Brass, 1/4 Inch Tube
Item: AM2QKRModel: 648
7 In Stock
Ships within 2 days via
€18.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Union Tee |
| Application | Suitable For Vacuum Service. Working Pressure: Suitable For Use Up To The Maximum Working Pressure Of The Plastic Tubing Used. |
| Break Quantity | 1 |
| Feature | Positive Seal: No Leaks, After Tubing Is Inserted, Seal Is Made, Secure Tube Retention: Pulling On Tubing Only Serves To Tighten The Connectono, Full Flow Design Provides Up To 60% More Flow Than Conventional Fittings With Internal Tube Supports. |
| Installation | Saves Up To 75% Of Assembly Time Versus The Standard Compression Fittings. Quick Connect: Simply Push Tubing In, No Tools Required. Quick Disconnect: Hold Two Fingers On Insert And Pull Tubing Out, No Tools Required. Reusable: Connect And Disconnect Numerous Times |
| Material | Forged Brass |
| Max. Temp. | 200°F |
| Min. Temp. | -10°F |
| Min/max Temp. | -10°F, 200°F, N, T, T, T(-23.33°C, 93.33°C)} |
| Shape Orientation | Tee |
| Temp. | -10°F to +200°F |
| Tube Outside Dia. | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Temp. | Pressure | Type | Dimension Standards | Tube Outside Dia. | Max. Temp. | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

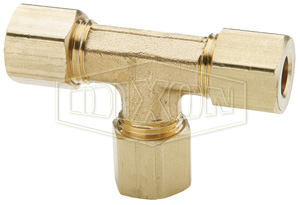

164C-08 | Brass | -65°F to +250°F | 200 psi | Union Tee | SAE J512, SAE 060401 BA | - | - | - | €55.11 | |
|
164C-06 | Brass | -65°F to +250°F | 200 psi | Union Tee | SAE J512, SAE 060401 BA | - | - | - | €33.63 | |
|
164C-04 | Brass | -65°F to +250°F | 300 psi | Union Tee | SAE J512, SAE 060401 BA | - | - | - | €25.26 | |
|
164C-02 | Brass | -65°F to +250°F | 400 psi | Union Tee | SAE J512, SAE 060401 BA | - | - | - | €45.06 | |
 |

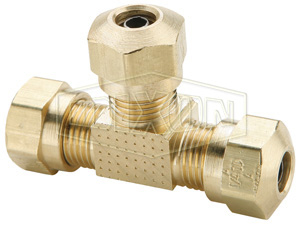

64NAB10 | Brass | -40°F to +200°F | 150 psi | Union Tee | SAE J246, SAE 100401 BA | - | - | - | €96.18 | |
|
644 | Brass | -10°F to +200°F | - | - | - | 1/8" | 200°F | - | €19.58 | |
|
645 | Brass | - | - | - | - | 5/32" | 200°F | - | €15.51 |
