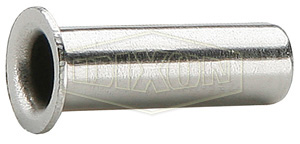

DIXON 63NAB8 DOT Air Brake Insert
Item: BX6HLKModel: 63NAB8
7 In Stock
Ships within 2 days via
€2.13 /unit
This product can only be shipped in multiples of 100Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Brake Insert |
| Connection Size | 1/2" |
| Connection Type | Tube |
| Dimensions Standard | SAE J246 |
| Fitting Type | Insert |
| For Use With | SAE J844 Type A And B Tubing |
| Grade | Grade 302, Grade 304 |
| Length | 0.81" |
| Material | Stainless Steel |
| Outside Dia. | 0.37" |
| Pressure Rating | 150 psi |
| Shape | Straight |
| Temp. Range | -40°F to +200°F |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.06 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Outside Dia. | Temp. Range | Material | Pressure Rating | Connection Type | Grade | Shape | Fitting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 63NAB4 | 0.163" | -40°F to +200°F | Stainless Steel | 150 psi | Tube | Grade 302, Grade 304 | Straight | Insert | €1.90 | |
| 63NAB10 | 0.434" | -40°F to +200°F | Stainless Steel | 150 psi | Tube | Grade 302, Grade 304 | Straight | Insert | €4.44 | |
| 63NAB12 | 0.559" | -40°F to +200°F | Stainless Steel | 150 psi | Tube | Grade 302, Grade 304 | Straight | Insert | €6.53 | |
| 63NAB6 | 0.245" | -40°F to +200°F | Stainless Steel | 150 psi | Tube | Grade 302, Grade 304 | Straight | Insert | €1.90 |
