DIXON 628 Push-In Union, 1/4 Inch Size, Brass
Item: BX6HLNModel: 628
7 In Stock
Ships within 2 days via
€12.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Union |
| Application | Suitable For Vacuum Service, Working Pressure: Suitable For Use Up To The Maximum Working Pressure Of The Plastic Tubing Used. |
| Break Quantity | 1 |
| Feature | Positive Seal: No Leaks, After Tubing Is Inserted, Seal Is Made, Secure Tube Retention: Pulling On Tubing Only Serves To Tighten The Connectono, Full Flow Design Provides Up To 60% More Flow Than Conventional Fittings With Internal Tube Supports. |
| Installation | Saves Up To 75% Of Assembly Time Versus The Standard Compression Fittings. Quick Connect: Simply Push Tubing In, No Tools Required. Quick Disconnect: Hold Two Fingers On Insert And Pull Tubing Out, No Tools Required. Reusable: Connect And Disconnect Numerous Times |
| Material | Brass , Forged Brass |
| Max. Temp. | 200°F |
| Min/max Temp. | -10°F, 200°F, N (-23.33°C, 93.33°C)} |
| Product Datasheet | dixon-6216.pdf |
| Shape Orientation | Straight |
| Temp. | -10°F to +200°F |
| Tube Outside Dia. | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Material | Temp. | Tube Outside Dia. | Shape Orientation | Pressure Rating | Max. Temp. | Break Quantity | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6216 | Brass | -10°F to +200°F | 1/2" | Straight | - | 200°F | 1 | Suitable For Vacuum Service, Working Pressure: Suitable For Use Up To The Maximum Working Pressure Of The Plastic Tubing Used. | €18.56 | |
|
625 | Brass | -10°F to +200°F | 5/32" | Straight | - | 200°F | 1 | Suitable For Vacuum Service, Working Pressure: Suitable For Use Up To The Maximum Working Pressure Of The Plastic Tubing Used. | €13.56 | |
 |
6512 | Brass | -10°F to +200°F | 3/8" | 90° | - | 200°F | 1 | Suitable For Vacuum Service, Working Pressure: Suitable For Use Up To The Maximum Working Pressure Of The Plastic Tubing Used. | €16.91 | |
 |
31060600 | Nylon | - | - | - | - | - | - | - | €9.83 | |
 |
31065600DOT | Composite | -40°F to +200°F | - | - | 250 psi | - | - | - | €10.67 | |
|
6212 | Brass | -10°F to +200°F | 3/8" | Straight | - | 200°F | 1 | Suitable For Vacuum Service, Working Pressure: Suitable For Use Up To The Maximum Working Pressure Of The Plastic Tubing Used. | €13.71 | |
|

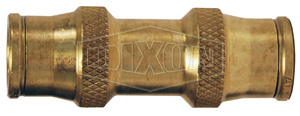

624 | Brass | -10°F to +200°F | 1/8" | Straight | - | 200°F | 1 | Suitable For Vacuum Service, Working Pressure: Suitable For Use Up To The Maximum Working Pressure Of The Plastic Tubing Used. | €12.36 |
