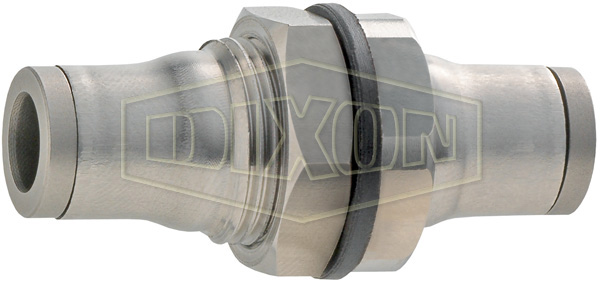

DIXON 38166200 Push-In Bulkhead Connector Union, 1/2 Inch Tube O.D., Stainless Steel
Item: BX6PQEModel: 38166200
7 In Stock
Ships within 2 days via
€377.67 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bulkhead Union |
| Application | Suitable For Many Industries Such As: Chemical, Food, Packaging And Medical. Compatible With A Range Of Tubes Including: Semi-Rigid Nylon Tube, Flexible Polyurethane Tube, Low Density Polyethylene, PTFE Tube FEP 140, Stainless Steel And Copper Tube (When Grooved). |
| Construction | AISI 316 Stainless Steel Body With 316L Stainless Steel Backup Washer And 303L Stainless Steel Collet, Silicone Free, FKM O-Ring |
| Material | Stainless Steel |
| Max. Operating Pressure | 435 psi |
| Max. Pressure | 290 psi |
| Max. Temp. | 245°F |
| Min/max Temp. | -4°F, 245°F, N, N, T, T, T, T |
| Pressure | 290 psi |
| Product Datasheet | dixon-38066200.pdf |
| Seal | FKM O Ring |
| Seal Material | FKM |
| Seal Type | O Ring |
| Series | Legris Series |
| Shape Orientation | Straight |
| Temp. | -13°F to +302°F |
| Tube Outside Dia. | 1/2" |
| Vacuum | 28" |
Shipping Info:
| Ship weight (kg) | 0.71 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
