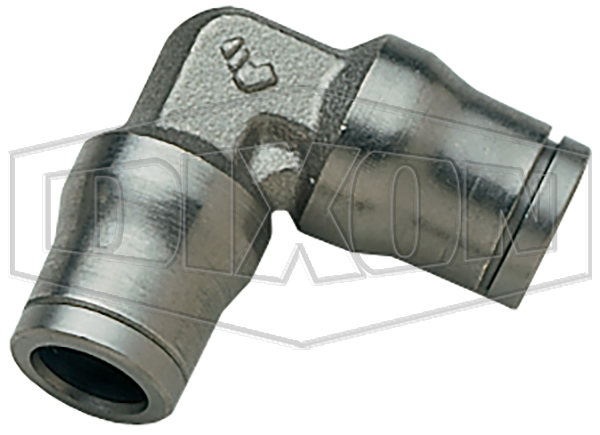

DIXON 36020400 Push-In Union Elbow, Brass, 5/32 Inch Tube O.D.
Item: AZ8EXGModel: 36020400
7 In Stock
Ships within 2 days via
€22.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Union Elbow |
| Application | Applications Include: Food Industry, Packaging, Robotics, Pulp And Paper And Wash Down, Push-To-Connect Forged Fittings Are Nickel Plated And Have An FKM Seal Making Them Suitable To Use With Liquids And Gaseous Fluids. Fittings Are Plated With A High Phosphorous FDA Nickel Plate Allowing Them To Be Used In Applications Where Exposure To Harsh Environments Is Present. |
| Construction | Body: High Phosphorous FDA Nickel Plated Brass, Back-Up Washer: High Phosphorous FDA Nickel Plated Brass, Collet: High Phosphorous FDA Nickel Plated Brass, O-Ring: FKM Fluoroelastomer Conforming To FDA Standards, Base: High Phosphorous FDA Nickel Plated Brass, Thread Sealant Is Intentionally Left Off Product So The Appropriate Sealant For The Application Can Be Applied |
| Feature | Full Flow, Excellent Resistance To Abrasion And Corrosion, Silicone Free |
| Finish | Nickel Plated |
| Material | Brass , Nickle Plated Brass |
| Max. Operating Pressure | 435 psi |
| Max. Temp. | 302°F |
| Min. Temp. | -4°F |
| Pressure | 435 psi |
| Product Datasheet | dixon-36096222.pdf |
| Seal | FKM |
| Seal Material | FKM |
| Temp. | -4°F to +302°F |
| Tube Outside Dia. | 5/32" |
| Vacuum | 28" |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Material | Tube Outside Dia. | Temp. | Finish | Pressure | Max. Operating Pressure | Vacuum | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 36026000 | Brass | 3/8" | -4°F to +302°F | Nickel Plated | 435 psi | 435 psi | 28" | 302°F | €38.39 | |
| 36026200 | Brass | 1/2" | -4°F to +302°F | Nickel Plated | 435 psi | 435 psi | 28" | 302°F | €40.32 | |
| 36025600 | Brass | 1/4" | -4°F to +302°F | Nickel Plated | 435 psi | 435 psi | 28" | 302°F | €19.11 |
