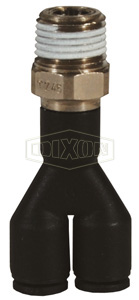

DIXON 31480414 Push-In Y, Male, Nylon/Brass, 5/32 Inch Tube x 1/4 Inch MNPT
Item: BX7YUBModel: 31480414
7 In Stock
Ships within 2 days via
€32.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wye |
| Application | Compatible Tubing: Semi-Rigid Nylon, Polyurethane And Polyethylene Tube, Vacuum Capability: Vacuum Of 28" Hg (99% Vacuum) |
| Construction | Nickel-Plated Brass Threads, Black Body Is Glass-Filled Nylon, Buna-N D Seal, Polypropylene Release Button, Silicone Free |
| Feature | Positive Seal: Sealing And Holding Is Accomplished Instantaneously, Reusable: Connect And Disconnect Numerous Times, Full Flow: Fitting Seals On Outside Diameter Of Tubing, Pre-Applied Thread Sealant On All Tapered Male Pipe Threads |
| Finish | Nickel Plated |
| Installation | Quick Connect And Disconnect, No Tools Required. To Connect, Simply Push Tubing In. To Disconnect, Press The Release Ring Towards The Fitting And Pull Tubing Out. |
| Male Thread | NPT |
| Male Thread Size | 1/4" |
| Male Thread Type | NPT |
| Material | Nylon , Nylon, Brass , Nylon, Nickel-Plated Brass |
| Max. Temp. | 175°F |
| Min/max Temp. | -4°F, 175°F, N, N, T, T, T, T |
| Pressure | 290 psi |
| Product Datasheet | dixon-31480411.pdf |
| Seal | Nitrile Rubber D Seal |
| Seal Material | Nitrile Rubber |
| Seal Shape | D |
| Seal Type | D Seal |
| Series | Legris Series |
| Shape Orientation | Y |
| Temp. | -4°F to +175°F |
| Thread Size | 1/4" |
| Thread Type | NPT |
| Tube Outside Dia. | 5/32" |
| Working Pressure | 290 psi |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Material | Tube Outside Dia. | Male Thread Size | Seal Shape | Temp. | Finish | Pressure | Working Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 31480411 | Nylon | 5/32" | 1/8" | D | -4°F to +175°F | Nickel Plated | 290 psi | 290 psi | €24.48 | |
| 31485614 | Nylon | 1/4" | 1/4" | D | -4°F to +175°F | Nickel Plated | 290 psi | 290 psi | €21.66 | |
| 31485611 | Nylon | 1/4" | 1/8" | D | -4°F to +175°F | Nickel Plated | 290 psi | 290 psi | €20.64 |
