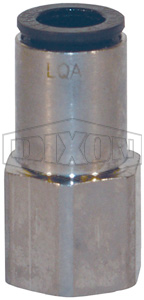

DIXON 31140610 Push-In Female BSPP Connector, Metric, 6mm Tube x 1/8 Inch Female BSPP
Item: BX6PFGModel: 31140610
7 In Stock
Ships within 2 days via
€15.72 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Connector |
| Application | Compatible Tubing: Semi-Rigid Nylon, Polyurethane And Polyethylene Tube, Vacuum Capability: Vacuum Of 28" Hg (99% Vacuum) |
| Construction | Polypropylene Release Button, Nickel-Plated Brass Threads, Silicone Free |
| Feature | Positive Seal: Sealing And Holding Is Accomplished Instantaneously, Reusable: Connect And Disconnect Numerous Times, Full Flow: Fitting Seals On Outside Diameter Of Tubing |
| Female Thread | BSPP |
| Female Thread Size | 1/8" |
| Female Thread Type | BSPP |
| Finish | Nickel Plated |
| Installation | Quick Connect And Disconnect, No Tools Required, To Connect, Simply Push Tubing In. To Disconnect, Press The Release Ring Towards The Fitting And Pull Tubing Out. |
| Material | Brass , Nickel Plated Brass |
| Max. Temp. | 175°F |
| Min/max Temp. | -4°F/ 175°F, N, T, T, T |
| Pressure | 290 psi |
| Pressure Rating | 290 psi @ 70°F , 290 psi At 70°F |
| Product Datasheet | dixon-31090610.pdf |
| Seal | Nitrile Rubber D Seal |
| Seal Material | Nitrile Rubber |
| Seal Shape | D |
| Seal Type | D Seal |
| Shape Orientation | Straight |
| Temp. | -4°F to +175°F |
| Thread Size | 1/8" |
| Thread Type | BSP |
| Tube Outside Dia. | 6 mm |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Material | Tube Outside Dia. | Female Thread Size | Pressure Rating | Seal Shape | Temp. | Finish | Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 31140410 | Brass | 4 mm | 1/8" | 290 psi @ 70°F | D | -4°F to +175°F | Nickel Plated | 290 psi | €17.40 | |
| 31140813 | Brass | 8 mm | 1/4" | 290 psi @ 70°F | D | -4°F to +175°F | Nickel Plated | 290 psi | €18.88 | |
| 31140413 | Nickel Plated Brass | 4 mm | 1/4" | 290 psi At 70°F | D | -4°F to +175°F | Nickel Plated | 290 psi | €21.06 | |
| 31140810 | Brass | 8 mm | 1/8" | 290 psi @ 70°F | D | -4°F to +175°F | Nickel Plated | 290 psi | €26.48 | |
| 31140613 | Brass | 6 mm | 1/4" | 290 psi @ 70°F | D | -4°F to +175°F | Nickel Plated | 290 psi | €19.11 |
