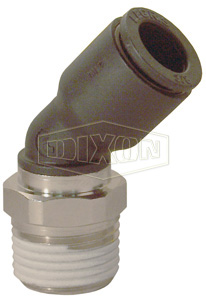

DIXON 31136014 Push-In Male Elbow, Nylon/Brass, 45 Deg. Bend, 3/8 Inch Tube x 1/4 Inch MNPT
Item: BX6PFHModel: 31136014
7 In Stock
Ships within 2 days via
€18.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Elbow |
| Angle | 45° |
| Application | Compatible Tubing: Semi-Rigid Nylon, Polyurethane And Polyethylene Tube, Vacuum Capability: Vacuum Of 28" Hg (99% Vacuum) |
| Construction | Nickel-Plated Brass Threads, Black Body Is Glass-Filled Nylon, Buna-N D Seal, Polypropylene Release Button, Silicone Free |
| Feature | Positive Seal: Sealing And Holding Is Accomplished Instantaneously, Reusable: Connect And Disconnect Numerous Times, Full Flow: Fitting Seals On Outside Diameter Of Tubing, Pre-Applied Thread Sealant On All Tapered Male Pipe Threads |
| Finish | Nickel Plated |
| Installation | Quick Connect And Disconnect, No Tools Required. To Connect, Simply Push Tubing In. To Disconnect, Press The Release Ring Towards The Fitting And Pull Tubing Out. |
| Male Thread | NPT |
| Male Thread Size | 1/4" |
| Male Thread Type | NPT |
| Material | Nylon , Nylon, Brass , Nylon, Nickel-Plated Brass |
| Max. Temp. | 175°F |
| Min/max Temp. | -4°F, 175°F, N, T, T, T |
| Pressure | 290 psi |
| Product Datasheet | dixon-31090414.pdf |
| Seal | Nitrile Rubber D Seal |
| Seal Material | Nitrile Rubber |
| Seal Shape | D |
| Seal Type | D Seal |
| Series | Legris Series |
| Shape Orientation | 45° |
| Temp. | -4°F to +175°F |
| Thread Size | 1/4" |
| Thread Type | NPT |
| Tube Outside Dia. | 3/8" |
| Working Pressure | 290 psi |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
