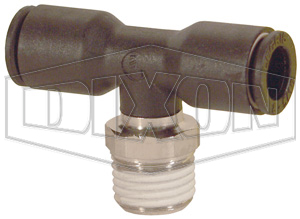

DIXON 31080413 Push-In Male BSPT Branch Tee, Metric, 4mm Tube x 1/4 Inch Male BSPT
Item: BX7YTRModel: 31080413
7 In Stock
Ships within 2 days via
€23.31 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Branch Tee |
| Application | Compatible Tubing: Semi-Rigid Nylon, Polyurethane And Polyethylene Tube, Vacuum Capability: Vacuum Of 28" Hg (99% Vacuum) |
| Construction | Black Glass-Filled Nylon Body, Polypropylene Release Button, Nickel-Plated Brass Threads, Silicone Free |
| Feature | Positive Seal: Sealing And Holding Is Accomplished Instantaneously, Reusable: Connect And Disconnect Numerous Times, Full Flow: Fitting Seals On Outside Diameter Of Tubing, Pre-Applied Thread Sealant, The Body Is Orientable For Positioning Purposes. |
| Finish | Nickel Plated |
| Installation | Quick Connect And Disconnect, No Tools Required, To Connect, Simply Push Tubing In. To Disconnect, Press The Release Ring Towards The Fitting And Pull Tubing Out. |
| Male Thread | BSPT |
| Male Thread Size | 1/4" |
| Male Thread Type | BSPT |
| Material | Nickel Plated Brass , Nylon, Brass |
| Max. Temp. | 175°F |
| Min/max Temp. | -4°F/175°F |
| Pressure | 290 psi |
| Pressure Rating | 290 psi @ 70°F , 290 psi At 70°F |
| Seal | Nitrile Rubber D Seal |
| Seal Material | Nitrile Rubber |
| Seal Shape | D |
| Seal Type | D Seal |
| Shape Orientation | 90° |
| Temp. | -4°F to +175°F |
| Thread Size | 1/4" |
| Thread Type | BSP |
| Tube Outside Dia. | 4 mm |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Temp. | Tube Outside Dia. | Male Thread Size | Male Thread | Male Thread Type | Shape Orientation | Pressure Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
31086018 | Nylon | -4°F to +175°F | 3/8" | 3/8" | NPT | NPT | Tee | - | €34.72 | |
 |
31085614 | Nylon | -4°F to +175°F | 1/4" | 1/4" | NPT | NPT | Tee | - | €14.92 | |
|
31085611 | Nylon | -4°F to +175°F | 1/4" | 1/8" | NPT | NPT | Tee | - | €13.71 | |
|
31080814 | Nylon | -4°F to +175°F | 5/16" | 1/4" | NPT | NPT | Tee | - | €25.82 | |
|
31085618 | Nylon | -4°F to +175°F | 1/4" | 3/8" | NPT | NPT | Tee | - | €18.56 | |
 |
728X4 | Forged Brass | -10°F to +200°F | - | - | - | - | - | - | €15.27 | |
|
31086011 | Nylon | -4°F to +175°F | 3/8" | 1/8" | NPT | NPT | Tee | - | €40.56 |
