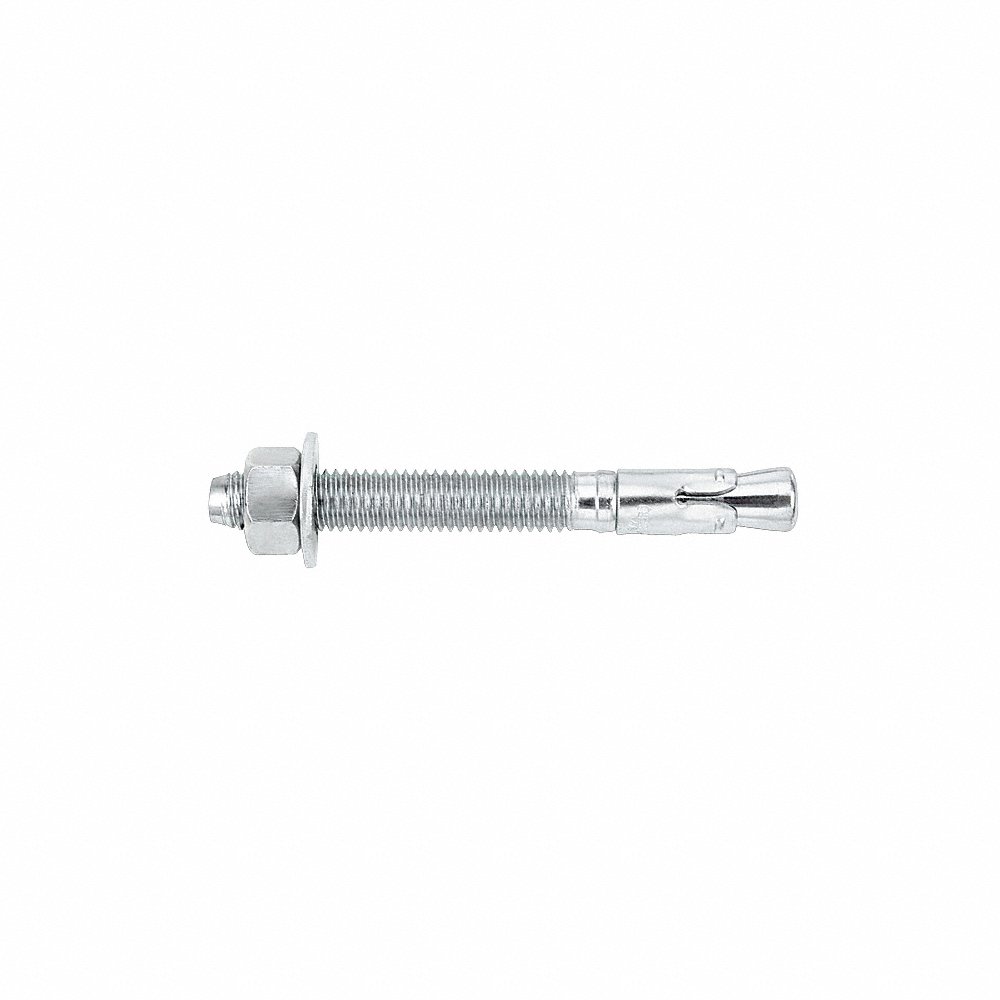

DEWALT 7446SD1-PWR Wedge Anchor, 3/4 In - 10 Thread Size, 7 In Anchor Lg., 4 1/2 In Thread Lg., Zn Plated
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€150.39 /pkg. of 20
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Wedge Anchor |
| Anchor Dia. | 3/4" |
| Anchor Length | 7" |
| Compatible Material | Concrete |
| Display Qty | 20 |
| Drill Bit Size | 3/4" |
| Finish | Zinc Plated |
| Icc Approved For Cracked Concrete | Yes |
| Icc Approved For Un-cracked Concrete | Yes |
| Included | Nut And Washer |
| Industry Standards | 2012 Ibc/Irc, 2015 Ibc/Irc, 2018 Ibc/Irc, 2021 Ibc/Irc, Fm Approved, Icc-Es Ac01, Ul Listed |
| Material | Steel |
| Material Grade/class | Medium Carbon |
| Material Quality Standards | Astm E-488 |
| Max. Installation Torque | 80 lbs.-ft. |
| Max. Material Thickness | 2 7/8" |
| Max. Work Thickness | 2 7/8" |
| Min. Embedment | 3 3/8" |
| Min. Installation Depth | 3 3/8" |
| Min. Installation Torque | 80 lbs.-ft. |
| Min. Material Thickness | 6" |
| Nut Width | 1 1/8" , 1.125" |
| Overall Length | 7" |
| Seismic Approved | Yes |
| Series | Power-Stud+ SD1 Series |
| System Of Measurement | Imperial |
| Thread Length | 4 1/2" |
| Thread Size | 3/4"-10 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Ultimate Pullout (lb.) | 7860 |
| Ultimate Shear | 12685 lbs. |
| Ultimate Tension | 7860 lbs. |
| Ultimate Tension Strength 3000 Psi Concrete | 7860 lbs. |
| Ultimate Tension Strength 4000 Psi Concrete | 9075 lbs. |
| Washer Outside Dia. | 1.4688" , 1.469" |
| Wedge Anchor Type | Expansion , Standard |
Shipping Info:
| Ship weight (kg) | 8.01 |
| Ship height (cm) | 9.91 |
| Ship length (cm) | 14.73 |
| Ship width (cm) | 22.61 |
| HS code | 7318152000 |
| Country of Origin | TW |
