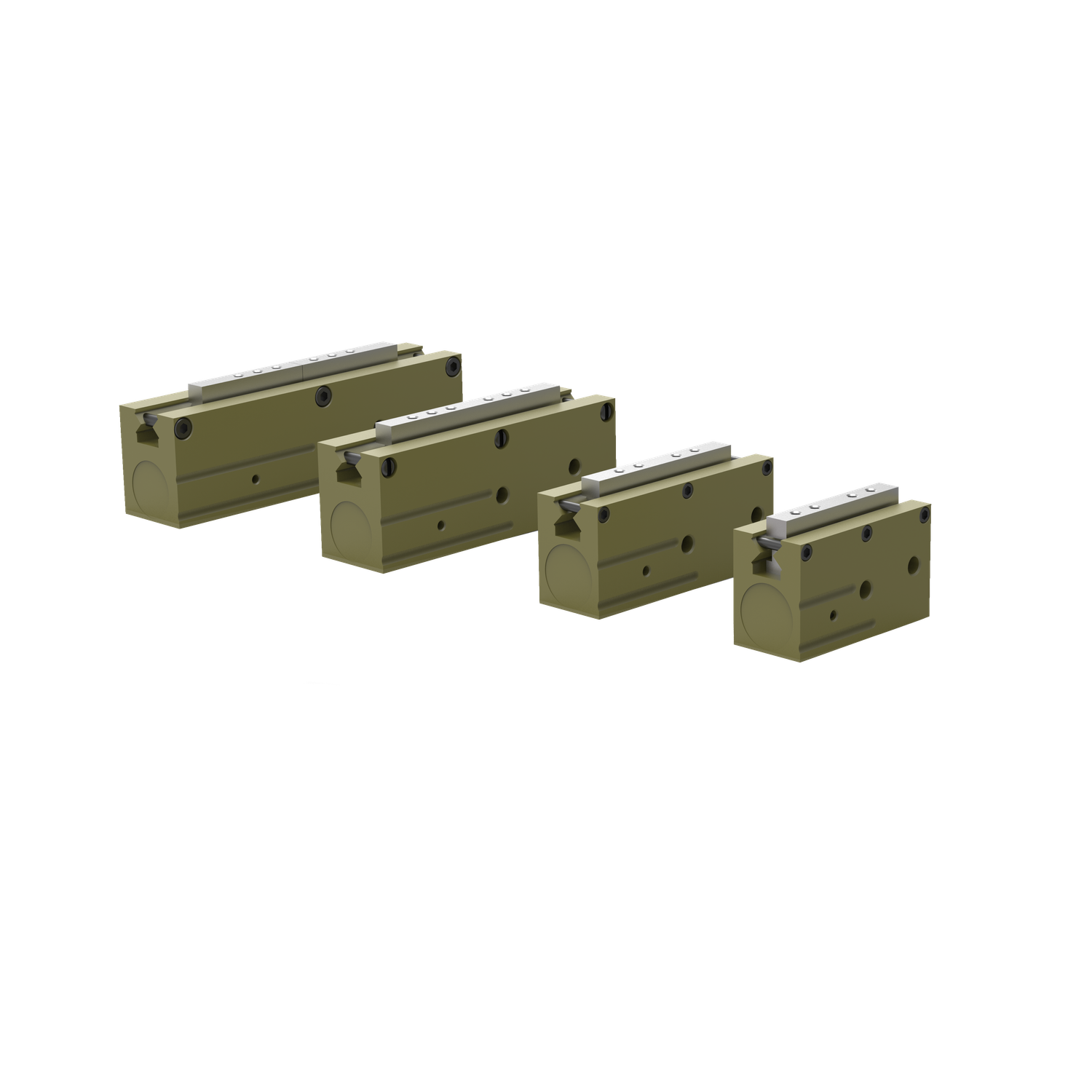

DESTACO RPL-1M-NS Pneumatic Parallel Gripper, 2-Jaw, 6.4 mm Stroke, 19.100 x 29.60 x 44.500 mm Size
Item: EC9ZJYModel: RPL-1M-NS
In Stock
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gripper |
| Accessories | CABL-010, CABL-013, OISA-005, OISA-004, OFSV-001, OFSV-004, OSMK-008, SLKT-010, SLKT-010V |
| Cylinder Bore | 11/25" |
| Grip Force | 26 lbf. |
| Jaw Operation | Non-Synchronous Available |
| Length | 0.752" |
| Max. Finger Length | 3" |
| Pressure | 5 psi to 100 psi |
| Product Application | Gripping |
| Repeatability | -0.001" to +0.001" |
| Spindle Included | No |
| Standard Temp. Range | -30°F to +180°F |
| Stroke | 1/4" |
| Viton Temp. Range | -20°F to +250°F |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.96 |
| Ship length (cm) | 1.91 |
| Ship width (cm) | 4.45 |
