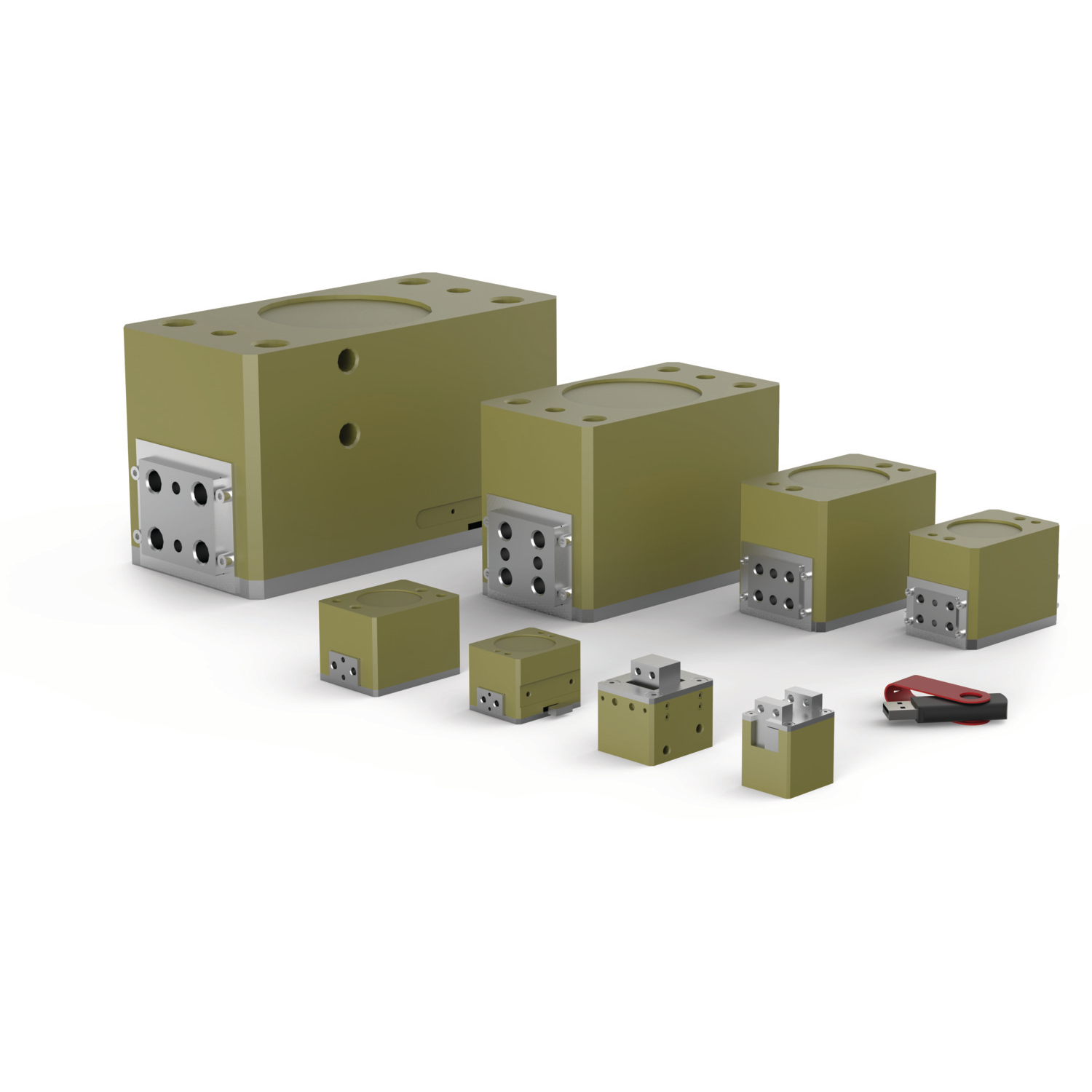

DESTACO RP-12M Parallel Gripper, Parallel, 63 mm Open Width, 54 mm Closed Width, Double, M5 Port Size, RP
Item: CT9CJXModel: RP-12MCross Ref: 28WH21
7 In Stock
Ships within 2 days via
5.00% off
€1,377.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gripper |
| Action Type | Double |
| Body Material | Aluminum |
| Bore Size | 25.4 mm |
| Closed Width | 54 mm |
| Dimensions A | 63 mm |
| Dimensions B | 54 mm |
| Finger Material | Carbon Steel |
| Grip Force Rated Pressure | 100 psi |
| Gripping Type | Parallel |
| Height | 35.6 mm |
| Length | 2 mm |
| Max. Operating Pressure | 100 psi |
| Max. Operating Temp. | 80°C |
| Max. Pressure | 100 psi |
| Min. Operating Pressure | 40 psi |
| Min. Operating Temp. | -35°C |
| Opening Width | 63 mm |
| Opening/closing Stroke | 9.5 mm |
| Operating Temp. | -30°F to +180°F |
| Overall Height | 35.6 mm |
| Overall Length | 38.1 mm |
| Overall Width | 54 mm |
| Port Size | M5 |
| Seal Material | Buna N |
| Series | RP Series |
| Size | 12 |
| Stroke Length | 9.5 mm |
| Total Grip Force | 178N |
| Type | Parallel |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 5.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Min. Operating Pressure | Stroke Length | Overall Width | Finger Material | Port Size | Bore Size | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RP-5-FS | 1" | 40 psi | 1/8" | 1" | Steel | - | - | - | €1,371.44 | |
 |
RP-10 | 1 1/4" | 40 psi | 1/4" | 1 1/2" | Carbon Steel | M5 | 1" | 10 | €1,369.29 | |
 |
RP-11 | 1 1/8" | 40 psi | 1/4" | 1 1/2" | Carbon Steel | M5 | 1" | 11 | €1,586.07 | |
 |
RP-19 | 4" | 40 psi | 2" | 8 1/2" | Carbon Steel | g1/4" | 3 1/2" | 19 | €7,616.70 | |
 |
RP-17M | - | - | - | - | - | g1/8" | 46.1 mm | 17 | €2,497.53 | |
 |
RP-18M | 74.9 mm | 40 psi | 31.8 mm | 146 mm | Carbon Steel | g1/8" | 63.5 mm | 18 | €3,600.36 | |
 |
RP-10M | - | - | - | - | - | M5 | 25.4 mm | 10 | €1,423.39 |
