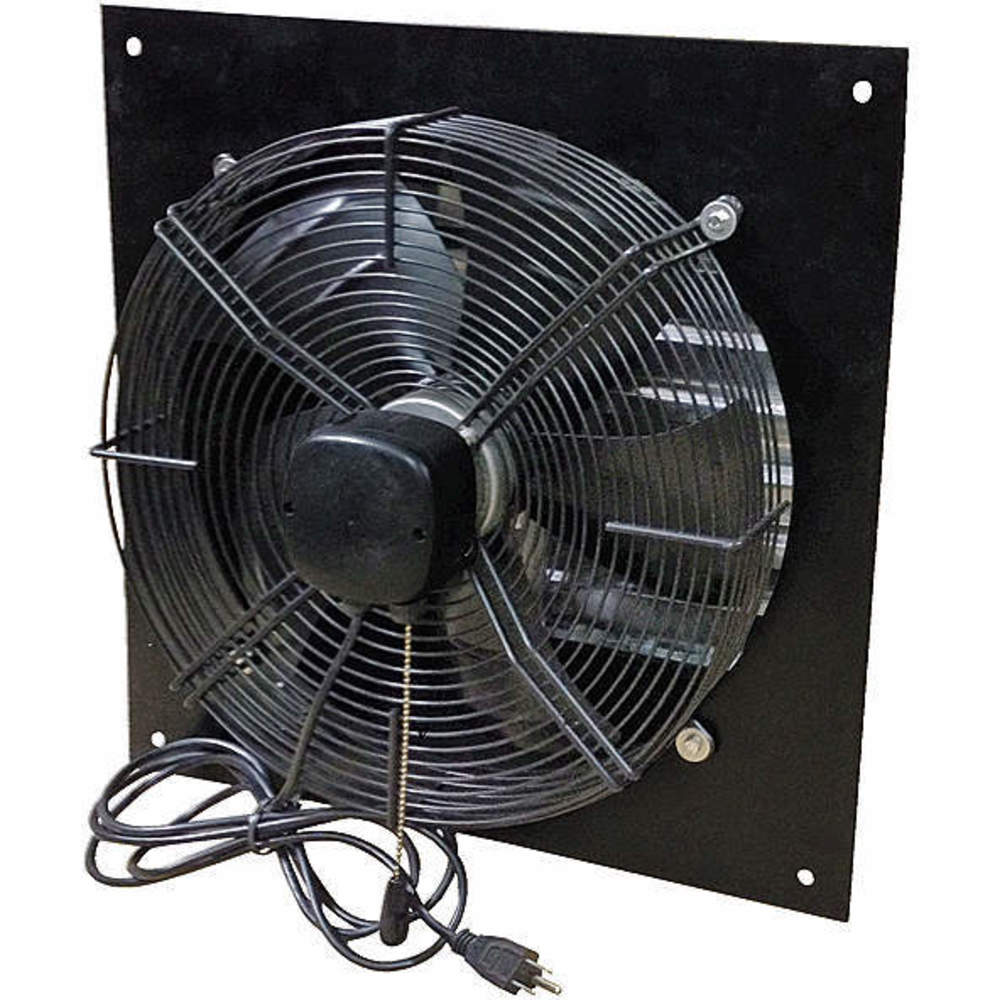

DELHI XFS20 Exhaust Shutter Fan 1/4 Hp 115v 20 Inch
Get it by Friday, Jul 3
€641.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Exhaust Shutter Fan |
| Assembled | Assembled |
| Bearing Type | Sealed Ball |
| Blade Dia. | 20" |
| Blade Material | Steel |
| Cfm @ 0.000 In Sp | 3300/2900 CFM |
| Electrical Connection | Plug In |
| Exhaust Airflow @ 0.125 In Sp | 3300 CFM |
| Fits Square Opening | 22" x 22" |
| For Cut-out Height | 22" |
| For Cut-out Width | 22" |
| Frame Color | Black |
| Frame Finish | Powder Coating |
| Frame Material | Steel |
| Guard Material | Steel |
| Height | 24 7/8" |
| Hp | 1/4 hp |
| Max. Ambient Temp. | 40°C |
| Max. Exhaust Airflow @ 0.000 In Sp | 3300 CFM |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Enclosure Design | Totally Enclosed |
| Motor Hp | 1/4 hp |
| Motor Insulation | Class A |
| Motor Speed | 1140 RPM , 1140/1050 RPM |
| Motor Type | Outside Rotor Motor |
| No. Of Blades | 5 |
| No. Of Speed | 2 |
| Noise Level @ 0.000 In Sp @ 5 Ft | 17 sones |
| Phase | 1 |
| Square Opening Required | 22" |
| Thermal Protection | Yes |
| Voltage | 115V AC |
| Wire Guard Finish | Powder Coat |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 67.56 |
| Ship length (cm) | 67.31 |
| Ship width (cm) | 30.48 |
| HS code | 8414596095 |
Product Details:
- Speed Control Item Number (CN5061)
Product Variants
| Model | Blade Dia. | For Cut-out Height | For Cut-out Width | Motor Hp | Motor Speed | Max. Exhaust Airflow @ 0.000 In Sp | Exhaust Airflow @ 0.125 In Sp | Noise Level @ 0.000 In Sp @ 5 Ft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| XFS12 | 12" | 14" | 14" | 1/12 hp | 1600 RPM | 1100 CFM | 1100 CFM | 8 sones | €336.44 | |
| XFS16 | 16" | 18" | 18" | 1/8 hp | 1630 RPM | 2300 CFM | 2300 CFM | 8 sones | €443.47 | |
| XFS24 | 24" | 26" | 26" | 1/2 hp | 1140 RPM | 4700 CFM | 4700 CFM | 21 sones | €841.67 |
