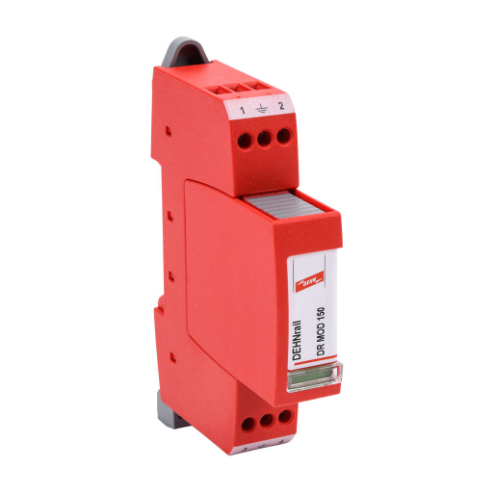

DEHN 953209 Surge Protective Device, 35mm Din Rail Mount
Get it by Monday, Dec 22
€113.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Surge Protective Device |
| Atex Approvals | TV 22 Atex 8930 x II 3 G Ex Ec Iic T4 GC |
| Capacity | 1 Module, DIN 43880 |
| Combination Wave (uoc) | 4 kV |
| Combination Wave L+n-pe (uoctotal) | 8 kV |
| Cross-sectional Area (min.) | 0.5 sq. mm. Solid, Flexible |
| Cross-sectional Area For Remote Signalling Terminals | Max. 1.5 Sq. Mm. Solid Mm, Flexible |
| Degree Of Protection | Ip 20 |
| Enclosure Material | Thermoplastic, Red, Ul 94 V-0 |
| For Mounting On | 35 Mm Din Rail Acc. to En 60715 |
| Iecex Approvals | Iecex Tur 22.0080X Ex Ec Iic T4 Gc |
| Max. Continuous Frequency | 50/60 Hz |
| Max. Continuous Operating Voltage (a.c.) (uc) | 150V |
| Max. Continuous Operating Voltage (d.c.) (uc) | 150V |
| Max. Flexible Cross-sectional Area | 2.5 sq. mm |
| Max. Mains-side Overcurrent Protection | 25A GG, B 25A |
| Max. Solid Cross-sectional Area | 4 sq. mm |
| Nominal Discharge Current (8/20 µs) (in) | 2 kA |
| Nominal Frequency | 50/60 Hz |
| Nominal Load Current (a.c.) (il) | 25A |
| Nominal Voltage (a.c.) (un) | 120V |
| Number Of Ports | 1 |
| Operating State/fault Indication | Green, Red |
| Operating Temperature Range (tu) | -40°C to +80°C |
| Place Of Installation | Indoor Installation |
| Product Datasheet | dehn-908013.pdf |
| Response Time [l-n] (ta) | Less Than Equal to 25 nsec. |
| Response Time [l/n-pe] (ta) | Less Than Equal To 100 nsec. |
| Short-circuit Withstand Capability For Mains-side Overcurrent Protection With 25 A Gg (isccr) | 6 kA |
| Spd According To En 61643-11 / Iec 61643-11 | Type 3, Class Iii |
| Switching Capacity (a.c.) | 250V, 0.5A |
| Switching Capacity (d.c.) | 250V, 0.1A, 125V, 0.2A, 75V, 0.5A |
| Total Discharge Current (8/20 µs) L+n-pe (itotal) | 4 kA |
| Type Of Remote Signalling Contact | Change Over Contact |
| Voltage Protection Level [l-n] / [l/n-pe] (up) | Less Than Equal to 640, Less Than Equal to 800 V |
Shipping Info:
| Ship weight (kg) | 0.09 |
| HS code | 853630 |
| Country of Origin | DE |
