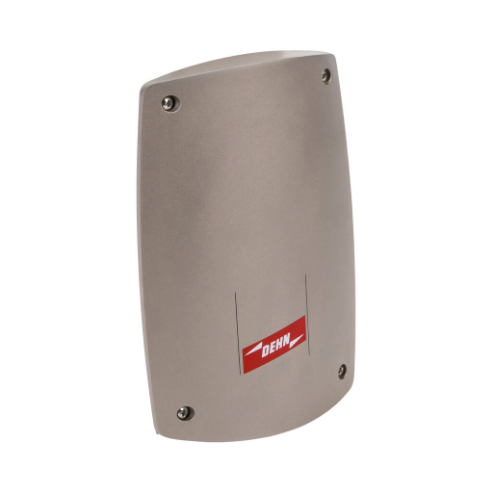

DEHN 929221 Surge Protective Device, IP66, Pole Or Wall Mount
Get it by Friday, Dec 19
€711.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Surge Protective Device |
| C2 Nominal Discharge Current (8/20 µs) Line-line (in) | 400A |
| C2 Nominal Discharge Current (8/20 µs) Line-pg (in) | 2.5 kA |
| C2 Total Nominal Discharge Current (8/20 µs) (in) | 10 kA |
| Colour | Grey |
| Connection (input / Output) | Rj45 Socket, Rj45 Socket |
| Cut-off Frequency (fg) | 250 MHz |
| D1 Lightning Impulse Current (10/350 µs) Per Line (iimp) | 0.8 kA |
| D1 Total Lightning Impulse Current (10/350 µs) (iimp) | 4 kA |
| Degree Of Protection (with Installed Cables) | Ip 66 |
| Earthing Via | Enclosure With Pole, Wall Bracket |
| Enclosure Material | Aluminium Die-Cast, Powder-Coated |
| External Accessories | Tensioning Straps For Pole Mounting Available Separately (Part No. 540 200 and 200 039) |
| For Mounting On | Pole, Wall |
| Max. Continuous Operating Voltage (a.c.) (uc) | 6V |
| Max. Continuous Operating Voltage (d.c.) Pair-pair (poe) (uc) | 60V |
| Max. Continuous Operating Voltage D.c. Line-line (uc) | 8.5V |
| Nominal Current (il) | 1A |
| Nominal Voltage (un) | 5V |
| Operating Temperature Range (tu) | -40°C to +80°C |
| Pinning | 1/2, 3/6, 4/5, 7/8 |
| Product Datasheet | dehn-908013.pdf |
| Spd Class | T Class |
| Test Standards | Iec 61643-21, En 61643-21 |
| Voltage Protection Level Line-line At 1 Kv/µs C3 (up) | Less Than Equal to 180V |
| Voltage Protection Level Line-line For Inc2 (poe) (up) | Less Than Equal to 120V |
| Voltage Protection Level Line-line For Inc2 (up) | Less Than Equal to 170V |
| Voltage Protection Level Line-pg At 1 Kv/µs C3 (up) | Less than Equal to 500V |
| Voltage Protection Level Line-pg For Inc2 (up) | Less Than Equal to 600V |
| Voltage Protection Level Pair-pair At 1 Kv/µs C3 (poe) (up) | Less Than Equal to 120V |
Shipping Info:
| Ship weight (kg) | 0.77 |
| HS code | 853630 |
| Country of Origin | DE |
Documentation:
