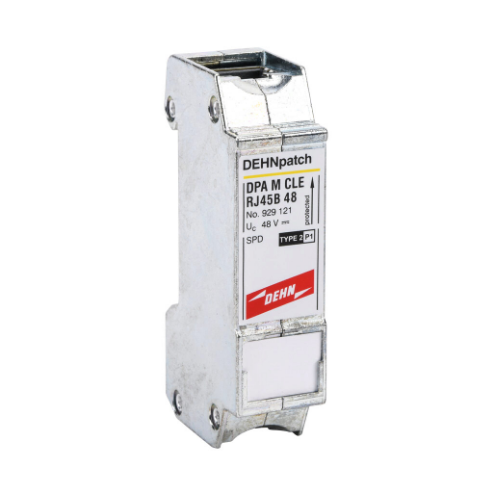

DEHN 929121 Surge Protective Device, 35mm Din Rail Mount
Get it by Monday, Dec 22
€237.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Surge Protective Device |
| C2 Nominal Discharge Current (8/20 µs) Line-line (in) | 150A |
| C2 Nominal Discharge Current (8/20 µs) Line-pg (in) | 2.5 kA |
| C2 Nominal Discharge Current (8/20 µs) Pair-pair (poe) (in) | 150A |
| C2 Total Nominal Discharge Current (8/20 µs) (in) | 10 kA |
| Capacitance Line-line (c) | Less Than Equal to 30 pF |
| Capacitance Line-pg (c) | Less Than Equal to 25 PF |
| Colour | Bare Surface |
| Connection (input / Output) | Rj45 Socket, Rj45 Socket |
| Cut-off Frequency (fg) | 250 MHz |
| D1 Lightning Impulse Current (10/350 µs) Per Line (iimp) | 0.5 kA |
| Degree Of Protection | IP 10 |
| Earthing Via | 35 mm Din Rail Acc. To EN 60715 |
| Enclosure Material | Zinc Die-Casting |
| External Accessories | Fixing Material |
| For Mounting On | 35 Mm Din Rail Acc. to En 60715 |
| Insertion Loss At 250 Mhz | Less Than Equal to 3 Db |
| Max. Continuous Operating Voltage (a.c.) (uc) | 34V |
| Max. Continuous Operating Voltage (d.c.) (uc) | 48V |
| Max. Continuous Operating Voltage (d.c.) Pair-pair (poe) (uc) | 57V |
| Nominal Current (il) | 1A |
| Nominal Voltage (un) | 48V |
| Operating Temperature Range (tu) | -40°C to +80°C |
| Pinning | 1/2, 3/6, 4/5, 7/8 |
| Product Datasheet | dehn-908013.pdf |
| Spd Class | T Class |
| Test Standards | Iec 61643-21, En 61643-21 |
| Voltage Protection Level Line-line At 1 Kv/µs C3 (up) | Less Than Equal to 180V |
| Voltage Protection Level Line-line For Inc2 (poe) (up) | Less Than Equal to 600V |
| Voltage Protection Level Line-line For Inc2 (up) | Less Than Equal to 180V |
| Voltage Protection Level Line-pg At 1 Kv/µs C3 (up) | Less than Equal to 500V |
| Voltage Protection Level Line-pg For Inc2 (up) | Less Than Equal to 500V |
| Voltage Protection Level Pair-pair At 1 Kv/µs C3 (poe) (up) | Less Than Equal to 600V |
Shipping Info:
| Ship weight (kg) | 0.09 |
| HS code | 853630 |
| Country of Origin | DE |
