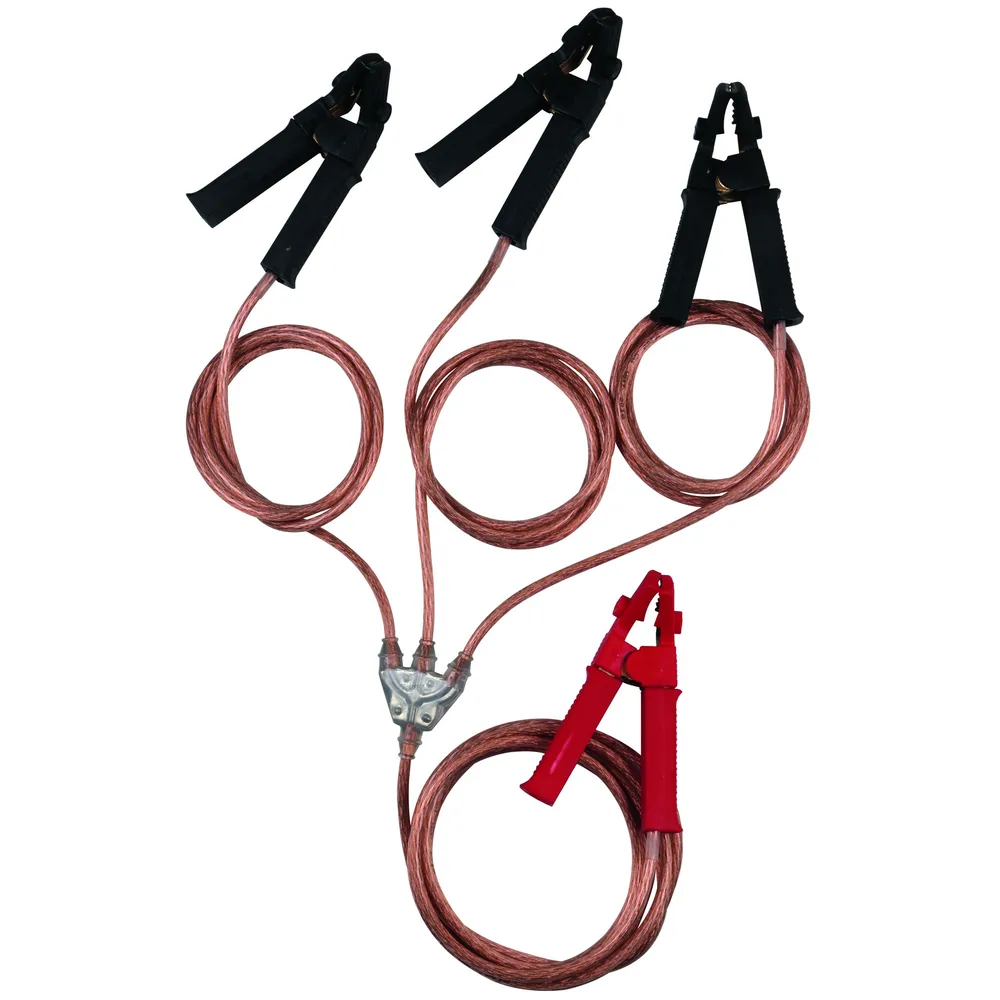

DEHN 758099 Equipotential Bonding Device
Get it by Tuesday, Aug 18
€962.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Cable Cross Section | 16 sq. mm |
| Cable Length (a/b/c) | 1750 mm |
| Cable Length (d) | 3200 mm |
| Cable Sheath | Transparent |
| Cable Structure | Bare Fine-Stranded Cu Wire According To Vde 0295-6 |
| Clamping Range | 5 mm to 25 mm |
| Color (clamp A, B, C) | Black |
| Color (clamp D) | Red |
| Colour (clamp A/b/c) | Black |
| Colour Clamp D | Red |
| Dielectric Strength (cable Sheath) | 10 kV/mm |
| Insulating Wall Thickness | 1.2 mm |
| Insulation | PVC Compound Tm2 According To Hd21.1 |
| Max. Continuous Operating Amps | 10A |
| Operating Temp. Range | -30°C to +50°C |
| Operating Temp. Range (tu) | -30°C to +50°C |
| Operating Temperature Range | -30°C to +50°C |
| Possible Clamp Operations | > 500 , Greater Than 500 |
| Product Datasheet | dehn-758099.pdf |
| Storage Temp. | -40°C to +70°C |
| Wall Thickness (insulation) | 1.2 mm |
Shipping Info:
| Ship weight (kg) | 3.19 |
| Ship height (cm) | 16 |
| Ship width (cm) | 22.5 |
Documentation:
Product Variants
| Product | Model | Total Length (lg) | Tube Length | Cable Cross Section | Cable Sheath | Clamping Range | Material Contact Electrode | Possible Clamp Operations | Cable Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
758001 | 2050 mm | 2000 mm | 16 sq. mm | Transparent | Up To 20 mm | Cu Alloy, gal. Sn | - | 3500 mm | €607.26 | |
 |
758003 | 2050 mm | 2000 mm | 16 sq. mm | Transparent | Up To 18 mm | Cu Alloy, gal. Sn | - | 3500 mm | €504.51 | |
 |
758015 | 1725 mm | 1500 mm | 25 sq. mm | Transparent | Up To 30 mm | - | - | 3500 mm | €975.69 | |
 |
758020 | 550 mm | 465 mm | 16 sq. mm | Transparent | Up To 20 mm | - | - | 3500 mm | €425.82 | |
|
758021 | 550 mm | 465 mm | 16 sq. mm | Transparent | 0 mm to 16 mm, 0 mm to 13 mm | - | - | 3500 mm | €348.36 | |
 |
758022 | 550 mm | 465 mm | 10 sq. mm | Red silicone cable | - | - | - | 3500 mm | €325.68 | |
 |
758025 | 1500 mm | 1310 mm | 16 sq. mm | Transparent | - | - | - | 3500 mm | €465.84 |
