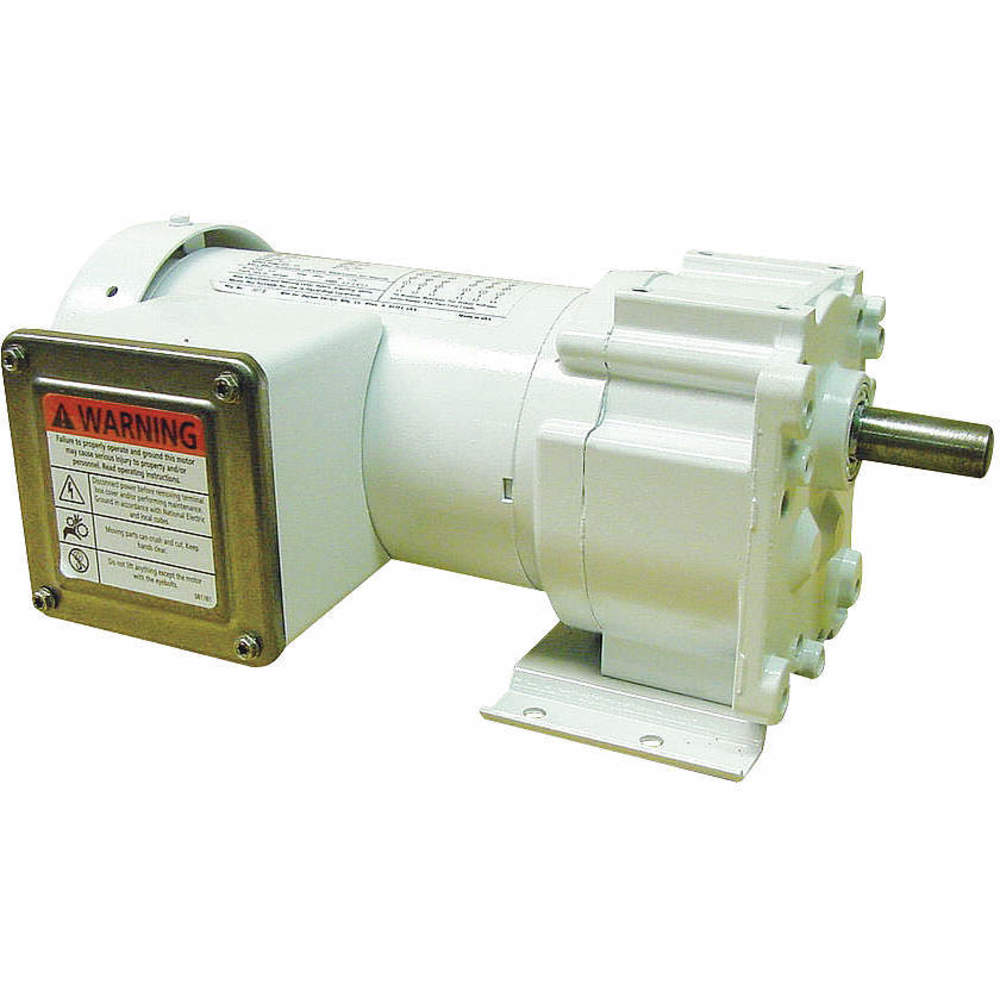

DAYTON M1145150.00 Ac Gearmotor 156 Rpm Tefc 115/230v
Get it by Friday, Aug 21
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,598.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Agma Gear Class | Class 9 |
| Amps | 2/1A |
| Application | Washdown |
| Bearing Type | Roller On Case, Ball On Motor |
| Brake Type | None |
| Capacitor Required | Yes |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Finish | White Epoxy |
| Frame | 38 |
| Frequency | 50/60 Hz |
| Full Load Amps | 2/1A |
| Gear Case Material | Die Cast Aluminium |
| Gear Material | Hardened Steel |
| Gear Ratio | 11:1 |
| Gear Type | Helical, Spur |
| Gearmotor Shaft Type | Single |
| Housing Material | Rolled Steel |
| Housing Material Finish | White Epoxy |
| Included Capacitor | Capacitor Included |
| Input Hp | 0.167 hp , 1/6 hp |
| Insulation Class | Class F |
| Key Way Size | 3/16" x 1" |
| Keyway Type | 0.1875 Sq. in. x 1" |
| Length Less Shaft | 11 3/4" |
| Lubrication | Permanent Heavy Duty Gear Oil |
| Max. Ambient Temp. | 104°F , 40°C |
| Max. Torque | 60 lbs.-in. |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class F |
| Motor Thermal Protection | None |
| Motor Type | Permanent Split Capacitor |
| Mounting | All Position Except Shaft Up |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Mounting Type | Horizontal Or Vertical Shaft Down |
| Nameplate Speed | 151-200 RPM , 156 RPM |
| No Load Speed | 164 RPM |
| No. Of Output Shafts | 1 |
| Operating Voltage | 115/230V AC |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 3 1/2" |
| Overhung Load | 201 lbs. |
| Overhung Load Capacity | 201 lbs.-ft. |
| Phase | 1 |
| Rotation | CW, CCW |
| Rpm @ 50 Hz | 130 |
| Seal Type | Lip, Stainless Steel With Spring |
| Seals | Lip |
| Service Factor | 1 |
| Shaft | Single Output |
| Shaft Orientation | Parallel |
| Speed | 151-200 RPM |
| Speed @ 50 Hz | 130 RPM |
| Starting Torque | 85 lbs.-in. |
| Thermal Protection | No |
| Type | Permanent Split Capacitor |
Shipping Info:
| Ship weight (kg) | 8.97 |
| Ship height (cm) | 17.02 |
| Ship length (cm) | 42.67 |
| Ship width (cm) | 19.81 |
| HS code | 8501404020 |
| Country of Origin | US |
Product Variants
| Model | Nameplate Speed | Mounting | Operating Voltage | Frequency | Max. Torque | Housing Material | Full Load Amps | Output Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1L518 | 95 RPM | All Position | 230V AC | 50/60 Hz | 30 lbs.-in. | Rolled Steel | 0.3A | 1/2" | €689.80 | |
| 1L519 | 8.8 RPM | All Position | 230V AC | 50/60 Hz | 76 lbs.-in. | Rolled Steel | 0.2A | 1/2" | €729.18 | |
| 1L530 | 124 RPM | All Position | 230V AC | 50/60 Hz | 25 lbs.-in. | Rolled Steel | 0.3A | 1/2" | €703.72 | |
| 1L532 | 1.2 RPM | All Position | 230V AC | 50/60 Hz | 100 lbs.-in. | - | 0.2A | 1/2" | €725.63 | |
| 1LPL3 | 20 RPM | All Position | 115/230V AC | 50/60 Hz | 250 lbs.-in. | Die Cast Zinc | 1.2/0.63A | 3/4" | €1,074.80 | |
| 1LPL4 | 12 RPM | All Position | 115/230V AC | 50/60 Hz | 400 lbs.-in. | Die Cast Zinc | 1.2/0.63A | 3/4" | €1,066.29 | |
| 1LPL5 | 6 RPM | All Position | 115/230V AC | 50/60 Hz | 600 lbs.-in. | Die Cast Zinc | 1.2/0.63A | 3/4" | €1,090.38 |
