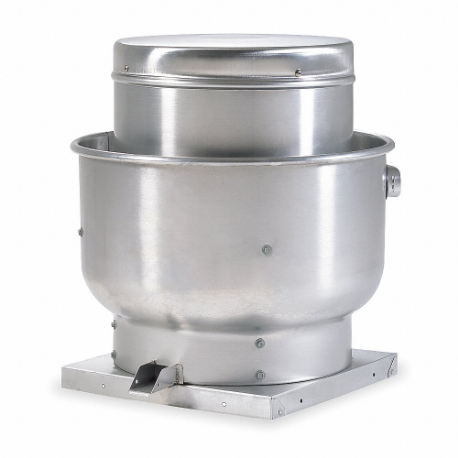

DAYTON 7YR06 Centrifugal Upblast Roof Exhaust Fan, Belt Drive, 18 1/2 Inch Wheel, 2, 815 cfm, ODP
Get it by Monday, Aug 17
5.00% off
€1,656.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Exhaust Fan |
| Amps | 4.6/2.2-2.3A |
| Application | Industrial And Commercial Buildings, Restaurants, Schools |
| Assembled/unassembled | Unassembled |
| Assembly | Unassembled |
| Base Dia. | Not Applicable |
| Base Height | 1 4/5" |
| Base Length | 30" |
| Base Shape | Square |
| Base Size | 30" x 30" |
| Base Width | 30" |
| Bearing Type | Regreasable Pillow Block |
| Brake Hp | 13/50 hp |
| Compatible Curb Grainger Part No. | 2RB79, 2ZV84, 3C438, 4C455, 4HX41, 4HX49, 4HX57, 4HX62 |
| Compatible Damper Grainger Part Number | 4HX67 |
| Damper Size | 23" x 23" |
| Dimensions A | 30" |
| Dimensions B | 35 3/8" |
| Dimensions C | 34 3/4" |
| Dimensions D | 21" |
| Drive Package Included | Yes |
| Drive Package With Motor Included | Yes |
| Drive Type | Belt Drive |
| Duty Rating | Standard |
| Exhaust Airflow @ 0.000 In Sp | 2815 CFM |
| Exhaust Airflow @ 0.250 In Sp | 2448 CFM |
| Exhaust Airflow @ 0.500 In Sp | 1763 CFM |
| Features | Air Handling Quality Bearings Meet Minimum Of L10-100,000 Hours, Nonoverloading Centrifugal Wheel Design |
| For Air Type | Kitchen Air |
| For High-static Pressure Applications | No |
| For Use With Grainger Item Number | 2RB79, 2ZV84, 3C438, 4C455, 4HX41, 4HX49, 4HX57, 4HX62, 4HX67 |
| Frequency | 60 Hz |
| High-efficiency Motor | No |
| Housing Length | 35 2/5" |
| Housing Material | Aluminum |
| Housing Material Fabrication | Spun |
| Housing Width | 35 2/5" |
| Included | Drive Package, NEMA 1 Junction Box |
| Included Drive Package | Yes |
| Included Drive Package With Motor | Yes |
| Included Motor | Yes |
| Max. Fan Speed | 745 RPM |
| Max. Inlet Air Temp. | 300°F |
| Max. Static Pressure | 0.5 in. wc |
| Motor Enclosure | Open Dripproof |
| Motor Hp | 1/4 hp |
| Motor Location | Out Of Airstream |
| Motor Speed | 745 RPM |
| Mounting Location | Roof |
| Mounting Type | Roof Curb |
| No. Of Speed | 1 |
| Overall Dia. | 35 3/8" |
| Overall Height | 36 1/2" |
| Phase | 1 |
| Propeller Shaft Dia. | 3/4" |
| Requires | Roof Curb For New Installations |
| Safety Features | Fully Rolled Windband |
| Shaft Dia. Wheel End | 3/4" |
| Sound Level | 7.1 sones @ 0.500 In SP, 7.4 sones @ 0.375 In SP, 8.1 sones @ 0.250 In SP, 8.6 sones @ 0.125 In SP, 9.2 sones @ 0.000 In SP |
| Speed Controllable | No |
| Voltage | 115/208-230V AC |
| Wheel Dia. | 18 1/2" |
| Wheel Material | Aluminum |
| Wheel Type | Backward Inclined |
Shipping Info:
| Ship weight (kg) | 60.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Wheel Dia. | Wheel Material | Mounting Location | Housing Material | Motor Hp | Max. Inlet Temp. | Shaft Dia. Sheave End | Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 16D522 | 11 1/4" | Aluminum | Roof | Aluminum | 1/4 hp to 1/3 hp | 300°F | 3/4" | 1660-1820 RPM | €1,328.38 | |
| 16D523 | 12 1/2" | Aluminum | Roof | Aluminum | 1/4 hp to 1/2 hp | 300°F | 3/4" | 1410-1725 RPM | €1,384.13 | |
| 16D524 | 14 3/4" | Aluminum | Roof | Aluminum | 1/4 hp to 1 hp | 300°F | 3/4" | 1105-1725 RPM | €1,565.66 | |
| 1DYK4 | 14 3/4" | Steel | Roof | Steel | 1/4 hp to 1 hp | 400°F | 1" | 1105-1725 RPM | €4,686.62 | |
| 1DYK5 | 16 1/2" | Steel | Roof | Steel | 1/4 hp to 1 hp | 400°F | 1" | 875-1390 RPM | €4,393.56 | |
| 1DYK6 | 18 1/2" | Steel | Roof | Steel | 1/4 hp to 2 hp | 400°F | 1" | 745-1495 RPM | €4,863.66 | |
| 1DYK7 | 21 1/4" | Steel | Roof | Steel | 1/4 hp to 2 hp | 400°F | 1" | 605-1210 RPM | €5,178.20 |
