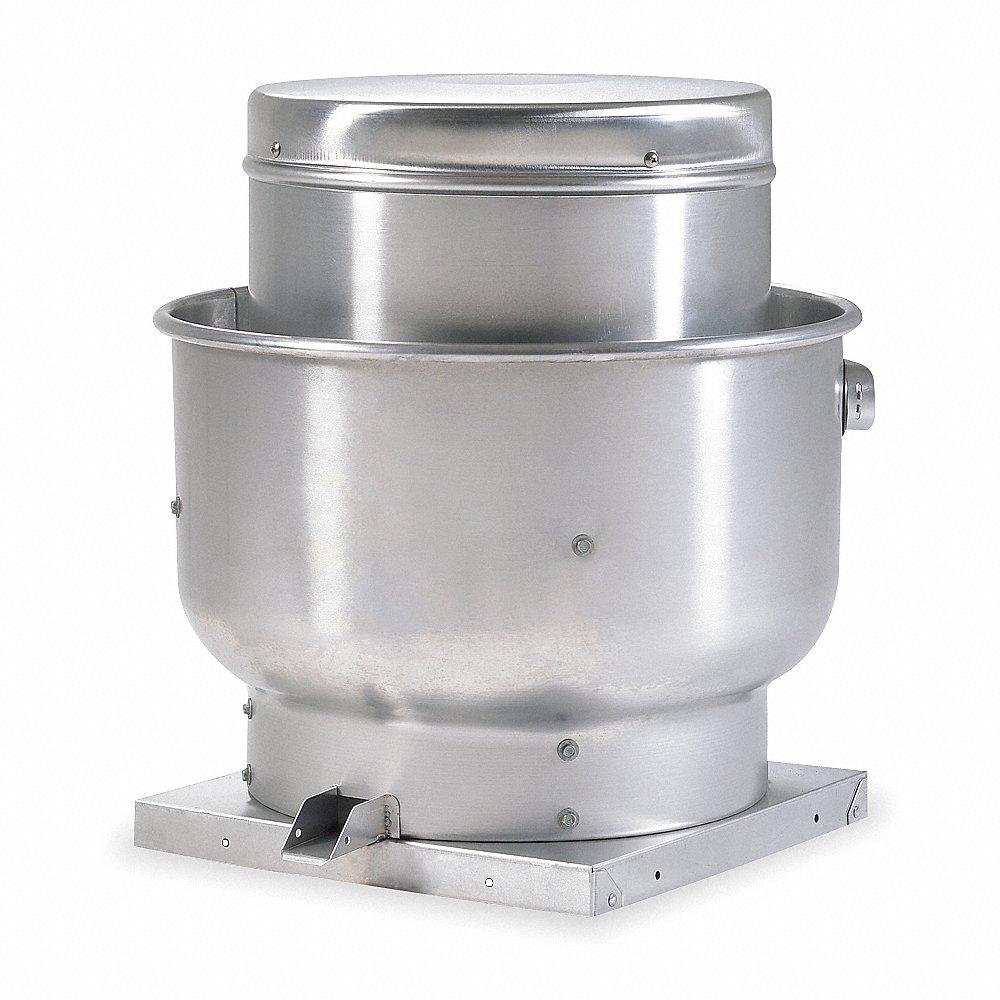

DAYTON 7M7U4 Upblast Ventilator, 14 3/4 Inch Wheel Dia., 115/208/230V AC, 3/4 HP Motor
Get it by Friday, Feb 13
10.00% off
€2,261.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Upblast Ventilator |
| Amps | 11.6/5.9-5.8A |
| Application | Industrial And Commercial Buildings, Restaurants, Schools |
| Assembled/unassembled | Unassembled |
| Assembly | Unassembled |
| Base Dia. | Not Applicable |
| Base Height | 1 4/5" |
| Base Length | 26" |
| Base Shape | Square |
| Base Size | 26" x 26" |
| Base Width | 26" |
| Bearing Type | Sealed Pillow Block |
| Brake Hp | 39/50 bhp |
| Compatible Curb Grainger Part No. | 2RB77, 2ZV83, 3C437, 4C454, 4HX40, 4HX48, 4HX56, 4HX62 |
| Compatible Damper Grainger Part Number | 4HX66 |
| Damper Size | 19" x 19" |
| Dimension A | 26" |
| Dimension B | 28 7/8" |
| Dimension C | 26 3/8" |
| Dimension D | 19 3/8" |
| Drive Package Included | Yes |
| Drive Package With Motor Included | Yes |
| Drive Type | Belt Drive |
| Duty Rating | Standard |
| Electrical Connection | Power Cord |
| Exhaust Airflow @ 0.500 In Sp | 1592 CFM |
| Features | Air Handling Quality Bearings Meet Minimum Of L10-100, 000 Hours, Nonoverloading Centrifugal Wheel Design |
| For Air Type | Kitchen Air |
| For High-static Pressure Applications | Yes |
| Frequency | 60 Hz |
| High-efficiency Motor | No |
| Housing Length | 28.9" |
| Housing Material | Aluminum |
| Housing Material Fabrication | Spun |
| Housing Width | 28.9" |
| Includes | Drive Package, NEMA 1 Junction Box |
| Includes Drive Package | Yes |
| Includes Drive Package With Motor | Yes |
| Includes Motor | Yes |
| Maximum Fan Speed | 2110 RPM |
| Maximum Inlet Air Temperature | 300°F |
| Maximum Static Pressure | 2.75 in. wc |
| Motor Enclosure | Open Dripproof |
| Motor Hp | 3/4 hp |
| Motor Location | Out Of Airstream |
| Motor Speed | 2110 RPM |
| Mount Type | Roof Curb |
| Mounting Location | Roof |
| Nameplate Voltage | 115/208-230V AC |
| Number Of Speeds | 1 |
| Overall Dia. | 28 7/8" |
| Overall Height | 28 1/8" |
| Phase | 1 |
| Propeller Shaft Dia. | 3/4" |
| Requires | Roof Curb For New Installation |
| Resistance Properties | Spark Resistant |
| Safety Features | Fully Rolled Windband |
| Shaft Dia. Wheel End | 3/4" |
| Sound Level | 18.3 Sones @ 2.500 in Sp And 5 Ft, 18.5 Sones @ 2.250 in Sp And 5 Ft, 18.6 Sones @ 2.000 in Sp And 5 Ft, 18.8 Sones @ 1.750 in Sp And 5 Ft, 18.9 Sones @ 1.500 in Sp And 5 Ft, 19.0 Sones @ 1.250 in Sp And 5 Ft, 19.1 Sones @ 1.000 in Sp And 5 Ft, 19.2 Sones @ 0.875 in Sp And 5 Ft, 19.3 Sones @ 0.750 in Sp And 5 Ft, 19.6 Sones @ 0.625 in Sp And 5 Ft, 19.8 Sones @ 0.500 in Sp And 5 Ft, 20.0 Sones @ 2.750 in Sp |
| Spark Resistant Construction Type | A |
| Speed Controllable | No |
| Wheel Dia. | 14 3/4" |
| Wheel Material | Aluminum |
| Wheel Type | Backward Inclined |
Shipping Info:
| Ship weight (kg) | 40.83 |
Product Variants
| Model | Wheel Material | Mounting Location | Housing Material | Overall Height | Drive Type | Max. Inlet Temp. | Motor Hp | Wheel Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 16D522 | Aluminum | Roof | Aluminum | 26 7/8" | Belt Drive | 300°F | 1/4 hp to 1/3 hp | - | €1,411.40 | |
| 16D523 | Aluminum | Roof | Aluminum | 26 7/8" | Belt Drive | 300°F | 1/4 hp to 1/2 hp | - | €1,470.64 | |
| 16D524 | Aluminum | Roof | Aluminum | 28 1/8" | Belt Drive | 300°F | 1/4 hp to 1 hp | - | €1,663.51 | |
| 1DYK4 | Steel | Roof | Steel | 36 1/4" | Belt Drive | 400°F | 1/4 hp to 1 hp | - | €4,979.54 | |
| 1DYK5 | Steel | Roof | Steel | 36 1/4" | Belt Drive | 400°F | 1/4 hp to 1 hp | - | €4,668.16 | |
| 1DYK6 | Steel | Roof | Steel | 40 1/4" | Belt Drive | 400°F | 1/4 hp to 2 hp | - | €5,167.64 | |
| 1DYK7 | Steel | Roof | Steel | 40 1/4" | Belt Drive | 400°F | 1/4 hp to 2 hp | - | €5,501.84 |
