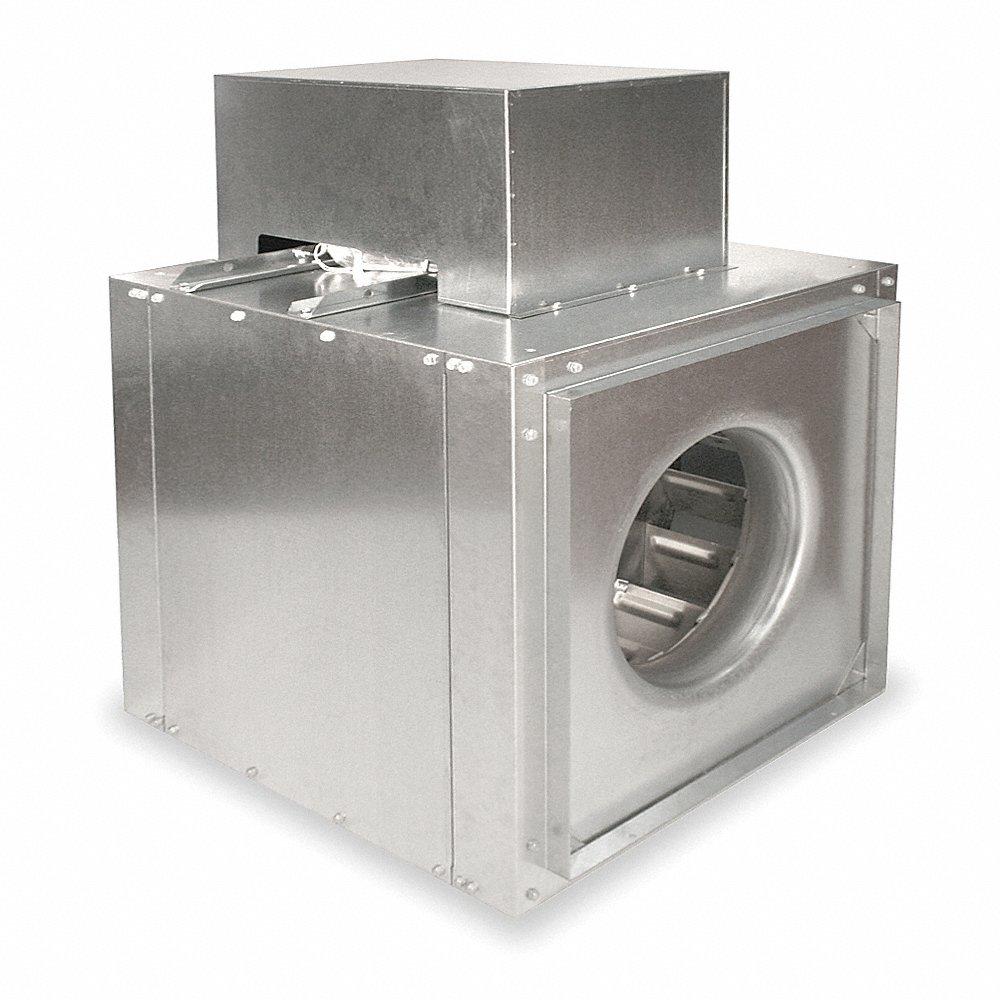

DAYTON 7M7R7 Inline Duct Blower, 11 Inch Size, 208 To 230/460V, 1/2 HP
Get it by Tuesday, Dec 23
10.00% off
€2,480.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | In-Line Duct Blower |
| Airflow @ 0.000 In Sp | 952 CFM |
| Airflow @ 0.125 In Sp | 924 CFM |
| Airflow @ 0.250 In Sp | 897 CFM |
| Airflow @ 0.250 In Sp Range | 0-1999 CFM |
| Airflow @ 0.375 In Sp | 870 CFM |
| Airflow @ 0.500 In Sp | 842 CFM |
| Airflow @ 0.625 In Sp | 813 CFM |
| Airflow @ 0.750 In Sp | 784 CFM |
| Airflow @ 1.000 In Sp | 716 CFM |
| Airflow @ 1.250 In Sp | 643 CFM |
| Airflow @ 1.500 In Sp | 563 CFM |
| Airflow @ 1.75 In Sp | 445 CFM |
| Assembly | Unassembled |
| Bearing Type | Sealed Pillow Block |
| Current | 2.5A |
| Drive Type | Belt Drive |
| Features | Bearing Cover And Motor Cover Included To Help In Lengthening Service Life, Collars Simplify Duct Connections, And Panels On Each Side To Provide Quick Access To Internal Fan Components |
| For Air Type | Clean |
| For Ventilation Type | Exhaust, Make Up, Return, Supply |
| Frequency | 60 Hz |
| Housing Material | Steel |
| Housing Material Finish | Galvanized |
| Includes | Access Panel |
| Includes Drive Package With Motor | Yes |
| Inlet Diameter | 7.7" |
| Inlet Duct Connection Height | 11 7/8" |
| Inlet Duct Connection Width | 11 7/8" |
| Manufacturer Warranty Length | 1 yr. Limited |
| Maximum Fan Speed | 2310 RPM |
| Maximum Inlet Air Temperature | 160°F |
| Maximum Static Pressure | 1.5 in. wc |
| Motor Enclosure | Open Dripproof |
| Motor Horsepower | 1/2 hp |
| Motor Speed | 1725 RPM |
| Mounting Orientation | Multiposition |
| Nameplate Voltage | 208-230/460V AC |
| Outlet Diameter | 7 3/4" |
| Outlet Duct Connection Height | 11 3/4" |
| Outlet Duct Connection Width | 11 3/4" |
| Overall Depth | 21" |
| Overall Height | 15" |
| Overall Width | 15" |
| Phase | 3 |
| Shaft Diameter | 3/4" |
| Sound Level | 23 Sones @ 0.000 in Sp And 5 Ft, 23 Sones @ 0.125 in Sp And 5 Ft, 23 Sones @ 0.250 in Sp And 5 Ft |
| Wheel Diameter | 11" |
| Wheel Material | Aluminum |
| Wheel Type | Backward Inclined |
Shipping Info:
| Ship weight (kg) | 54.31 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 53.34 |
| Ship width (cm) | 38.1 |
Product Variants
| Model | Wheel Diameter | Phase | Motor Hp | Motor Type | Wheel Material | Wheel Type | Motor Speed | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7M7R4 | 11" | 1 | 1/3 hp | Capacitor-Start | Aluminum | Backward Inclined | 1725 RPM | Sealed Pillow Block | €2,485.30 | |
| 7M7R8 | 11" | 3 | 3/4 hp | - | Aluminum | Backward Inclined | 1725 RPM | Sealed Pillow Block | €2,896.10 | |
| 7M7R5 | 11" | 1 | - | Capacitor-Start | Aluminum | Backward Inclined | 1725 RPM | Sealed Pillow Block | €2,711.70 | |
| 20UD17 | 14 1/2" | 1 | 3/4 hp | Electronically Commutated | Aluminum | Backward Inclined | 1725 RPM | - | €2.48 | |
| 20UD16 | 13 1/8" | 1 | - | Electronically Commutated | Aluminum | Backward Inclined | 1725 RPM | - | €2.48 | |
| 20UD15 | 11" | 1 | 1/6 hp | Electronically Commutated | Aluminum | Backward Inclined | 1725 RPM | - | €1.24 |
