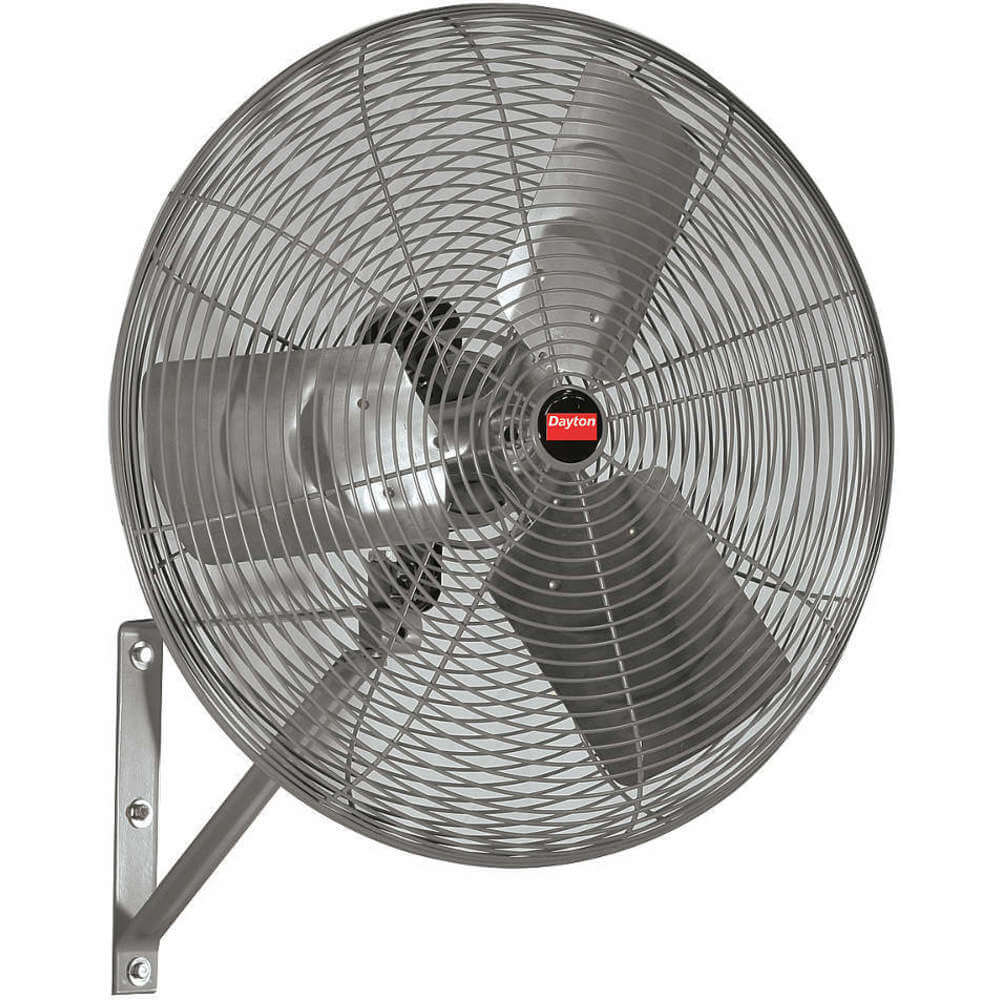

DAYTON 7DD02 Air Circulator 24 Inch 115V Non-Oscillating
Get it by Wednesday, Jul 1
5.00% off
€478.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Circulator |
| Air Velocity (fpm) @ 10 Ft. | 970/670 |
| Air Velocity (fpm) @ 20 Ft. | 570/465 |
| Air Velocity (fpm) @ 40 Ft | 230/190 |
| Air Velocity (fpm) @ 60 Ft. | 120/100 |
| Air Velocity @ 10 Ft. | 970/670 FPM |
| Air Velocity @ 20 Ft. | 570/465 FPM |
| Air Velocity @ 40 Ft. | 230/190 FPM |
| Air Velocity @ 60 Ft. | 120/100 FPM |
| Airflow | 3800/6100 CFM |
| Amps | 3.38/2.29A |
| Assembled | Yes |
| Assembly Required | No |
| Bearing Type | Ball |
| Blade Dia. | 24" |
| Blade Material | Aluminum |
| Cfm Low | 3800 |
| Cord Length | 10 ft. |
| Depth | 12 1/4" |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Accessory Style | Standard |
| Fan Cord Length | 10 ft. |
| Fan Housing Material | Steel |
| Fan Mounting Location | Ceiling, Post, Wall |
| Fan Style | Standard |
| Frequency | 60 Hz |
| Guard Material | Steel |
| Height | 27" |
| Housing Material | Steel |
| Included | Mounting Bolts, Safety Support Cable, Assembly Hardware |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 12 1/4" |
| Mobile/stationary | Stationary |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1/3 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 1075/750 RPM |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | Wall |
| No. Of Blades | 3 |
| No. Of Speed | 2 |
| Oscillating | No |
| Oscillation | Non Oscillating |
| Outside Dia. | 27" |
| Phase | 1 |
| Product Type | Standard-Duty Industrial Fan |
| Shaft Dia. | 1/2" |
| Sound Level | 74 dBA |
| Speed | 1075 RPM |
| Style | Standard |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
| Watts | 423/267 W |
| Wheeled Base | Stationary |
| Width | 27" |
| Wire Guard Finish | Polyester Powder Coat |
Shipping Info:
| Ship weight (kg) | 19.36 |
| Ship height (cm) | 68.58 |
| Ship length (cm) | 31.12 |
| Ship width (cm) | 68.58 |
| Country of Origin | CN |
Product Details:
- Oscillating : No
- Mobile/Stationary : Stationary
Product Variants
| Product | Model | Phase | Blade Dia. | Motor Hp | Voltage | Mounting Location | Oscillating/non-oscillating | Sound Level | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
13V401 | 1 | 18" | 1/5 hp | - | Wall | Oscillating | 70 dBA, 66 dBA | 104°F | €324.25 | |
|
13V402 | 1 | 20" | 1/5 hp | 120V AC | Wall | Oscillating | 68 dBA, 65 dBA | 104°F | €373.12 | |
 |
1RWB4 | 1 | 30" | 1/4 hp | 120V AC | Ceiling, Wall | Non Oscillating | 77 dBA | 104°F | €336.21 | |
 |
1VCH1 | 1 | 24" | 1/4 hp | 115/230V AC | Wall | Non Oscillating | 76 dBA | 104°F | €1,855.80 | |
|
1VCH2 | 1 | 30" | 3/4 hp | 115/230V AC | Wall | Non Oscillating | 80 dBA | 104°F | €1,646.89 | |
|
1VCH3 | 1 | 36" | 3/4 hp | 115/230V AC | Wall | Non Oscillating | 82 dBA | 104°F | €2,360.17 | |
 |
1ZCN7 | 1 | 18" | 1/15 hp | 115V AC | Ceiling, Wall | Non Oscillating | 59 dBA | 104°F | €227.50 |
