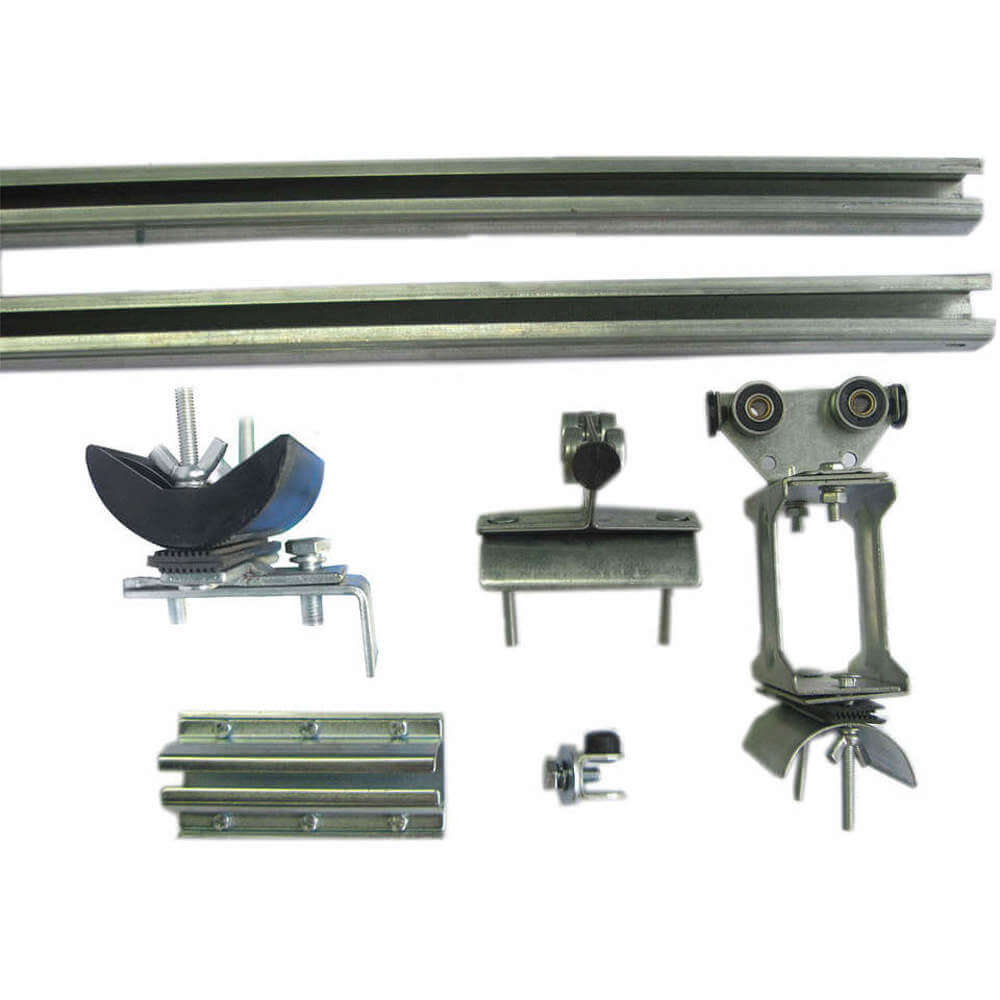

DAYTON 7CZ29 Festoon System Kit C-Track 20 feet Flat
Get it by Wednesday, Dec 24
10.00% off
€493.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Festoon System Kit |
| Cable Size | 1.38" x 2.13" |
| Cable Type | Flat |
| Compatible Cable Thickness | 1.38" |
| Compatible Cable Type | Flat |
| Included Components | C Track, Clamps, End Stops, Hangers, Intermediate Cars, Joint Brackets, Lead Cars, Tow Bar |
| Max. Trolley Capacity | 40 lbs. |
| Maximum Compatible Flat Cable Height | 1.38" |
| Maximum Compatible Flat Cable Width | 20" |
| Maximum Track Length | 20 ft. |
| Min. Cable/hose Length Required | 42 ft. |
| Min. Cable/hose Required (ft.) | 42 |
| Minimum Cable/hose Required | 42 ft. |
| Minimum Compatible Flat Cable Height | 1.38" |
| Minimum Compatible Flat Cable Width | 2.13" |
| Minimum Track Length | 20 ft. |
| Number Of Trolleys | 4 |
| Number Of Trolleys Included | 4 |
| Overall Length | 20 ft. |
| Track Type | C Rail |
| Trolley Capacity | 40 lbs. |
| Trolley Capacity (lbs.) | 40 |
| Trolley Wheel Diameter | 0.9" |
| Type | C Track |
| Wheel Tread Dia. | 0.94" |
| Wheel Tread Dia. | 0.94 In. |
Shipping Info:
| Ship weight (kg) | 11.59 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8431491010 |
| Country of Origin | CN |
Product Variants
| Model | Number Of Trolleys | Cable Size | Compatible Cable Type | Compatible Cable Thickness | Max. Travel Distance | Type | Overall Length | Trolley Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 33N203 | 3 | 0.88" x 2.38" | Flat | 0.88" | 20 ft. | Wire Rope | 20 ft. | 13 lbs. | €368.59 | |
| 33N204 | 6 | 0.88" x 2.38" | Flat | 0.88" | 40 ft. | Wire Rope | 40 ft. | 13 lbs. | €434.37 | |
| 33N205 | 9 | 0.88" x 2.38" | Flat | 0.88" | 60 ft. | Wire Rope | 60 ft. | 13 lbs. | €591.97 | |
| 33N206 | 13 | 0.88" x 2.38" | - | - | 80 ft. | Wire Rope | 80 ft. | 13 lbs. | €730.41 | |
| 33N207 | 3 | 0.49" to 0.91" | Round | 0.91" to 1.25" | 20 ft. | Wire Rope | 20 ft. | 13 lbs. | €392.92 | |
| 33N208 | 6 | 0.49" to 0.91" | Round | 0.91" to 1.25" | 40 ft. | Wire Rope | 40 ft. | 13 lbs. | €602.20 | |
| 33N209 | 9 | 0.49" to 0.91" | Round | 0.91" to 1.25" | 60 ft. | Wire Rope | 60 ft. | 13 lbs. | €719.43 |
