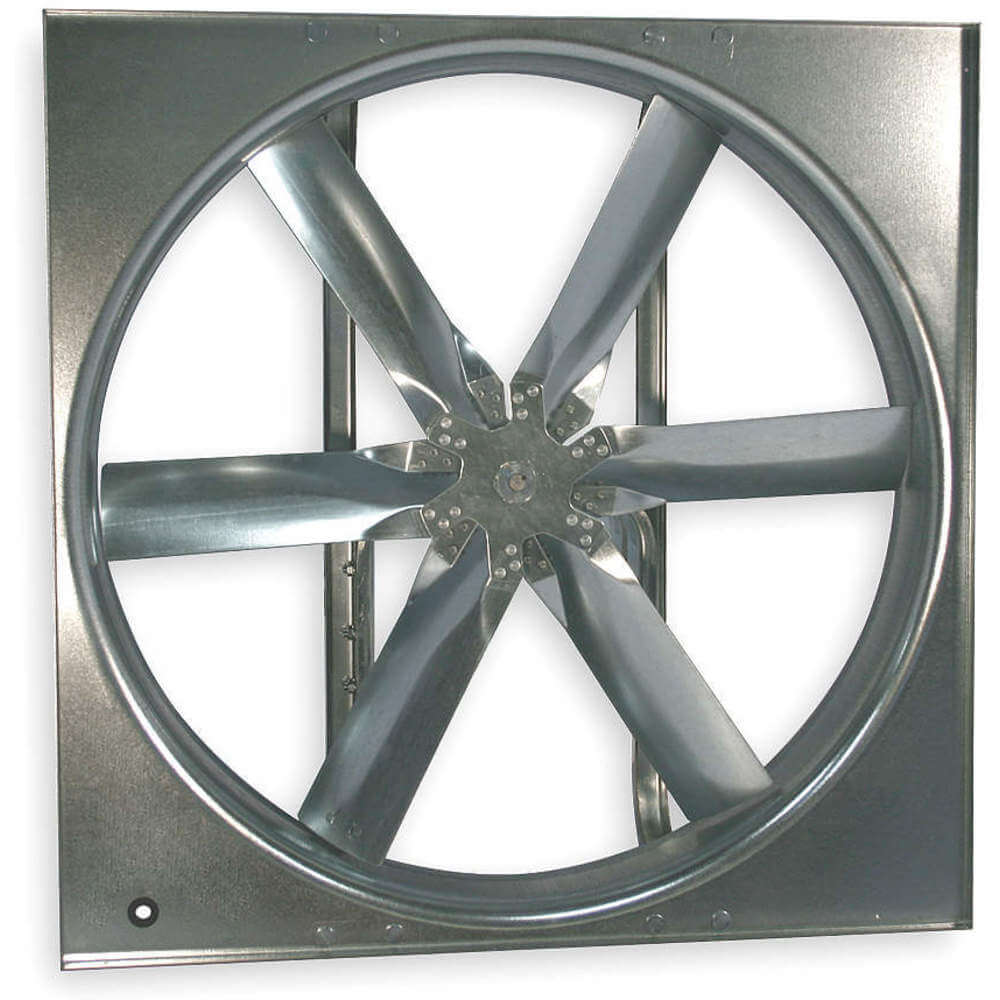

DAYTON 7CC15 Supply Fan 30 Inch Volts 208-230/440
Get it by Monday, Dec 22
10.00% off
€1,422.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Supply Fan w/Drive Package |
| Assembled | Unassembled |
| Assembled/unassembled | Unassembled |
| Bearing Size | 3/4" |
| Bearing Type | Regreaseable Pillow Block |
| Blade Dia. | 30" |
| Blade Finish | Galvanized |
| Blade Material | Steel |
| Cfm @ 0.000-in. Sp | 7096 CFM |
| Cfm @ 0.125-in. Sp | 6015 CFM |
| Drive Package Included | Yes |
| Drive Package With Motor Included | Yes |
| Drive Type | Belt Drive |
| Exhaust/supply Fan Item | Supply Fan |
| Fan Duty Rating | Standard |
| Fan Rpm | 621 RPM |
| Fan Speed | 621 RPM |
| Fan Style | Panel |
| Flange Depth | 1" |
| Flange Width | 34" |
| For Cut-out Height | 32 1/2" |
| For Cut-out Length | 32 1/2" |
| For Cut-out Width | 32 1/2" |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Full Load Amps | 1.3A |
| Height | 34" |
| Includes | Drive Package |
| Includes Dehumidistat | No |
| Includes Drive Package With Motor | Yes |
| Includes Grill | No |
| Includes Motor | Yes |
| Max. Ambient Temp. | 104°F |
| Max. Bhp | 3/10 bhp |
| Max. Depth | 22 7/8" |
| Max. Inlet Temp. | 104°F |
| Max. Noise Level @ 0.000 In Sp @ 5 Ft | 13.2 sones |
| Max. Supply Airflow @ 0.000 In Sp | 7096 CFM |
| Max. Supply Airflow @ 0.125 In Sp | 6015 CFM |
| Maximum Noise Level | 13.2 sones |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Enclosure Design | Totally Enclosed |
| Motor Horsepower | 1/4 hp |
| Motor Insulation | Class B |
| Motor Speed | 1725 RPM |
| Motor Type | 3-Phase |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 230/460V AC |
| Noise Level @ 0.000 In Sp @ 5 Ft | 13.2 sones |
| Number Of Blades | 6 |
| Number Of Fans | 1 |
| Number Of Shutters | 0 |
| Number Of Speeds | 1 |
| Outside Dia. | 34" |
| Overall Depth | 22 7/8" |
| Overall Dia. | 34" |
| Overall Height | 34" |
| Overall Width | 34" |
| Phase | 3 |
| Shaft Dia. | 3/4" |
| Sones @ 0.000-in. Sp @ 5 Ft. | 13.2 sones |
| Sones @ 0.125-in. Sp @ 5 Ft. | 12.8 sones |
| Speed Controllable | No |
| Vent Design | Ductless |
| Ventilation Type | Supply |
| Venturi Clearance Dia. | 30 3/8" |
| Venturi Dia. | 30 1/2" |
| Voltage | 208-230/440V |
| Width | 34" |
Shipping Info:
| Ship weight (kg) | 38.81 |
| Ship height (cm) | 0.25 |
| Ship length (cm) | 0.25 |
| Ship width (cm) | 0.25 |
| HS code | 8414599080 |
| Country of Origin | US |
Product Variants
| Model | Fan Speed | Voltage | Cfm @ 0.000-in. Sp | Cfm @ 0.125-in. Sp | Cfm @ 0.250-in. Sp | Sones @ 0.000-in. Sp @ 5 Ft. | Sones @ 0.125-in. Sp @ 5 Ft. | Cfm @ 0.375-in. Sp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7CC02 | 923 RPM | 115/208-230V | 4826 CFM | 4312 CFM | 3570 CFM | 17.3 sones | 17.1 sones | - | €1,349.67 | |
| 7CC03 | 923 RPM | 208-230/440V | 4826 CFM | 4312 CFM | 3570 CFM | 17.3 sones | 17.1 sones | - | €1,352.84 | |
| 7CC05 | 1012 RPM | 115/208-230V | 5292 CFM | 4830 CFM | 4207 CFM | - | - | - | €1,382.64 | |
| 7CC06 | 1012 RPM | 208-230/440V | 5292 CFM | 4830 CFM | 4207 CFM | - | - | - | €1,343.97 | |
| 7CC08 | 1181 RPM | 115/208-230V | 6175 CFM | 5789 CFM | 5337 CFM | - | 26 sones | - | €1,404.03 | |
| 7CC09 | 1181 RPM | 208-230/440V | 6175 CFM | 5789 CFM | 5337 CFM | - | 26 sones | - | €1,421.98 | |
| 7CC11 | 1352 RPM | 115/208-230V | 7069 CFM | 6732 CFM | 6372 CFM | - | - | 5917 CFM | €1,474.70 |
