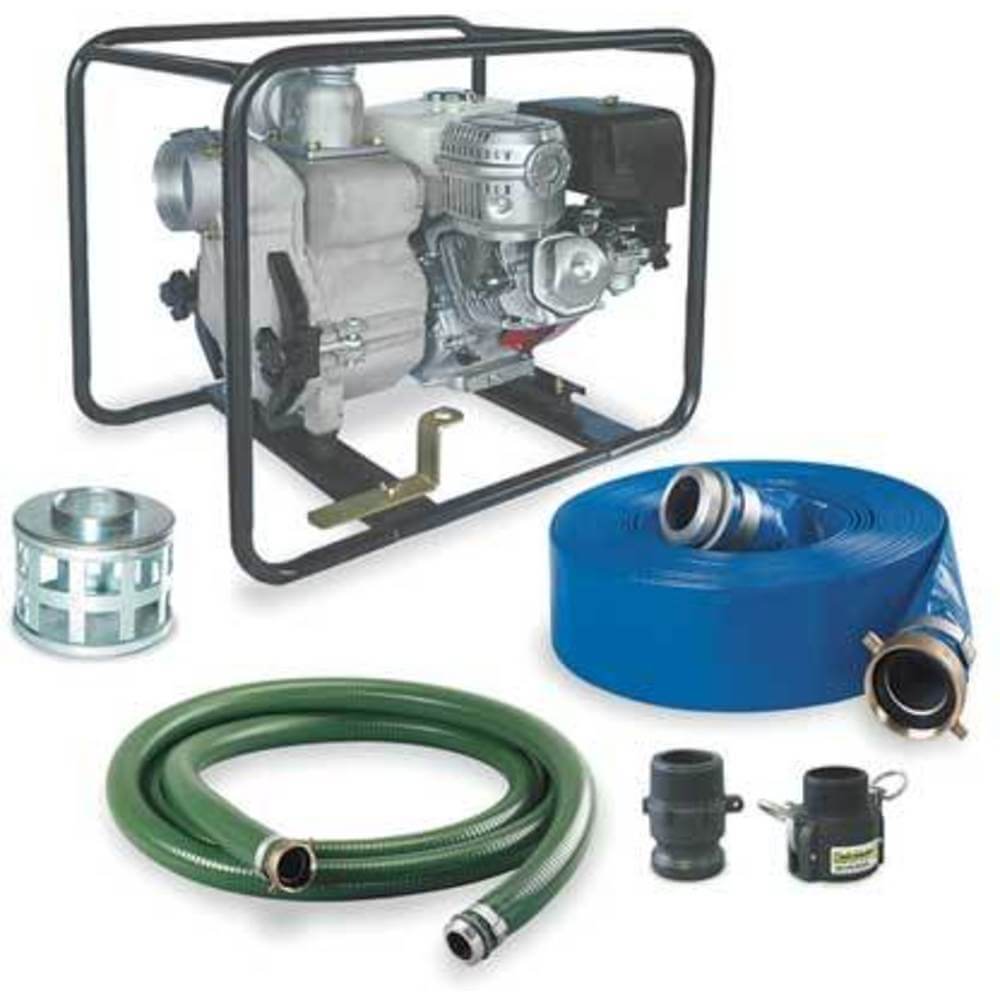

DAYTON 7AJ19 Engine Drive Pump Kit 11 Hp Honda Engine
Get it by Tuesday, Aug 18
5.00% off
€4,063.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Engine Driven Centrifugal Pump Kit |
| Adapter Casing Material | Aluminum |
| Application | Trash |
| Body Material | Aluminum |
| Casing Adapter | Aluminum |
| Casing Adapter | Aluminium |
| Check Valve | Buna N |
| Check Valve | Buna |
| Check Valve Material | Buna N |
| Discharge | 4" |
| Discharge Dia. | 4" |
| Engine Brand | Honda OHV |
| Engine Rpm | 3600 |
| Engine Size | 337 cc |
| Engine/motor Type | Gas |
| Flow Rate @ 10 Ft. | 430 GPM |
| Flow Rate @ 10 Ft. Of Head | 430 GPM |
| Flow Rate @ 20 Ft Of Head | 410 GPM |
| Flow Rate @ 20 Ft. | 410 GPM |
| Flow Rate @ 30 Ft. | 360 GPM |
| Flow Rate @ 40 Ft. | 290 GPM |
| Flow Rate @ 40 Ft. Of Head | 290 GPM |
| Flow Rate @ 50 Ft. | 220 GPM |
| Flow Rate @ 60 Ft. | 150 GPM |
| Flow Rate @ 60 Ft. Of Head | 150 GPM |
| Flow Rate @ 70 Ft. | 75 GPM |
| Frame Design | Full Tubular Frame |
| Frame Design-pumps | Full Tubular Frame |
| Frame Material | Steel |
| Height | 24" |
| Housing Material | Aluminum |
| Hp | 9 1/2 hp |
| Ignition Type | Electronic |
| Impeller | Cast-Iron |
| Impeller Design | Semi Open |
| Impeller Material | Cast Iron |
| Impeller Type | Semi Open |
| Inlet | 4" |
| Inlet Dia. | 4" |
| Inlet Size | 4" |
| Length | 28 3/4" |
| Material Of Construction | Aluminum |
| Max. Dia. Solids | 1 1/8" |
| Max. Discharge Pressure | 35 psi |
| Max. Head | 80 ft. |
| Max. Pressure | 35 psi |
| Max. Solid Dia. | 1 1/8" |
| Max. Suction Lift | 25 ft. |
| Max. Suction Lift (ft.) | 25 |
| No. Of Impellers | 1 |
| Npt Port | 4" |
| Outlet Size | 4" |
| Overall Height | 24" |
| Overall Length | 28 3/4" |
| Overall Width | 19" |
| Power Source | Gas |
| Pump Mechanism | Centrifugal |
| Roll Bar Frame | Steel |
| Seal Material | Buna N, Silicon Carbide |
| Sensor Type | Low Oil |
| Solids Handling Capacity (in.) | 1-1/8 |
| Speed | 3600 RPM |
| Tank Capacity | 1.72 gal. |
| Temp. | +35°F to +105°F |
| Type | Trash |
| Volute Material | Cast Iron, Stainless Steel |
| Volute/wear Plate | Cast-Iron/SS |
| Width | 19" |
Shipping Info:
| Ship weight (kg) | 119.62 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 73.03 |
| Ship width (cm) | 48.26 |
| HS code | 8413702015 |
| Country of Origin | US |
Product Details:
- Number of Impellers (1)
Product Variants
| Product | Model | Type | Hp | Height | Outlet Size | Overall Height | Discharge Dia. | Flow Rate @ 10 Ft. | Flow Rate @ 20 Ft. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11G226 | General Purpose | 1 hp | 13 4/5" | 1" | 13 13/16" | 1" | 29 GPM | 27 GPM | €582.05 | |
 |
11G228 | General Purpose | 3 1/2 hp | 15 15/16" | 2" | 15 15/16" | 2" | 163 GPM | 152 GPM | €762.26 | |
 |
11G229 | General Purpose | 4 4/5 hp | 19" | 3" | 19" | 3" | 265 GPM | 249 GPM | €877.99 | |
 |
11G230 | General Purpose | 7 1/10 hp | 26 1/3" | 4" | 26 5/16" | 4" | 363 GPM | 339 GPM | €1,651.20 | |
 |
11G231 | High Pressure | 4 4/5 hp | 19 4/5" | 1 1/2" | 19 13/16" | 1 1/2" | 104 GPM | 102 GPM | €977.46 | |
 |
11G232 | High Pressure | 4 4/5 hp | 17 15/16" | 2" | 17 15/16" | 2" | 113 GPM | 109 GPM | €1,100.30 | |
 |
11G234 | Semi Trash | 3 1/2 hp | 16 15/16" | 2" | 16 15/16" | 2" | 148 GPM | 133 GPM | €818.73 |
