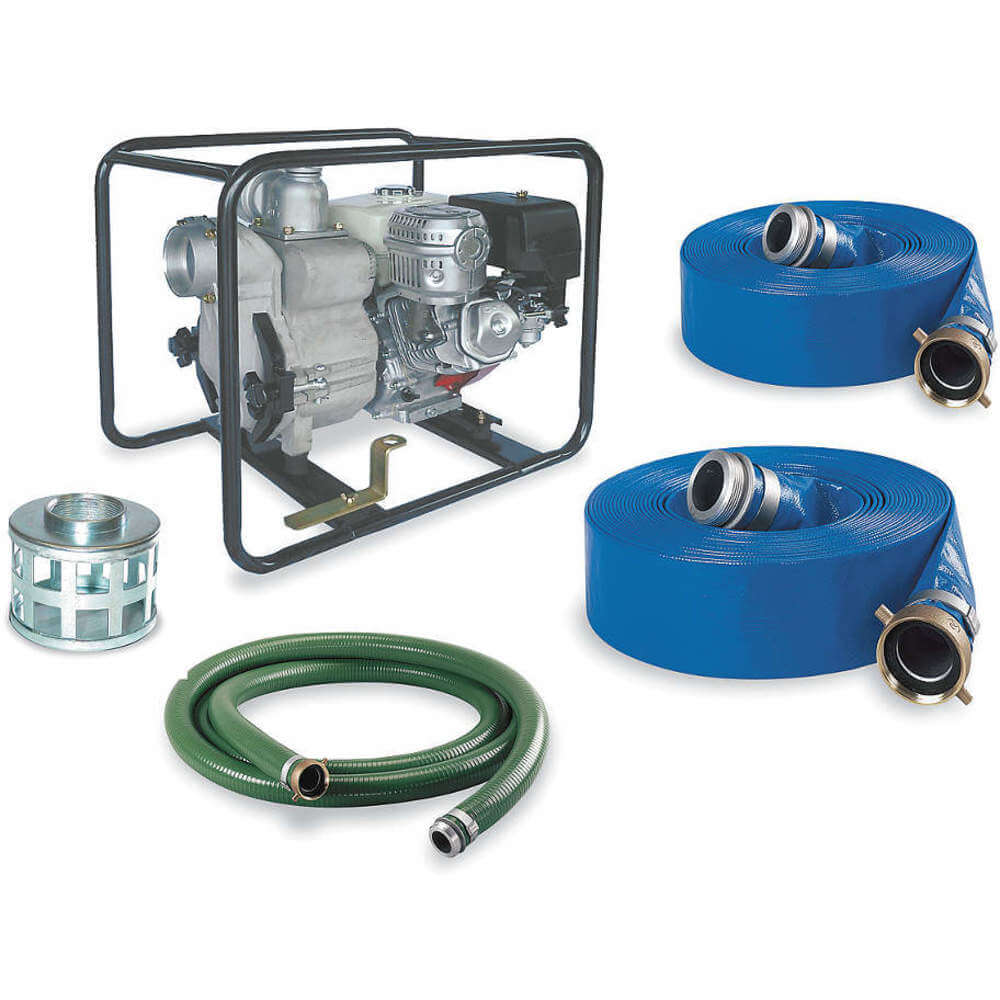

DAYTON 7AJ16 Engine Drive Pump Kit 11 Hp Honda Engine
Get it by Friday, Dec 26
10.00% off
€4,508.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Engine Driven Centrifugal Pump Kit |
| Adapter Casing Material | Aluminum |
| Application | Trash |
| Body Material | Aluminum |
| Casing Adapter | Aluminum |
| Casing Adapter | Aluminium |
| Check Valve | Buna |
| Check Valve | Buna N |
| Check Valve Material | Buna N |
| Discharge Dia. | 4" |
| Engine Brand | Honda OHV |
| Engine Rpm | 3600 |
| Engine Size | 337 cc |
| Engine/motor Type | Gas |
| Flow Rate @ 10 Ft. | 430 GPM |
| Flow Rate @ 10 Ft. Of Head | 430 GPM |
| Flow Rate @ 20 Ft. | 410 GPM |
| Flow Rate @ 20 Ft. Of Head | 410 GPM |
| Flow Rate @ 30 Ft. | 360 GPM |
| Flow Rate @ 40 Ft. | 290 GPM |
| Flow Rate @ 40 Ft. Of Head | 290 GPM |
| Flow Rate @ 50 Ft. | 220 GPM |
| Flow Rate @ 60 Ft. | 150 GPM |
| Flow Rate @ 60 Ft. Of Head | 150 GPM |
| Flow Rate @ 70 Ft. | 75 GPM |
| Frame Design | Full Tubular Frame |
| Frame Design - Pumps | Full Tubular Frame |
| Frame Material | Steel |
| Height | 24" |
| Housing Material | Aluminum |
| Hp | 9 1/2 hp |
| Ignition Type | Electronic |
| Impeller | Cast-Iron |
| Impeller Design | Semi Open |
| Impeller Material | Cast Iron |
| Impeller Type | Semi Open |
| Inlet | 4" NPSM |
| Inlet Dia. | 4" |
| Inlet Size | 4" |
| Inlet Standard | Npsm |
| Inlet Type | NPSM |
| Length | 28 3/4" |
| Material Of Construction | Aluminum |
| Max. Diameter Solids | 1 1/8" |
| Max. Head | 80 ft. |
| Max. Pressure | 35 psi |
| Max. Solid Dia. | 1 1/8" |
| Max. Suction Lift | 25 ft. |
| Max. Suction Lift (ft.) | 25 |
| Maximum Discharge Pressure | 35 psi |
| Npt Port | 4" |
| Number Of Impellers | 1 |
| Outlet | 4" Npsm |
| Outlet Size | 4" |
| Outlet Type | NPSM |
| Overall Height | 24" |
| Overall Length | 28 3/4" |
| Overall Width | 19" |
| Power Source | Gas |
| Pump Mechanism | Centrifugal |
| Roll Bar Frame | Steel |
| Rpm | 3600 RPM |
| Seal Material | Buna N, Silicon Carbide |
| Sensor Type | Low Oil |
| Solids Handling Capacity (in.) | 1-1/8 |
| Tank Capacity | 1.72 gal. |
| Temp. Range | +35°F to +105°F |
| Type | Trash |
| Volute Material | Cast Iron, Stainless Steel |
| Volute/wear Plate | Cast-Iron/SS |
| Width | 19" |
Shipping Info:
| Ship weight (kg) | 128.93 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 73.03 |
| Ship width (cm) | 48.26 |
| HS code | 8413702015 |
| Country of Origin | US |
Product Details:
- Number of Impellers (1)
Product Variants
| Product | Model | Hp | Engine Size | Tank Capacity | Height | Max. Pressure | Max. Suction Lift | Flow Rate @ 60 Ft. | Flow Rate @ 40 Ft. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7AJ11 | 4 13/16 hp | 163 cc | 0.95 gal. | 15 1/2" | 38 psi | 25 ft. | 90 GPM | 133 GPM | €1,994.90 | |
 |
7AJ12 | 7 1/10 hp | 242 cc | 5.6 qt | 24" | 39 psi | 26 ft. | 224 GPM | 278 GPM | €2,841.46 | |
 |
7AJ13 | 9 1/2 hp | 337 cc | 1.73 gal. | 24" | 35 psi | 25 ft. | 150 GPM | 290 GPM | €5,221.86 | |
 |
7AJ14 | 4 4/5 hp | 163 cc | 0.95 gal. | 15 1/2" | 38 psi | 25 ft. | 90 GPM | 133 GPM | €1,999.00 | |
 |
7AJ15 | 7 1/10 hp | 242 cc | 5.6 qt | 24" | 39 psi | 26 ft. | 224 GPM | 278 GPM | €2,930.12 | |
 |
7AJ17 | 4 13/16 hp | 163 cc | 0.95 gal. | 15 1/2" | 38 psi | 25 ft. | 90 GPM | 133 GPM | €1,925.24 | |
 |
7AJ18 | 7 1/10 hp | 242 cc | 5.6 qt | 24" | 39 psi | 26 ft. | 224 GPM | 278 GPM | €2,802.06 |
