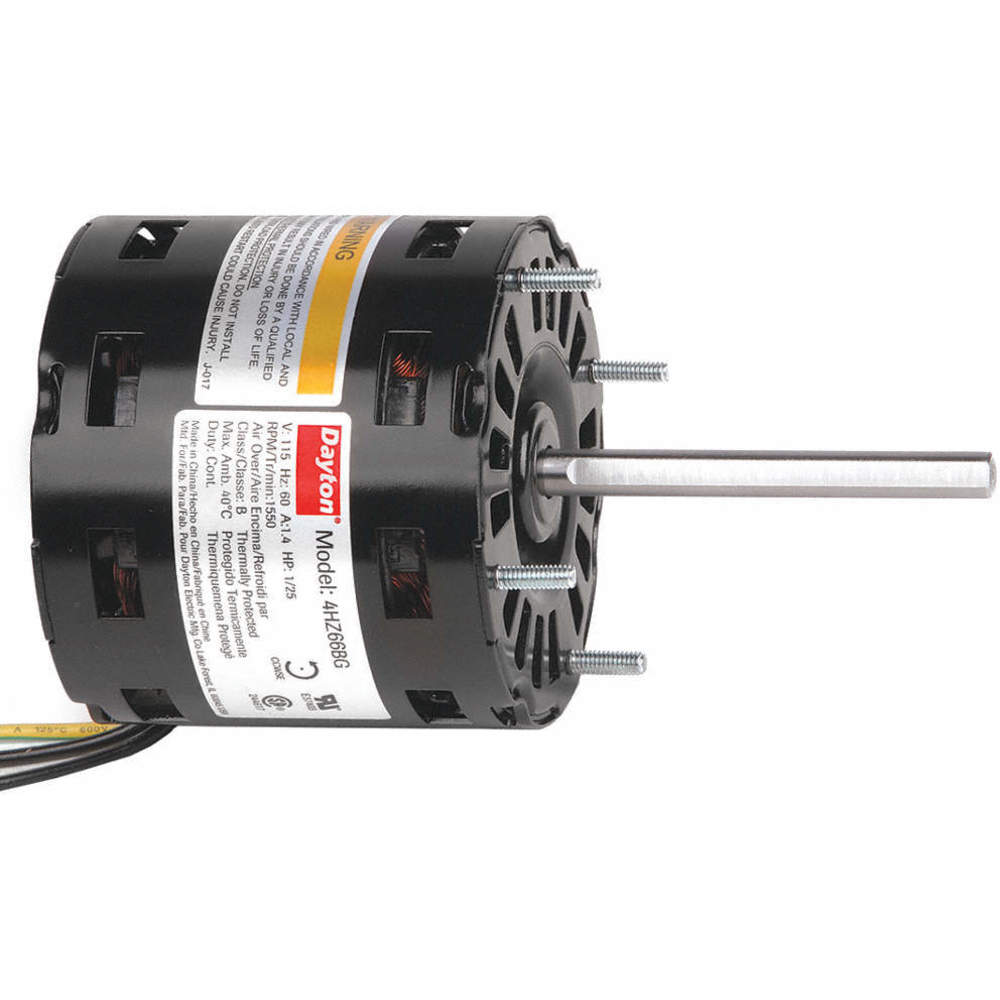

DAYTON 71732196M Motor Shaded Pole 1/25 Hp 1550 115v 3.3 Oao
Item: AD8DFKModel: 71732196MCross Ref: 4HZ66
7 In Stock
Ships within 2 days via
10.00% off
€126.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Direct Drive Blower Motor |
| Bearing Type | Ball |
| Capacitor Included | No |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Fan Dia. | 8" |
| Frame | 3.3" |
| Frequency | 60 Hz |
| Full Load Amps | 1.4A |
| Hp | 1/25 hp |
| Insulation Class | Class B |
| Length Less Shaft | 2 3/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Extended Studs |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1550 RPM |
| No. Of Speeds | 1 |
| Phase | 1 |
| Replacement For | 4HZ32, 4HZ33, 4HZ34, 4HZ35 |
| Service Factor | 1 |
| Shaft Dia. | 5/16" |
| Shaft Length | 3" |
| Shaft Type | Flat |
| Standards | Cruus |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 1.96 |
| Ship height (cm) | 16.26 |
| Ship length (cm) | 27.18 |
| Ship width (cm) | 16.76 |
| HS code | 8501106020 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Phase | Frequency | Mounting Type | Motor Enclosure Design | Full Load Amps | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
71732300M | 230V AC | 1/20 hp | 1 | 60 Hz | Extended Studs | Totally Enclosed Fan Cooled | 1A | Shaded Pole | €153.91 | |
 |
71636952M | 115V AC | 1/20 hp | 1 | 60 Hz | Extended Studs | Open Air Over | 2.1A | Shaded Pole | €194.07 | |
 |
71632454M | 115V AC | 1/20 hp | 1 | 60 Hz | Extended Studs | Totally Enclosed Fan Cooled | 1.8A | Shaded Pole | €165.88 | |
 |
71632379M | 115V AC | 1/15 hp | 1 | 60 Hz | Extended Studs | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | €194.54 | |
 |
71626626M | 115V AC | 1/8 hp | 1 | 60 Hz | Extended Studs | - | 1.3A | Permanent Split Capacitor | €198.46 | |
 |
71632766M | 115V AC | 1/15 hp | 1 | 60 Hz | Extended Studs | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | €198.55 | |
 |
71632768M | 115V AC | 1/15 hp | 1 | 60 Hz | Cradle Base | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | €250.87 |
