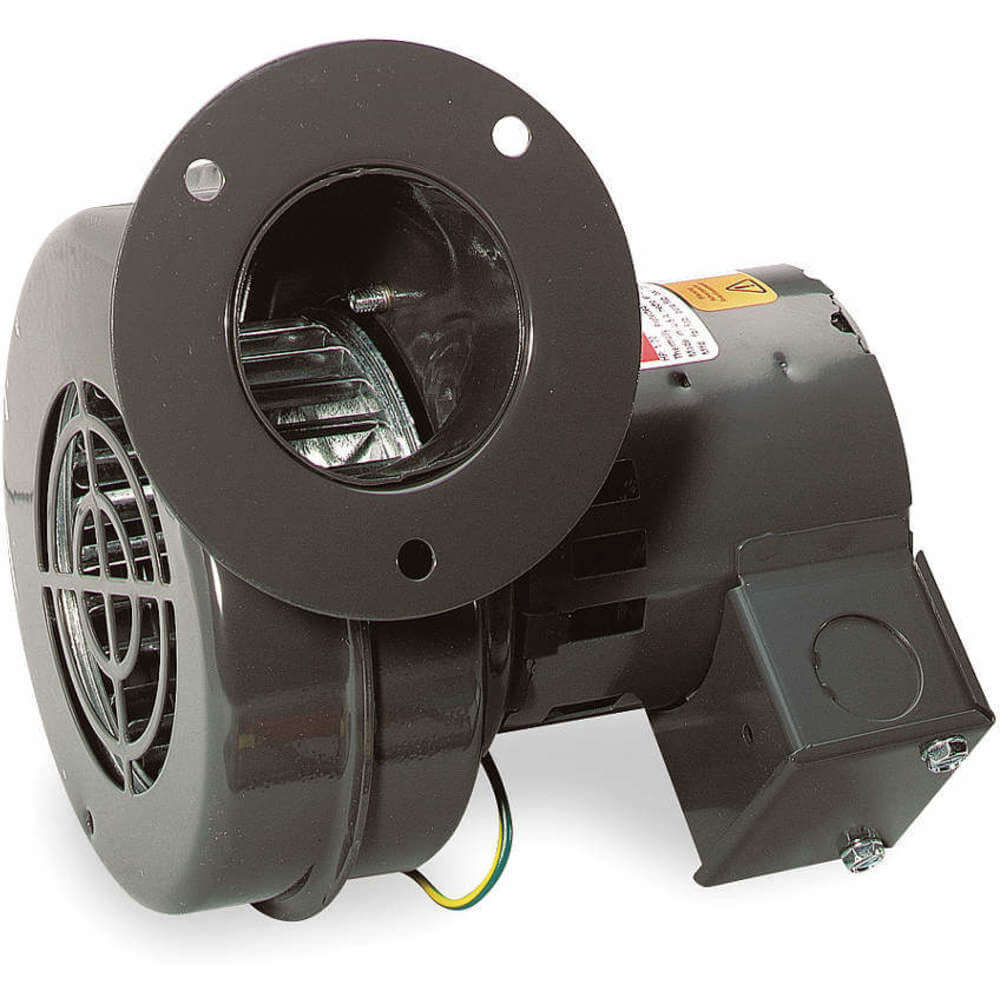

DAYTON 6FHX6 Blower 70 Cfm 115v 0.95/0.74a 2870 Rpm | AE8TZE

DAYTON 70214931X Blower 70 Cfm 115v 0.95/0.74a 2870 Rpm

Item: AE8TZEModel: 70214931XCross Ref: 6FHX6
7 In Stock

Ships within 2 days via

€252.12
10.00% off
€226.91 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item OEM Blower
Airflow @ 0.000 In Sp 70 CFM
Airflow @ 0.500 In Sp Range 45 CFM
Assembly Assembled
Bearing Type Sleeve
Cfm @ 0.000-in. Sp 70 CFM
Cfm @ 0.100-in. Sp 65 CFM
Cfm @ 0.150-in. Sp 62 CFM
Cfm @ 0.150-in. Sp 62
Cfm @ 0.200-in. Sp 60 CFM
Cfm @ 0.300-in. Sp 55 CFM
Cfm @ 0.400-in. Sp 50 CFM
Cfm @ 0.400-in. Sp 50
Cfm @ 0.500-in. Sp 45 CFM
Conduit Box Yes
Current 0.95/0.74A
Discharge Position All
Drive Package With Motor Included? Yes
Drive Type Direct Drive
Flange Dia. 4"
For Air Type Clean Air
Full Load Amps 0.95/0.74A
Housing Color Gray
Housing Finish Baked Enamel
Housing Material Steel
Hz 50/60 Hz
Inlet Dia. 3 1/8"
Lead Length 12"
Manufacturer Warranty Length 1 yr. Limited
Max. Ambient Temp. 104°F
Max. Inlet Temp. 104°F
Maximum Fan Speed 2870 RPM
Maximum Inlet Air Temperature 104°F
Motor Enclosure Design Open Dripproof
Motor Horsepower 1/70 hp
Motor Insulation Class B
Motor Insulation Class Class B
Motor Rpm 2870 RPM
Motor Type Shaded Pole
Mounting Orientation Multiposition
Mounting Position All Position
Nameplate Voltage 115V AC
No. Of Inlets 1
Number Of Discharge Positions 4
Number Of Speeds 1
Oem Replacement No
Outlet Diameter 2 1/8"
Outlet Height 2 1/8"
Outlet Shape Round
Outlet Shape Square
Outlet Type Flanged
Outlet Width 2 1/8"
Overall Depth 5 1/2"
Overall Height 6 1/2"
Overall Width 6 1/4"
Phase 1
Replacement For 4C443
Rotation CW
Thermal Overload Protection Yes
Wheel Dia. 3 3/4" , 3.812"
Wheel Material Steel
Wheel Type Forward Curve
Wheel Width 1 7/8"

Shipping Info:

Ship weight (kg) 1.91
Ship height (cm)19.05
Ship length (cm)21.59
Ship width (cm)21.59
HS code8414596095
Country of OriginUS

Product Details:

    • With/Without Flange (With Flange)
    • Supercedes 4C443

Product Variants

ProductModelOutlet ShapeDrive TypeWheel MaterialOutlet WidthAssemblyOutlet HeightHousing MaterialOverall HeightPrice
DAYTON 1TDN1 Blower 13 Cfm 115v 0.29a 3394 Rpm | AB3HBA 1TDN1RoundDirect DriveSteelNot ApplicableAssembledNot ApplicableSteel3 3/4"€118.31
DAYTON 1TDN2 Round Blower, 12 CFM, 115V, 0.08 Amp, 3340 Rpm | AB3HBB 1TDN2RoundDirect DriveSteelNot ApplicableAssembledNot ApplicableSteel3 7/8"€130.52
DAYTON 1TDN3 Blower 30 Cfm 115v 0.51a 3233 Rpm | AB3HBC 1TDN3RectangularDirect DriveSteel1 1/2"Assembled1 5/8"Steel4 5/8"€102.85
DAYTON 1TDN4 Blower 49 Cfm 115v 0.50a 3034 Rpm | AB3HBD 1TDN4RectangularDirect DriveSteel2"Assembled1 5/8"Steel4 1/2"€102.26
DAYTON 1TDN5 Blower, Ball Bearing Type, 3388 RPM, 115V AC, 0.3A, 1 Phase | AB3HBE 1TDN5RectangularDirect DriveSteel2"Assembled1 5/8"Steel4 5/8"€153.56
DAYTON 1TDN6 Blower 51 Cfm 115v 0.23a 3105 Rpm | AB3HBF 1TDN6RoundDirect DriveSteelNot ApplicableAssembledNot ApplicableSteel5 3/4"€163.32
DAYTON 1TDN7 Round OEM Blower, 50 CFM, 115V, 50/60 Hz, 0.23A, 3036 RPM | AB3HBG 1TDN7RoundDirect DriveSteelNot ApplicableAssembledNot ApplicableSteel5 3/4"€149.33
