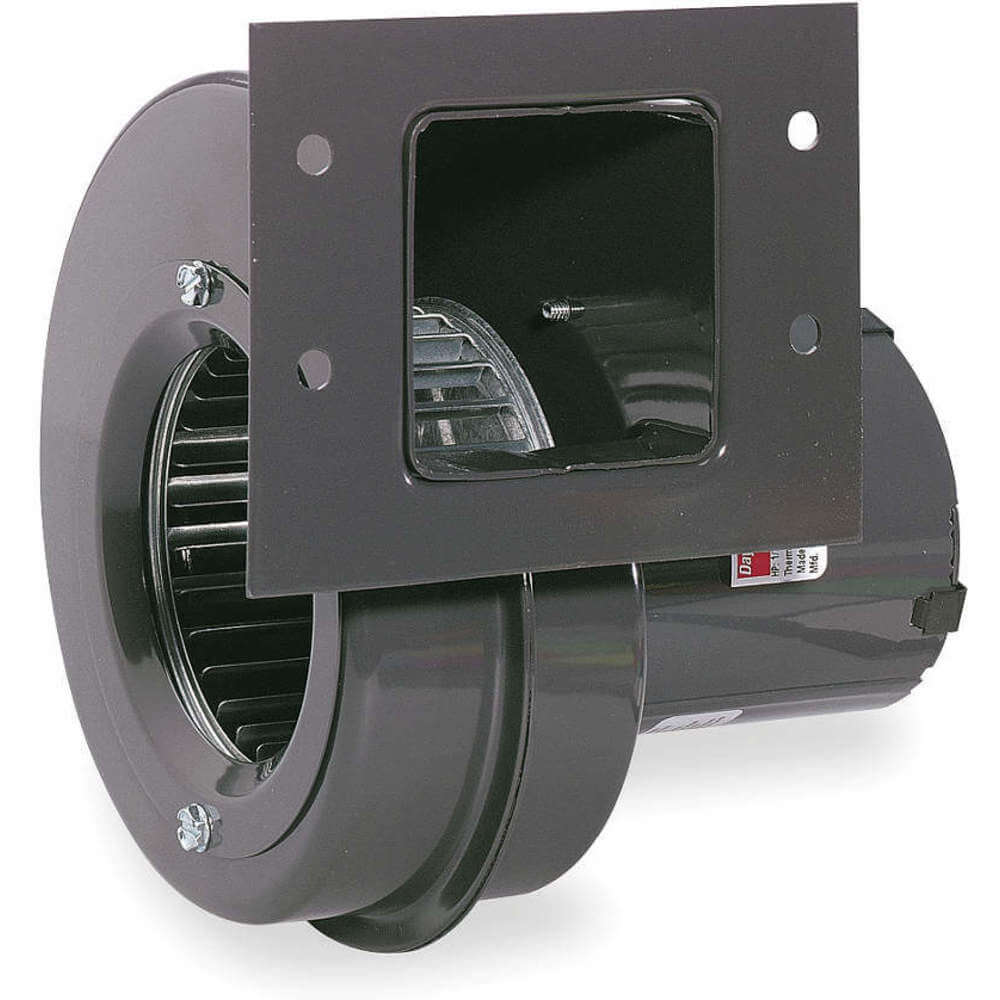

DAYTON 70213467X Blower 140 Cfm 115v 1.16/1.02a 3020 Rpm
Item: AE8TZDModel: 70213467XCross Ref: 6FHX5
7 In Stock
Ships within 2 days via
5.00% off
€310.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | OEM Blower |
| Airflow @ 0.000 In Sp | 140 CFM |
| Airflow @ 0.250 In Sp | 105 CFM |
| Airflow @ 0.500 In Sp | 110 CFM |
| Amps | 1.16/1.02A |
| Assembly | Assembled |
| Bearing Type | Sleeve |
| Cfm @ 0.000 In Sp | 140 CFM |
| Cfm @ 0.100 In Sp | 136 CFM |
| Cfm @ 0.150 In Sp | 133 CFM |
| Cfm @ 0.150-in. Sp | 133 |
| Cfm @ 0.200 In Sp | 131 CFM |
| Cfm @ 0.400 In Sp | 119 CFM |
| Cfm @ 0.400-in. Sp | 119 |
| Cfm @ 0.500 In Sp | 110 CFM |
| Conduit Box | Yes |
| Discharge Position | All |
| Drive Package With Motor Included | Yes |
| Drive Type | Direct Drive |
| Flange Size | 5 1/8" x 4" |
| For Air Type | Clean Air |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.16/1.02A |
| Housing Color | Gray |
| Housing Finish | Baked Enamel |
| Housing Material | Steel |
| Inlet Dia. | 3 1/8" |
| Lead Length | 6" |
| Max. Ambient Temp. | 104°F |
| Max. Fan Speed | 3020 RPM |
| Max. Inlet Air Temp. | 104°F |
| Max. Inlet Temp. | 104°F |
| Max. Static Pressure | 1.125 in. wc |
| Min. Fan Speed | 2600 RPM |
| Motor Enclosure Design | Open Dripproof |
| Motor Hp | 1/30 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 3020 RPM |
| Motor Type | Shaded Pole |
| Mounting Orientation | Multiposition |
| Mounting Position | All Position |
| Nameplate Voltage | 115V AC |
| No. Of Discharge Positions | 4 |
| No. Of Inlets | 1 |
| No. Of Speed | 1 |
| Oem Replacement | No |
| Outlet Height | 2 1/2" |
| Outlet Shape | Square |
| Outlet Type | Flanged |
| Outlet Width | 2 1/2" |
| Overall Depth | 6 3/4" |
| Overall Height | 7 3/16" |
| Overall Width | 6 3/16" |
| Phase | 1 |
| Replacement For | 4C442 |
| Rotation | CW |
| Thermal Overload Protection | Yes |
| Wheel Dia. | 3 3/4" |
| Wheel Material | Steel |
| Wheel Type | Forward Curve |
| Wheel Width | 1 7/8" |
Shipping Info:
| Ship weight (kg) | 2.53 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 22.1 |
| Ship width (cm) | 21.59 |
| HS code | 8414596095 |
| Country of Origin | US |
Product Details:
- With/Without Flange (With Flange)
- Supercedes 4C442
Product Variants
| Product | Model | No. Of Inlets | Outlet Shape | Wheel Dia. | Wheel Material | Inlet Dia. | Motor Hp | Bearing Type | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1C791 | 1 | Rectangular | 6.312" | Steel | 6" | - | - | - | €426.20 | |
|
1C792 | 1 | Rectangular | 7 3/4" | Steel | 8" | - | - | - | €668.17 | |
 |
1TDN1 | 1 | Round | 2" | Steel | 1 7/8" | 1/500 hp | Ball | 1 | €115.23 | |
 |
1TDN2 | 1 | Round | 2" | Steel | 1 7/8" | 1/250 hp | Ball | 1 | €149.42 | |
 |
1TDN3 | 1 | Rectangular | 2.938" | Steel | 2 9/16" | 1/200 hp | Ball | 1 | €122.39 | |
|
1TDN4 | 1 | Rectangular | 2 7/8" | Steel | 2 9/16" | 1/130 hp | Ball | 1 | €121.68 | |
 |
1TDN5 | 1 | Rectangular | 2.938" | Steel | 2 9/16" | 1/50 hp | Ball | 1 | €182.74 |
