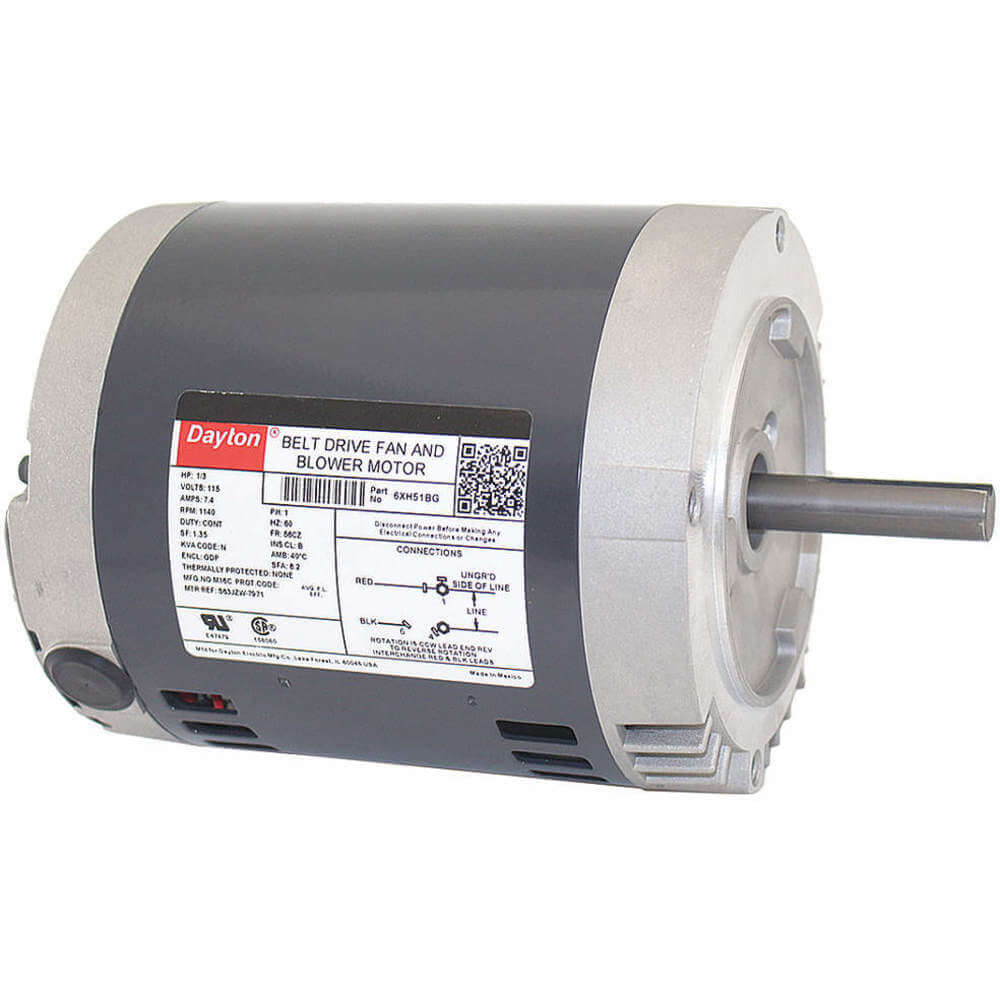

DAYTON 6XH51BG General Purpose Motor Split Phase Odp 1/3 Hp 1140 Rpm 56cz
Get it by Tuesday, Sep 1
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€828.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Application | HVAC/R |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 58.5% |
| Frame | 56CZ |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 7.4A |
| Hp | 1/3 hp |
| Included | Shaft Key |
| Insulation Class | Class B |
| Length Less Shaft | 7 13/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC, R |
| Motor Bearings | Ball |
| Motor Design | Split Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Belt Drive Fan, Blower |
| Motor Thermal Protection | None |
| Motor Type | Split Phase |
| Mounting Type | Face |
| Nameplate Speed | 1140 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 58.5% |
| Overall Length | 10 1/4" |
| Phase | 1 |
| Service Factor | 1.35 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 7/16" |
| Speed | 1101-1200 RPM |
| Thermal Protection | None |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 9.68 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 20.83 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Mounting Type | Service Factor | Frequency | Motor Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AGG3 | 115/208-230V | 1/2 hp | 7.2/3.6A | Cradle Base | 1.25 | 60 Hz | Capacitor Start | 56 | €377.26 | |
 |
1D170 | 115V AC | 3/4 hp | 11.3A | Cradle Base | 1.25 | 60 Hz | Split Phase | 56H | €494.76 | |
 |
24C180 | 115/208-230V | 1/2 hp | 7.7/3.8-3.7A | Cradle Base | 1.25 | 60 Hz | Capacitor Start | 56H | €494.75 | |
|
24C181 | 115/208-230V | 3/4 hp | 9.8/5.2-5A | Cradle Base | 1.25 | 60 Hz | Capacitor Start | 56H | €620.81 | |
 |
24C182 | 115/208-230V | 1 hp | 13.6/6.9A | Cradle Base | 1.15 | 60 Hz | Capacitor Start | 56H | €713.31 | |
 |
3K199 | 115/230V AC | 1/2 hp | 7.7/3.8A | Cradle Base | 1.25 | 50/60 Hz | Capacitor Start | 56 | €643.56 | |
 |
3K617BG | 115/208-230V | 3/4 hp | 11.2/5.6A | Cradle Base | 1.25 | 60 Hz | Split Phase | 56H | €518.36 |
