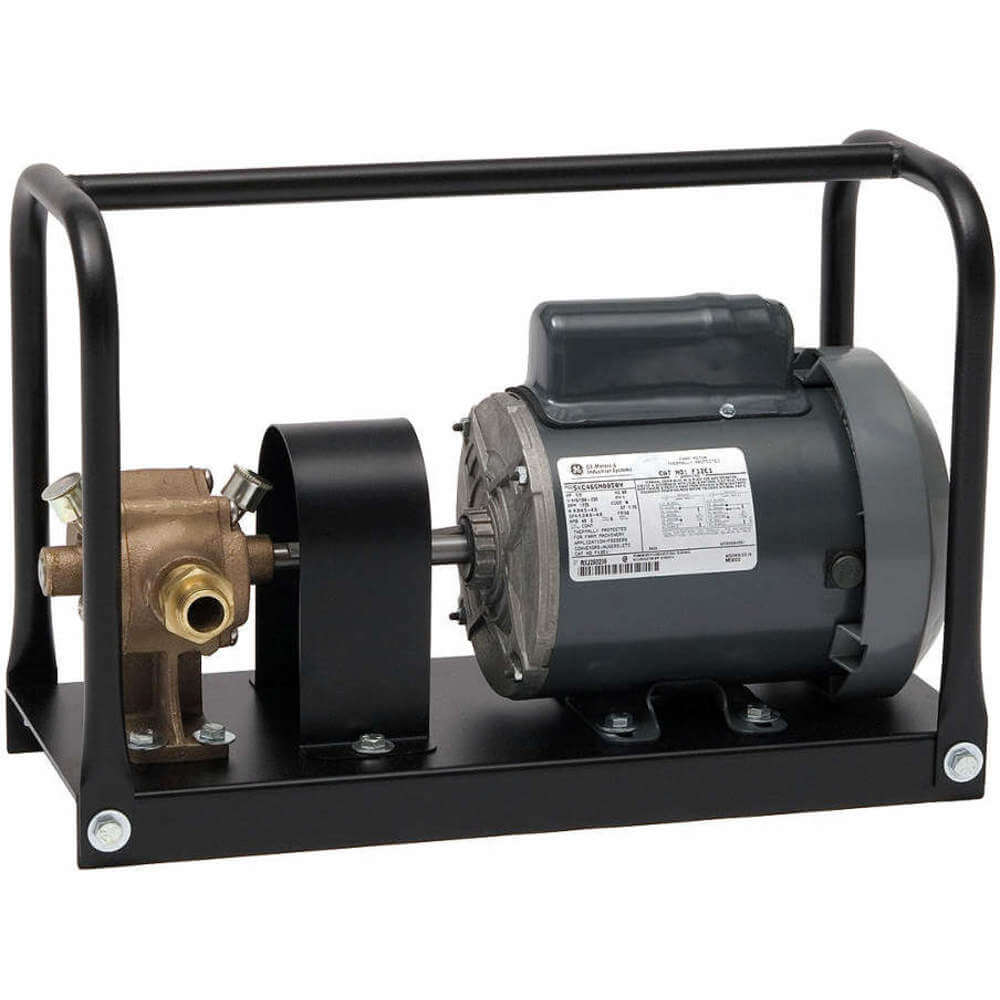

DAYTON 6KHN7 Pump 1/2hp 115/208-230v 8.8/4.4-4.4 Amp
Get it by Tuesday, Aug 25
5.00% off
€2,414.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pump |
| Amps | 8.8A |
| Application | Chemical Transfer, Water |
| Characteristics | Bronze |
| Compatible Motor Frame | 56 |
| Cord Length | 8 ft. |
| Discharge Connection | 1" NPT |
| Discharge Connection Size | 1" |
| Discharge Type | NPT |
| Flow Rate @ 0 Ft. | 30 GPM |
| Flow Rate @ 10 Ft. | 25 GPM |
| Flow Rate @ 11 Ft. | 24 GPM |
| Flow Rate @ 20 Ft. | 16 GPM |
| Flow Rate @ 23 Ft. | 14 GPM |
| Flow Rate @ 30 Ft. | 11 GPM |
| Flow Rate @ 40 Ft. | 7 GPM |
| Flow Rate @ 60 Ft. | 1 GPM |
| Frame | 56 |
| Gpm Of Water @ 0 Ft. Of Head | 30 |
| Gpm Of Water @ 0 Ft. Of Head | 30 GPM |
| Gpm Of Water @ 11 Ft. Of Head | 24 GPM |
| Gpm Of Water @ 23 Ft. Of Head | 14 GPM |
| Gpm Of Water @ 30 Ft. Of Head | 11 GPM |
| Gpm Of Water @ 60 Ft. Of Head | 1 GPM |
| Height | 13 1/2" |
| Housing Material | Bronze |
| Hp | 1/2 hp |
| Impeller Material | Epichlorohydrin |
| Included | Hose Adapters |
| Inlet Size | 1" |
| Inlet/outlet | 1" |
| Intake Connection Size | 1" |
| Intake Connection Type | NPT |
| Intake Size | 1" |
| Intake Type | NPT |
| Length | 20" |
| Max. Feet Of Head | 70 ft. Of Head |
| Max. Flow Rate @ 10 Ft Of Head | 25 GPM |
| Max. Flow Rate @ 20 Ft Of Head | 16 GPM |
| Max. Flow Rate @ 30 Ft Of Head | 11 GPM |
| Max. Flow Rate @ 40 Ft Of Head | 7 GPM |
| Max. Flow Rate @ 60 Ft Of Head | 1 GPM |
| Max. Head | 70 ft. |
| Max. Hp | 1/2 hp |
| Max. Motor Speed | 1725 RPM |
| Max. Operating Pressure | 30 psi |
| Max. Pressure | 30 psi |
| Max. Shut Off Pressure | 30 psi |
| Max. Ssu @ 1725 Rpm | 500 |
| Max. Ssu @ 1725 Rpm | 500 SUS |
| Max. Suction Lift | 18 ft. |
| Max. Viscosity | 500 SUS |
| Media Intake Connection Size | 1" |
| Motor Type | Capacitor Start |
| Nameplate Voltage | 115-230V AC |
| Outlet Size | 1" |
| Outlet Type | NPT |
| Overall Height | 13 1/2" |
| Overall Length | 20" |
| Overall Width | 9" |
| Port Connection Combined | 1" NPT x 1" NPT |
| Prime In Feet | 18 ft. |
| Prime Type | Self-Priming |
| Priming | Self Priming |
| Pump Housing Material | Bronze |
| Seal | Grease |
| Seal Type | Grease |
| Self Priming | Yes |
| Self-priming | Yes |
| Shaft Material | Stainless Steel |
| Suction Lift | 18 ft. |
| Temp. | 180°F |
| Type | Self Priming Flexible Impeller |
| Voltage | 115/230V AC |
| Width | 9" |
Shipping Info:
| Ship weight (kg) | 19.93 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 26.67 |
| HS code | 8413600090 |
| Country of Origin | US |
Product Details:
- GPM of Water @ 11 Ft. of Head (24)
- GPM of Water @ 23 Ft. of Head (14)
- NEMA Motor Frame (56)
- Characteristics: Bronze
Product Variants
| Product | Model | Impeller Material | Hp | Housing Material | Outlet Size | Voltage | Outlet Type | Power Cord Length | Max. Case Pressure | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3ABZ4 | Buna N | 1/3 hp | Brass | 3/4" | 115-230V AC | FNPT | - | - | 1 | €2,296.98 | |
 |
3ABZ5 | Buna N | 1/2 hp | Brass | 3/4" | 115-230V AC | FNPT | - | - | 1 | €2,298.51 | |
 |
3ABZ6 | Buna N | 3/4 hp | Brass | 1" | 115/230V AC | - | - | - | 1 | €2,705.87 | |
 |
3ACA4 | Buna N | 1/12 hp | Non Metallic | 3/4" | - | MGHT | - | - | 1 | €390.81 | |
 |
3ACA5 | Buna N | 1/12 hp | Non Metallic | 3/4" | - | MGHT | - | - | 1 | €295.12 | |
 |
3ACA6 | Buna N | 1/12 hp | Non Metallic | 3/4" | - | MGHT | - | - | 1 | €258.25 | |
 |
3ACB9 | Buna N | 1/3 hp | Brass | 3/4" | 115/230V AC | FNPT | - | - | 1 | €1,323.69 |
