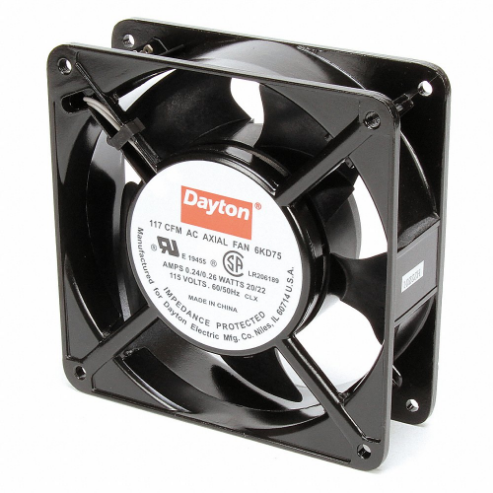

DAYTON 6KD75 Axial Fan 115vac 4-11/16 Inch H 4-11/16 Inch Width
Item: AE9KEEModel: 6KD75
7 In Stock
Ships within 2 days via
10.00% off
€39.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Axial Fan |
| Amps | 0.24/0.26A |
| Bearing Type | Ball |
| Blade Material | Polybutylene Terephthalate |
| Cfm @ 0.000-in. Sp | 117 CFM |
| Color | Black |
| Depth | 1 1/2" |
| Electrical Connection | Terminals |
| Electrical Connection - Fans | Terminals |
| Environmental Applications | Equipment Cooling |
| Fan Shape | Square |
| Fan Voltage | 115V AC |
| Frequency | 50/60 Hz |
| Height | 4 11/16" |
| Housing Finish | Black Painted |
| Housing Material | Cast Aluminum |
| Ip Rating | IP20 |
| Max. Ambient Temp. | 158°F |
| Motor Design | Shaded Pole |
| Motor Insulation | Class A |
| Motor Type | Shaded Pole |
| Mounting Eye O.c. | 4-1/8" |
| Mounting Eye O.c. | 4 1/8" |
| Mounting Position | Horizontal/Vertical |
| Phase | 1 |
| Requires | Cord Set (Not Included) |
| Rpm | 3150/2850 RPM |
| Shape | Square |
| Sound Level | 50 dBA, 45 dBA |
| Thermal Protection | Impedance |
| Voltage | 115V AC |
| Wattage | 20 W |
| Watts | 20/22 W |
| Width | 4 11/16" |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 4.57 |
| HS code | 8414596090 |
| Country of Origin | CN |
Features:
- This fan features terminal-type electrical connections for preventing terminal heating and electrical hazards.
- Its design allows the user to install the fan in either vertical or horizontal position depending upon the application requirement.
- It features a shaded pole motor for retaining the fan RPMs even after extended periods of usage.
- It has polybutylene terephthalate blades for maximising the airflow while minimising friction.
- It features cast aluminium housing for durability.
Standards and Approvals:
- RoHS
- UL
Frequently Asked Questions:
Q. How to install this Dayton square axial fan?
A. This fan is installed in an enclosure with either a round or square-shaped cutout. Four screws are installed from the fan corners into the enclosure to fix the fan onto the chassis of the device.
Q. Is this Dayton axial fan prone to friction?
A. This axial fan has ball bearings to minimise the friction to the minimum.
Q. Is this Dayton axial fan prone to shocks?
A. Yes, this fan is IP20 rated, ensuring that accidental impacts pose no harm to the fan's working.
Product Variants
| Product | Model | Height | Depth | Housing Material | Voltage | Cfm @ 0.000-in. Sp | Blade Material | Bearing Type | Mounting Position | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2RTD1 | 4 11/16" | 1 1/2" | Aluminum | 115V AC | 115 CFM | Polybutylene | Sleeve | Horizontal | €69.06 | |
 |
2RTD9 | 4 11/16" | 1 1/2" | Aluminum | 230V AC | 99/87 CFM | Polybutylene | Sleeve | Horizontal | €44.92 | |
 |
2RTE1 | 4 11/16" | 1 1/2" | Aluminum | 230V AC | 115/95 CFM | Polybutylene | Ball | Horizontal/Vertical | €70.70 | |
 |
2RTE4 | 2 3/8" | 1" | PBT Plastic | 115V AC | 239/203 CFM | Polybutylene | Zero Friction Air | Horizontal/Vertical | €34.35 | |
 |
2RTE8 | 3 1/8" | 1" | PBT Plastic | 115V AC | 29/28 CFM | Polybutylene | Zero Friction Air | Horizontal/Vertical | €46.03 | |
 |
2RTF9 | 2 3/8" | 1" | PBT Plastic | 12V DC | 31.5 CFM | Polybutylene | Zero Friction Air | Horizontal/Vertical | €28.27 | |
 |
2RTH1 | 2 3/8" | 1" | PBT Plastic | 24V DC | 40 CFM | Polybutylene | Zero Friction Air | Horizontal/Vertical | €28.27 |
