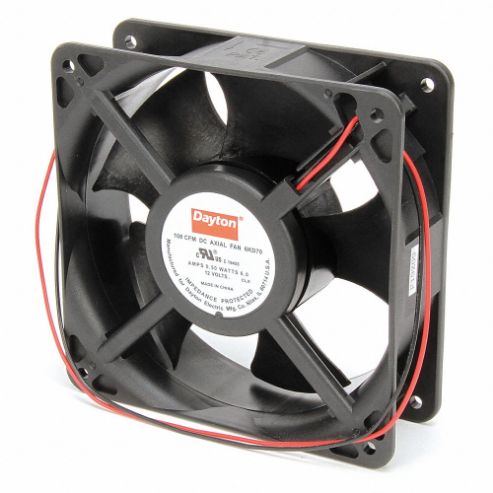

DAYTON 6KD70 Axial Fan 12vdc 4-11/16 Inch H 4-11/16 Inch Width
Item: AE9KEAModel: 6KD70
7 In Stock
Ships within 2 days via
10.00% off
€43.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Axial Fan |
| Amps | 0.83A |
| Bearing Type | Ball |
| Blade Material | Polybutylene Terephthalate |
| Cfm @ 0.000-in. Sp | 138 CFM |
| Color | Black |
| Depth | 1 1/2" |
| Electrical Connection - Fans | Lead Wires |
| Environmental Applications | Equipment Cooling |
| Fan Shape | Square |
| Fan Voltage | 12V DC |
| Height | 4 11/16" |
| Housing Finish | Black Painted |
| Housing Material | PBT Plastic |
| Ip Rating | IP20 |
| Max. Ambient Temp. | 158°F |
| Motor Design | Brushless DC |
| Motor Insulation | Class A |
| Motor Type | Brushless DC |
| Mounting Eye O.c. | 4-1/8" |
| Mounting Eye O.c. | 4 1/8" |
| Mounting Position | Horizontal/Vertical |
| Rpm | 3100 RPM |
| Shape | Square |
| Sound Level | 48 dBA |
| Standards | Rohs Compliant |
| Thermal Protection | Impedance |
| Voltage | 12V DC |
| Wattage | 6 W |
| Watts | 10 W |
| Width | 4 11/16" |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 4.83 |
| HS code | 8414596090 |
| Country of Origin | CN |
Product Variants
| Product | Model | Height | Depth | Housing Material | Voltage | Cfm @ 0.000-in. Sp | Blade Material | Bearing Type | Mounting Position | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2RTD1 | 4 11/16" | 1 1/2" | Aluminum | 115V AC | 115 CFM | Polybutylene | Sleeve | Horizontal | €69.06 | |
 |
2RTD9 | 4 11/16" | 1 1/2" | Aluminum | 230V AC | 99/87 CFM | Polybutylene | Sleeve | Horizontal | €44.92 | |
 |
2RTE1 | 4 11/16" | 1 1/2" | Aluminum | 230V AC | 115/95 CFM | Polybutylene | Ball | Horizontal/Vertical | €70.70 | |
 |
2RTE4 | 2 3/8" | 1" | PBT Plastic | 115V AC | 239/203 CFM | Polybutylene | Zero Friction Air | Horizontal/Vertical | €34.35 | |
 |
2RTE8 | 3 1/8" | 1" | PBT Plastic | 115V AC | 29/28 CFM | Polybutylene | Zero Friction Air | Horizontal/Vertical | €46.03 | |
 |
2RTF9 | 2 3/8" | 1" | PBT Plastic | 12V DC | 31.5 CFM | Polybutylene | Zero Friction Air | Horizontal/Vertical | €28.27 | |
 |
2RTH1 | 2 3/8" | 1" | PBT Plastic | 24V DC | 40 CFM | Polybutylene | Zero Friction Air | Horizontal/Vertical | €28.27 |
