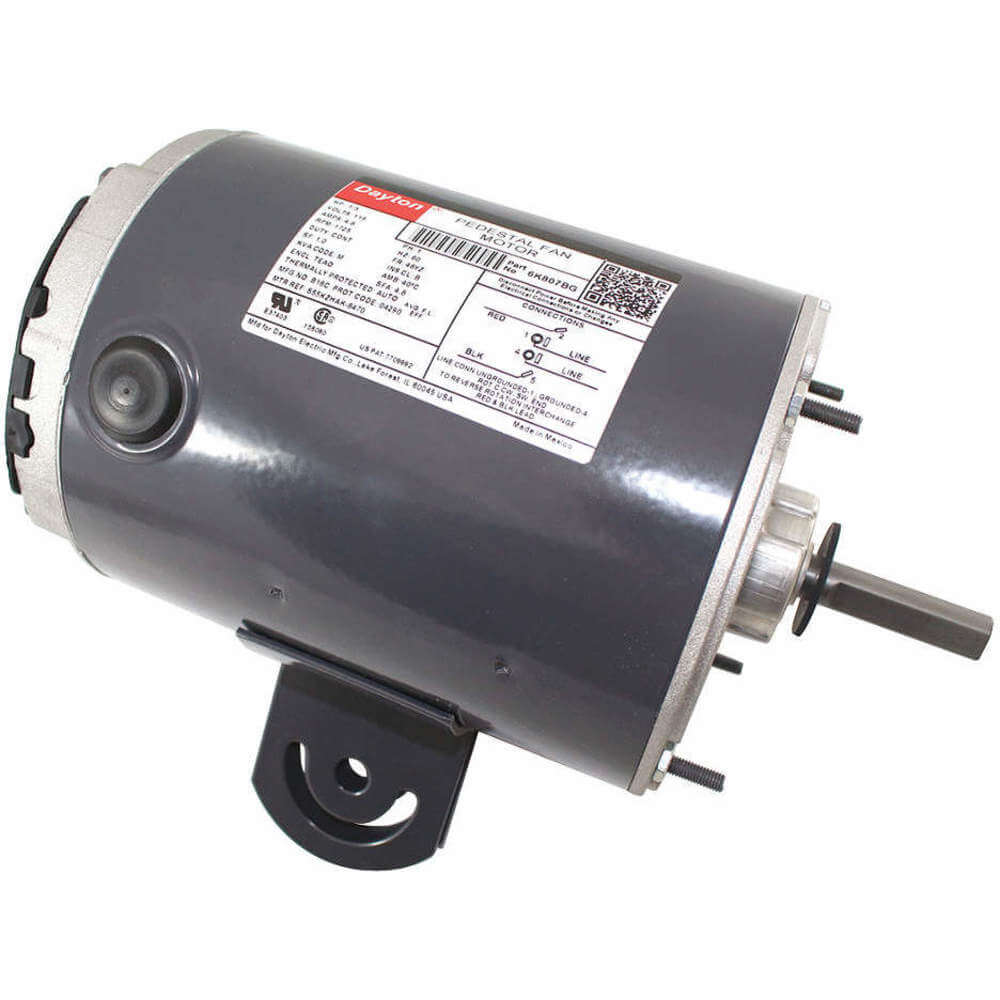

DAYTON 6K807 Motor 1/3 Hp Yoke
Get it by Thursday, Dec 25
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€288.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pedestal Fan Motor |
| 10 Ft. Cord And Pull Chain Switch | No |
| Ambient Temp. | 40°C |
| Application | Pedestal Fans |
| Bearing Type | Ball |
| Capacitor Included | No |
| Capacitor Required | No |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Frame | 48YZ |
| Frequency | 60 Hz |
| Full Load Amps | 4.8A |
| Hp | 1/3 hp |
| Includes | Shaft Slinger |
| Ins. Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Yoke |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Pedestal Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Type | Yoke |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 10 1/8" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2" |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 7.6 |
| Ship height (cm) | 23.62 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 20.07 |
| HS code | 8501404040 |
| Country of Origin | US |
Product Details:
- 10 Ft. Cord & Pull Chain Switch (No)
Product Variants
| Product | Model | Hp | Nameplate Rpm | Motor Enclosure Design | No. Of Speeds | Motor Shaft Rotation | Full Load Amps | Voltage | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3M469 | 1/3 hp | 1075 RPM | Totally Enclosed Air Over | 2 | Clockwise/Counter Clockwise | 5.3A | 115V AC | 1/2" | €350.02 | |
 |
3M504 | 1/4 hp | 1075 RPM | Totally Enclosed Air Over | 2 | Clockwise/Counter Clockwise | 3.1A | 115V AC | 1/2" | €284.12 | |
 |
3M505 | 1/2 hp | 1075 RPM | Totally Enclosed Air Over | 2 | Clockwise/Counter Clockwise | 7.2A | 115V AC | 5/8" | €359.12 | |
 |
4C354 | 1/4 hp | 1075/875 RPM | Totally Enclosed Air Over | 2 | Clockwise Shaft End | 2.8A | - | 1/2" | €387.78 | |
 |
4UX59 | 1/2 hp | 825 RPM | Totally Enclosed Air Over | 1 | Clockwise/Counter Clockwise | 6.4A | 115V AC | 5/8" | €436.02 | |
 |
4UX60 | 1/4 hp | 1075 RPM | Open Air Over | 2 | Clockwise Shaft End | 3.1A | 115V AC | 1/2" | €362.48 | |
 |
4UX61 | 1/4 hp | 1075 RPM | Totally Enclosed Air Over | 2 | Clockwise Shaft End | 3.1A | 115V AC | 1/2" | €348.37 |
