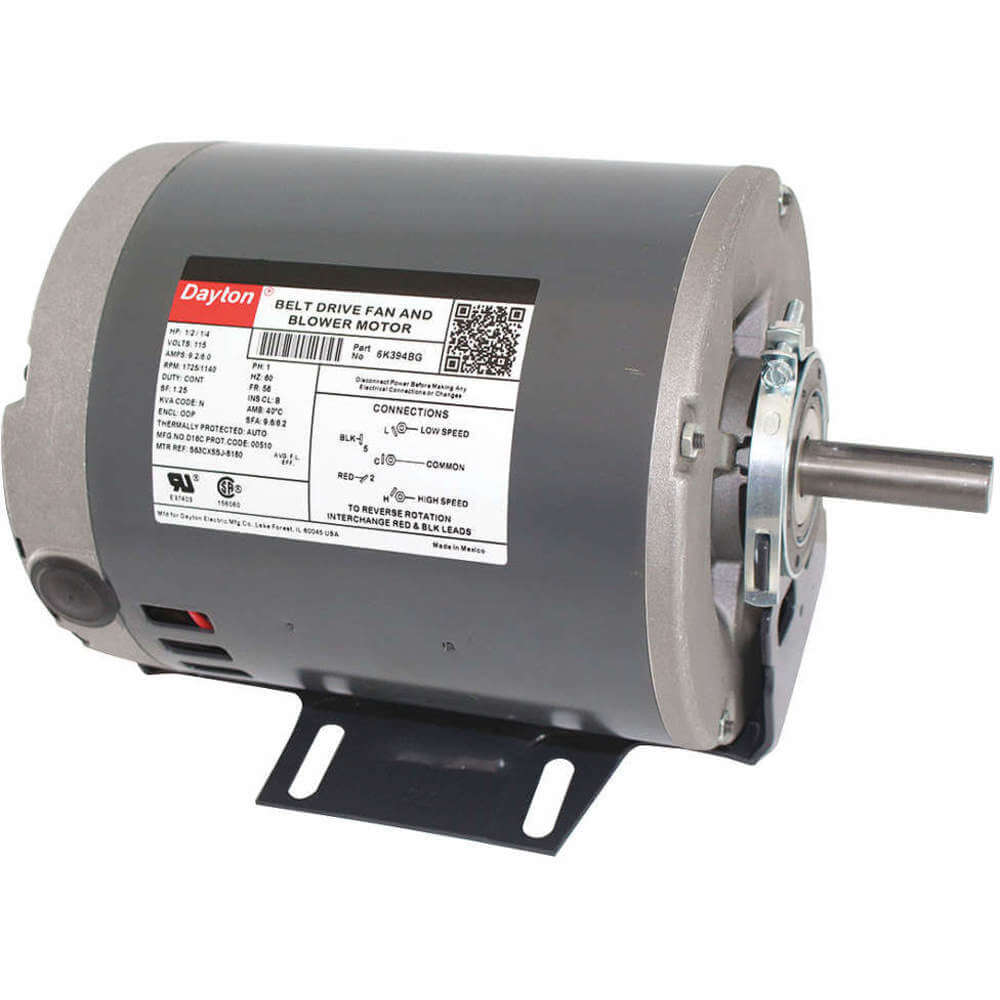

DAYTON 6K394 Motor 1/2 1/4 Hp 1725/1140 Rpm 115 V
Get it by Tuesday, Dec 23
10.00% off
€536.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Belt Drive Motor |
| Ambient Temp. | 104°F |
| Application | HVAC/R |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 61.4% |
| Footnotes | 66 |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 9.2/6A |
| Hp | 1/2 hp, 1/4 hp |
| Hz | 60 Hz |
| Includes | 3/16 x 3/16 x 1-1/4" Shaft Key |
| Insulation Class | Class B |
| Length Less Shaft | 10 1/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Split Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725/1140 RPM |
| No. Of Speeds | 2 |
| Nominal Efficiency | 61.4% |
| Number Of Speeds | 2 |
| Overall Length | 10 3/4" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 8 7/16" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 19.56 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 20.07 |
| HS code | 8501404040 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Mounting Type | Service Factor | Motor Type | Nameplate Rpm | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AGG3 | 115/208-230V | 1/2 hp | 7.2/3.6A | Cradle Base | 1.25 | Capacitor Start | 1725 RPM | 56 | €377.28 | |
 |
1D170 | 115V AC | 3/4 hp | 11.3A | Cradle Base | 1.25 | Split Phase | 1725 RPM | 56H | €525.69 | |
 |
24C180 | 115/208-230V | 1/2 hp | 7.7/3.8-3.7A | Cradle Base | 1.25 | Capacitor Start | 1725 RPM | 56H | €525.68 | |
|
24C181 | 115/208-230V | 3/4 hp | 9.8/5.2-5A | Cradle Base | 1.25 | Capacitor Start | 1725 RPM | 56H | €537.49 | |
 |
24C182 | 115/208-230V | 1 hp | 13.6/6.9A | Cradle Base | 1.15 | Capacitor Start | 1725 RPM | 56H | €757.89 | |
 |
3K199 | 115/230V AC | 1/2 hp | 7.7/3.8A | Cradle Base | 1.25 | Capacitor Start | 1725 RPM | 56 | €557.15 | |
 |
3K617BG | 115/208-230V | 3/4 hp | 11.2/5.6A | Cradle Base | 1.25 | Split Phase | 1725 RPM | 56H | €448.78 |
